Door Window Glass

  1. Loosen, but do not remove, the window regulator-to-front door inner panel. See Fig 1 .
  2. Raise the front door glass to full up position and tighten nuts to specification. See TORQUE SPECIFICATIONS  .
  3. Loosen, but do not remove, rear glass retainer bolt.
  4. Move glass to rearward position and tighten retainer bolt to specification. See TORQUE SPECIFICATIONS  .

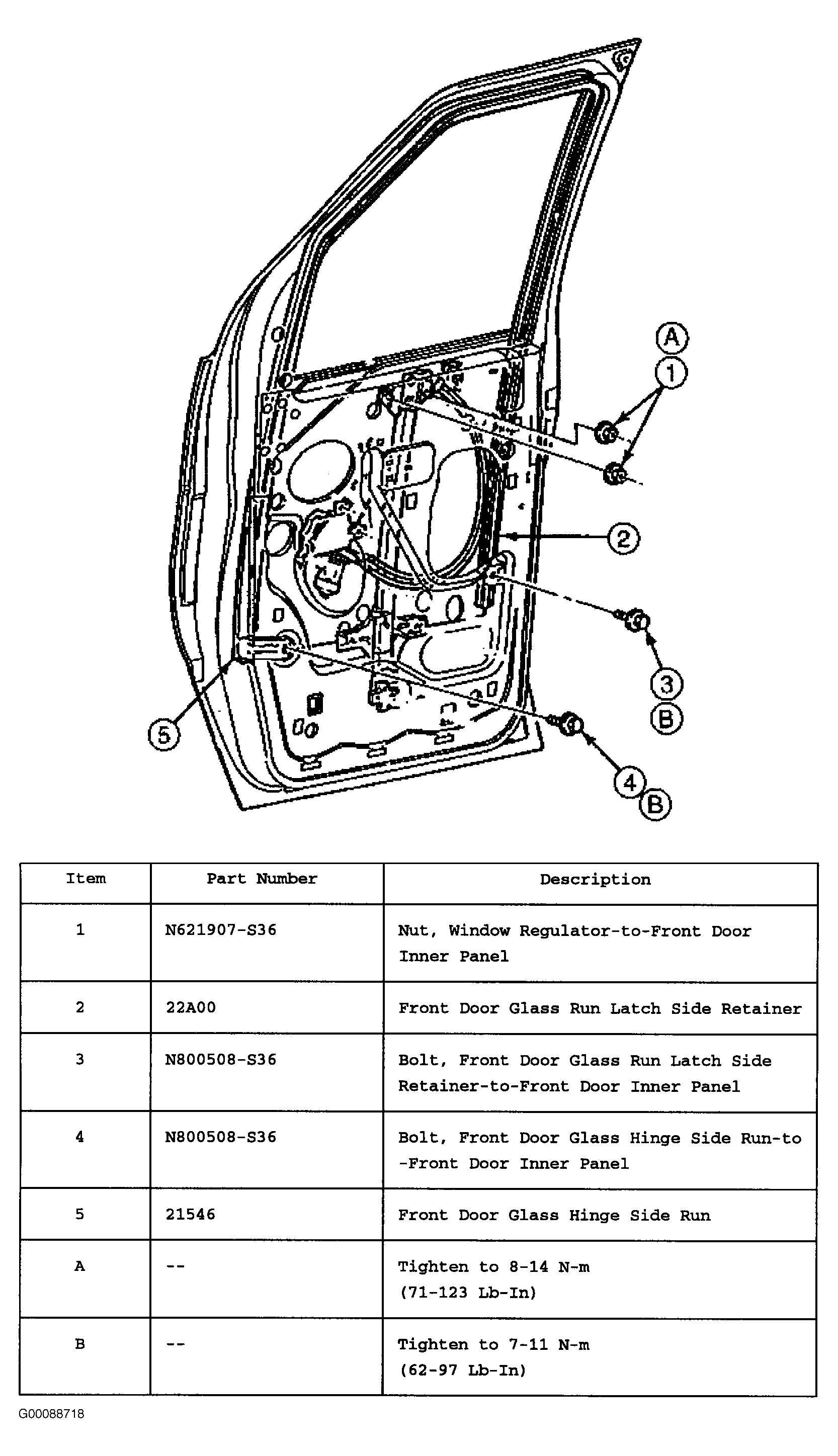

Fig 1: Adjusting Door Window Glass
G00088718Courtesy of FORD MOTOR CO.
