E3: Continuity Check, Switch B

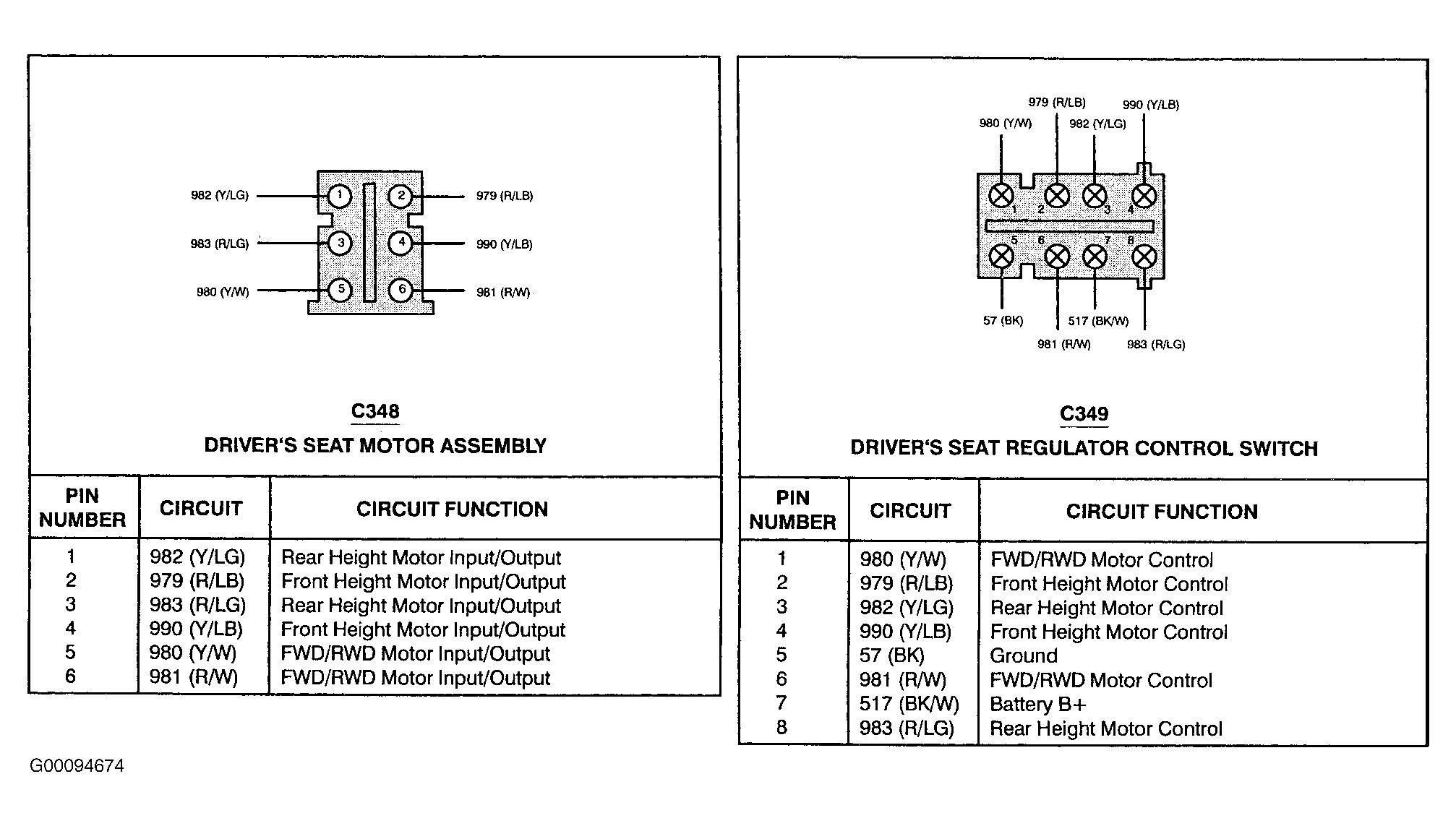

Depress and hold switch-button B. Attach test lead to terminal No. 7. With the other test lead, check for voltage continuity between terminals No. 2 and 1. See Figure . See WIRING DIAGRAMS .
Depress and hold switch-button B. Attach test lead to terminal No. 7. With the other test lead, check for voltage continuity between terminals No. 2 and 1. See Figure . See WIRING DIAGRAMS .
