Connector Identification

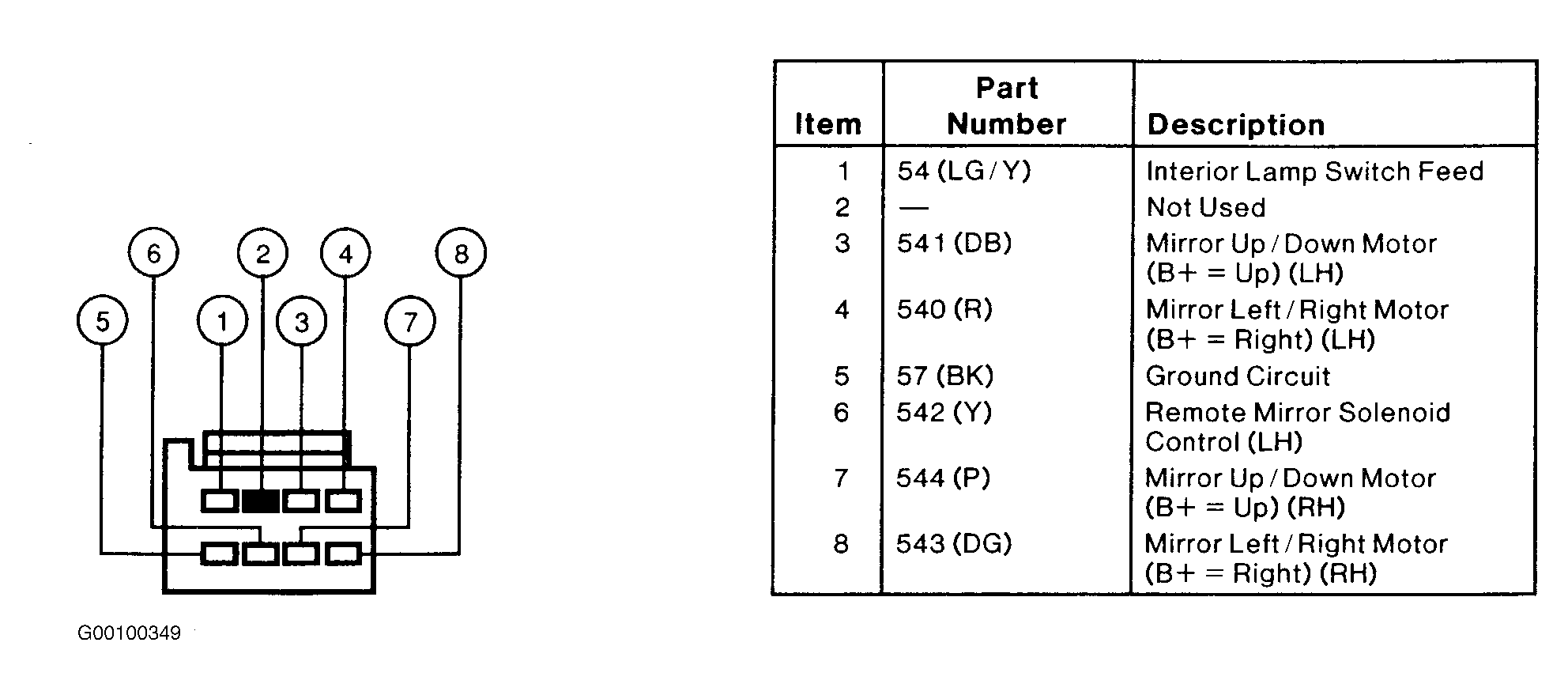

Fig 1: Identifying Power Mirror Switch Terminals (Econoline)
G00100349Courtesy of FORD MOTOR CO.

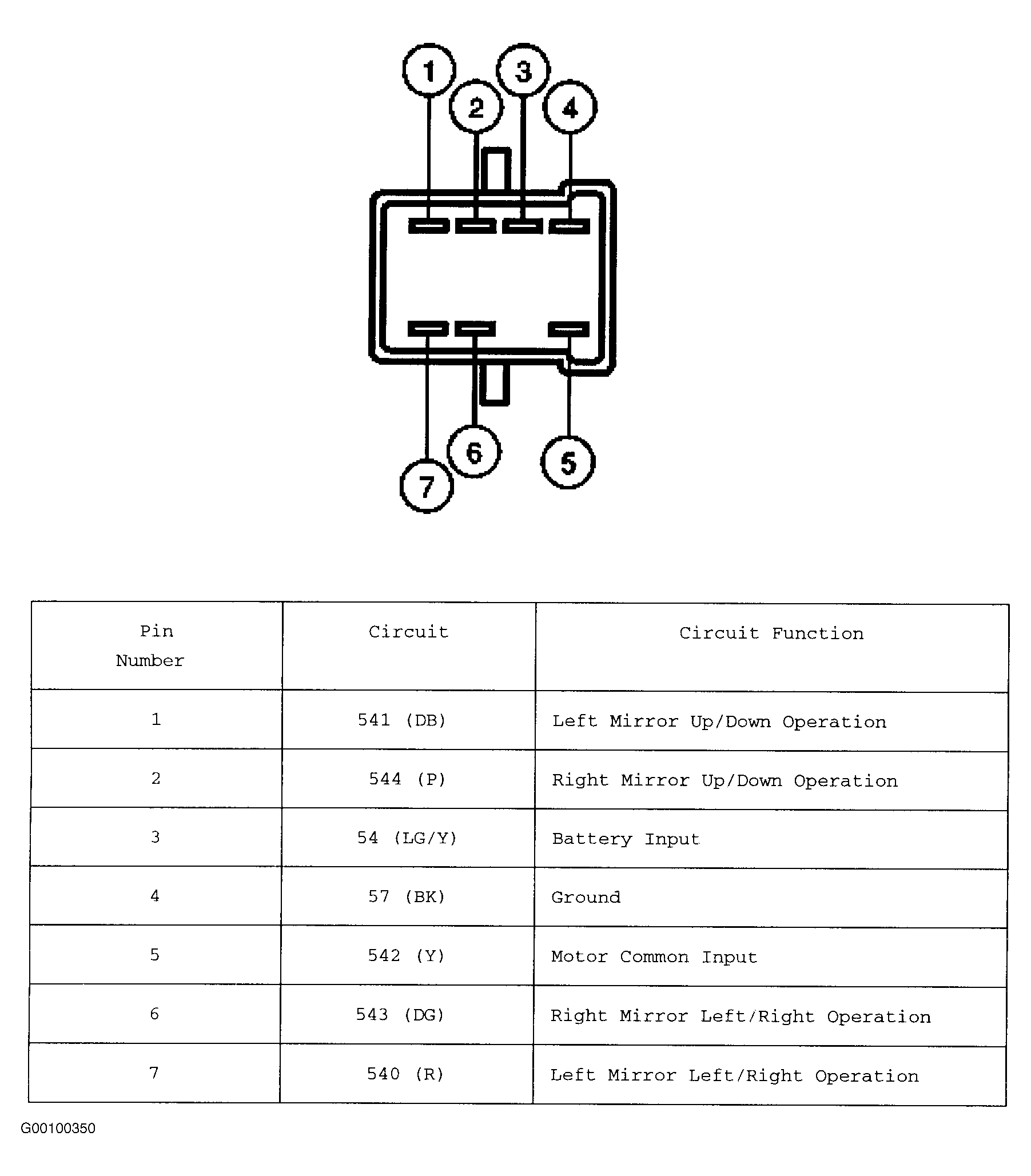

Fig 2: Identifying Power Mirror Switch Terminals (RV Conversion Van)
G00100350Courtesy of FORD MOTOR CO.
