Mirror Control Switch
Mirror Control Switch
Refer to
Fig 1
for removal and installation procedure.

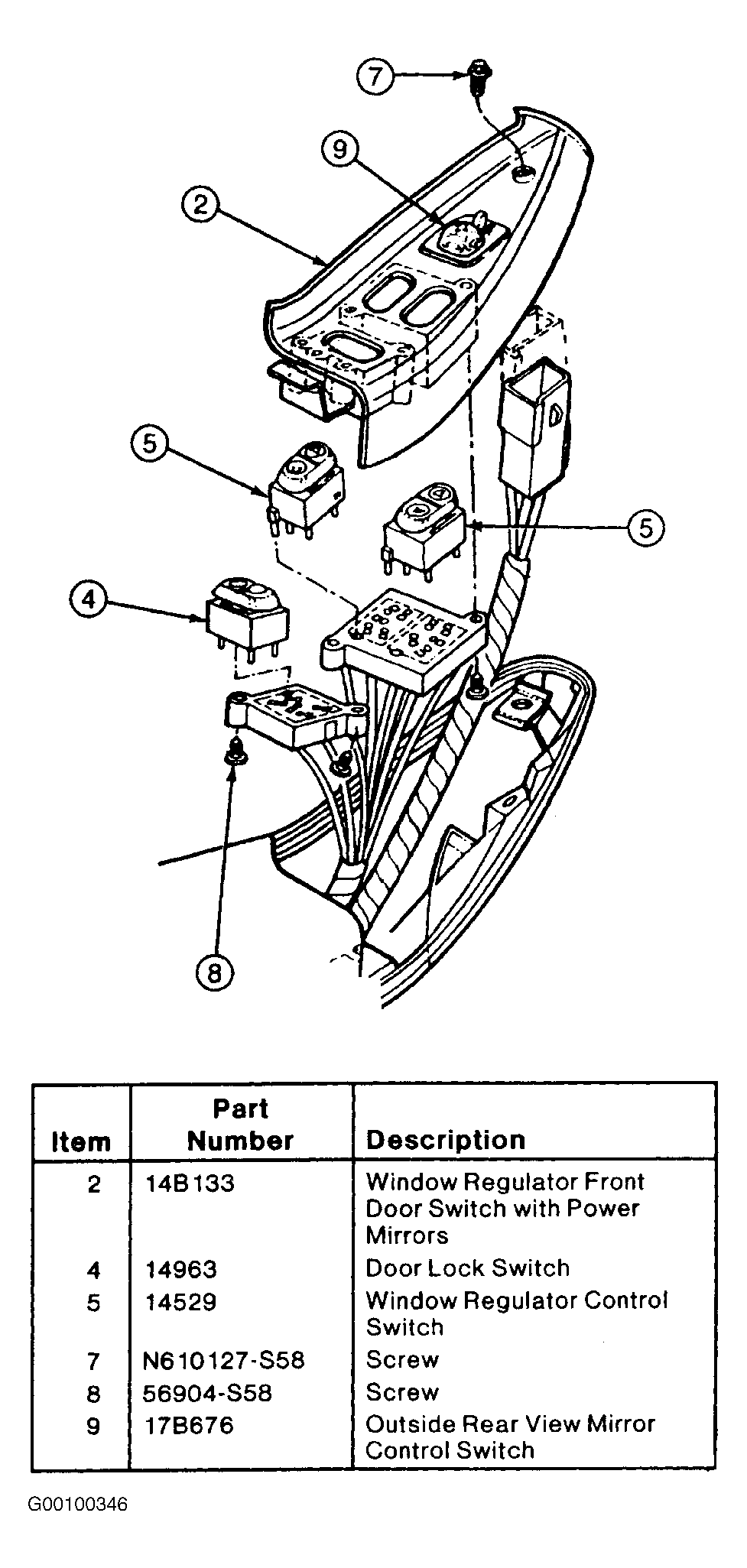

Fig 1: Removing Power Mirror Switch
Courtesy of FORD MOTOR CO.
