All Others

Ensure vehicle is level. Check lubricant level at filler plug hole on side of transmission. Lubricant should be within 1/4" of filler hole bottom. Add lubricant as necessary to correct fluid level.

Fig 1: Checking Fluid Level (Aspire)
G92H12861Courtesy of FORD MOTOR CO.

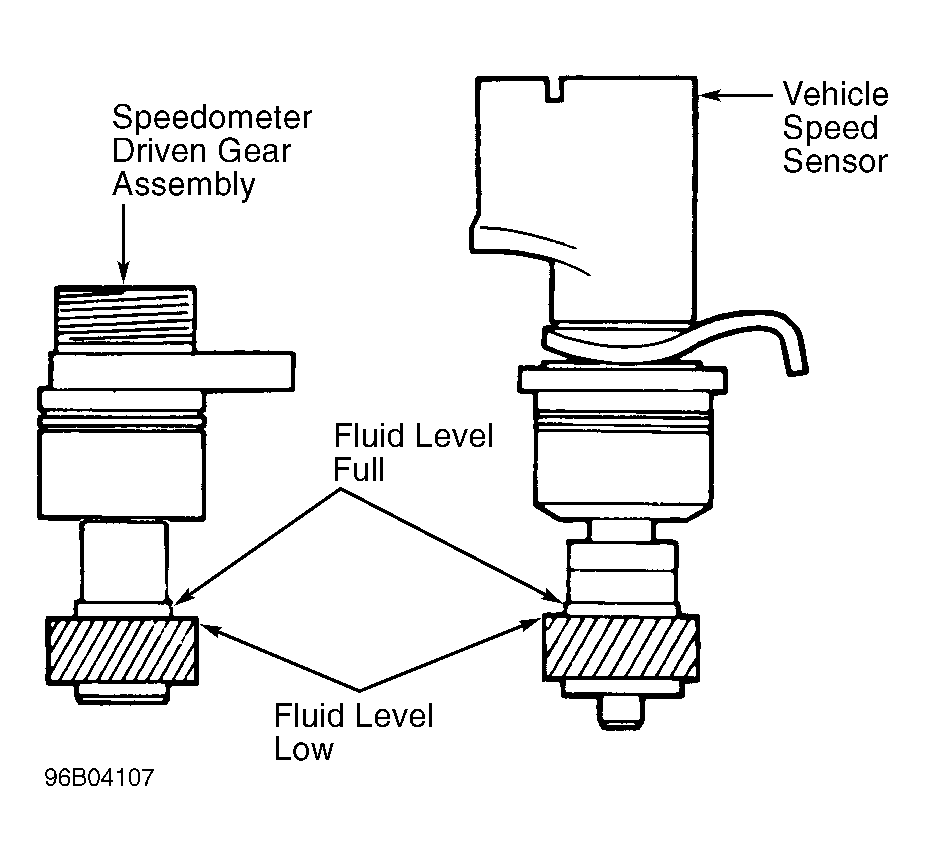

Fig 2: Checking Fluid Level (Escort & Tracer)
G96B04107Courtesy of FORD MOTOR CO.
