Low/High Fan Control (LFC/HFC) Relays: Notes

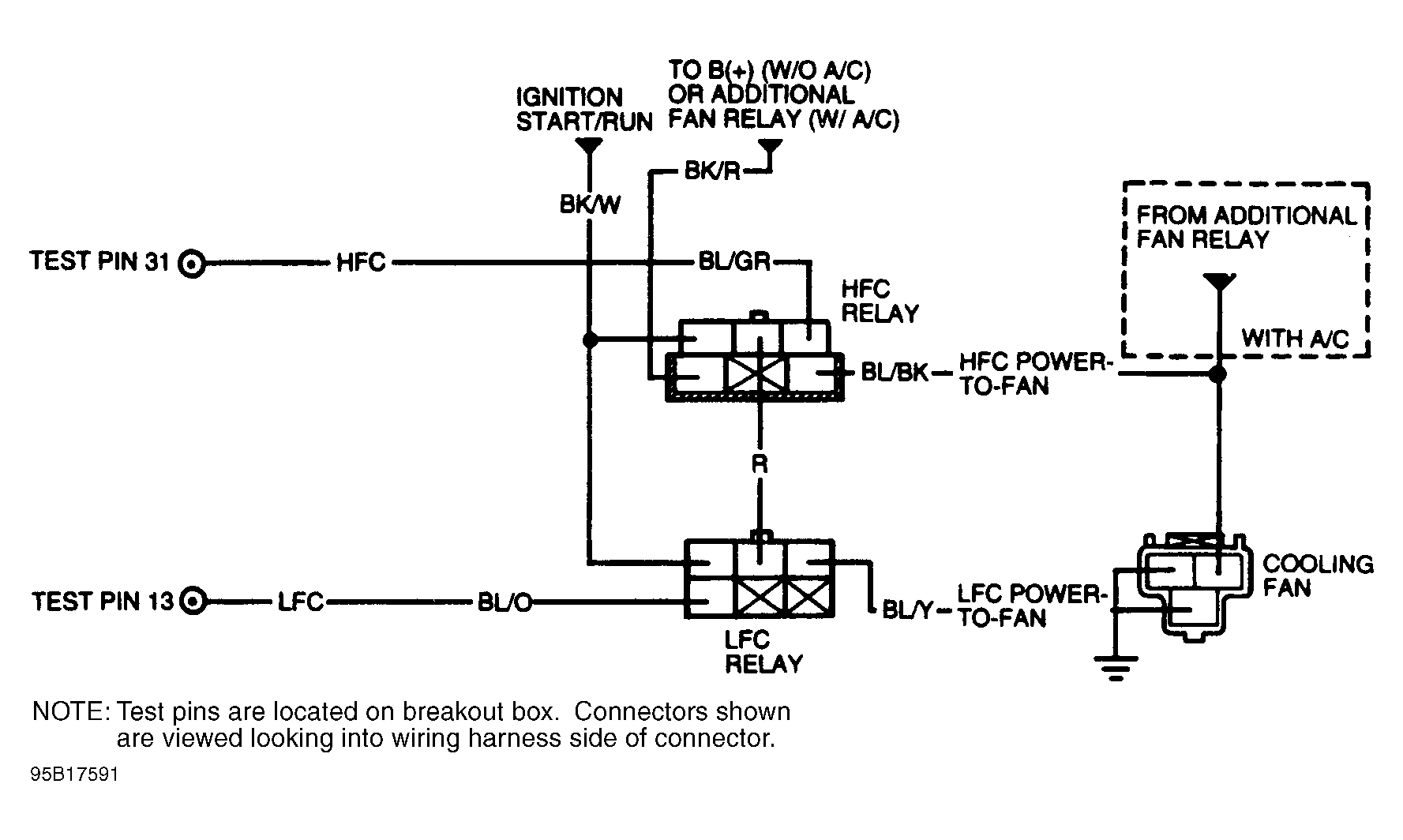

NOTE: For LFC/HFC circuit identification, See Figure or wiring diagrams in WIRING DIAGRAMS.
