Separator Code

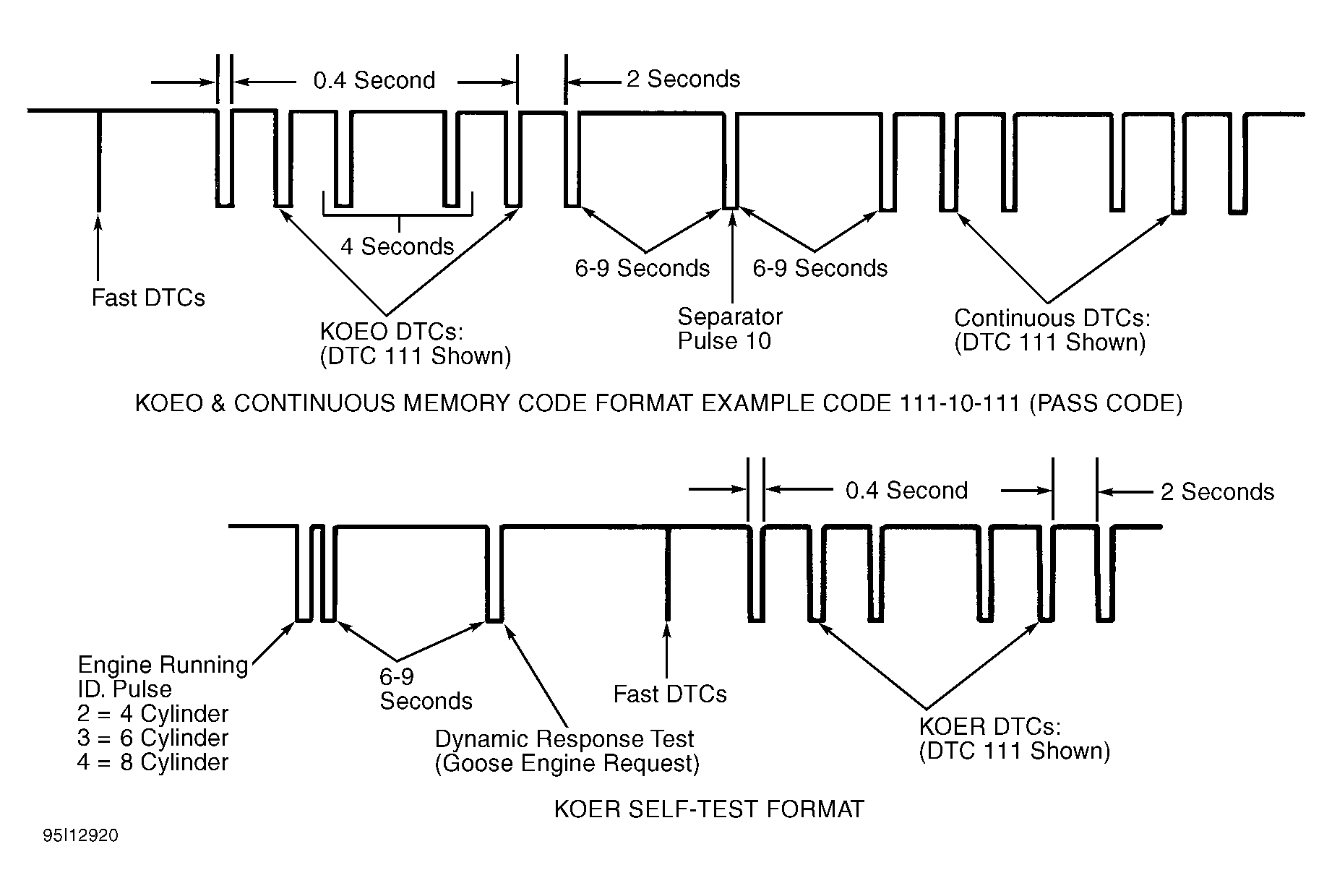

Single 1/2-second separator pulse is issued 6-9 seconds after last KOEO code. Continuous Memory Codes (intermittent faults) are then displayed 6-9 seconds after 1/2-second separator code. See Figure. Some digital test equipment may display separator code as "10" instead of "1".
