Programmable Memory Seat (Explorer Limited)

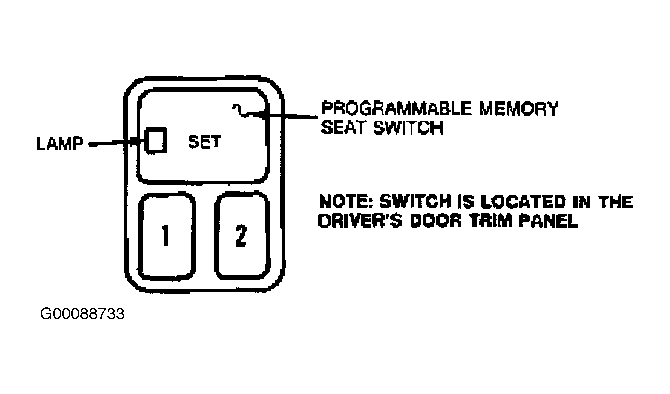

This system allows automatic positioning of the driver's seat to three programmable positions. To program position 1, move driver's seat to desired position using seat regulator control switch. Depress the set button. Within five seconds (before the LED goes out) depress button 1. To program position 2, repeat the previous procedure using button 2. To program position 3, repeat the previous procedure but depress buttons 1 and 2 simultaneously. See Fig 1 .
To recall position 1, depress button 1. To recall position 2, depress button 2. To recall position 3, depress buttons 1 and 2 simultaneously. See Fig 1 .
A position can only be recalled when the transmission selector is in PARK or NEUTRAL. A position may be programmed at any time.
When power is first applied to the vehicle, the current position of the driver's seat is stored in all three memory locations.
The seat regulator control switches are wired through the memory seat module. If the module is not installed, or not functional, the memory or seat regulator control switch will not work.
Sensors on the front seat track determine movement. If these sensors are not connected, the memory or seat regulator control will not work.
