Low/High Fan Control (LFC/HFC) Relays: Notes
NOTE:

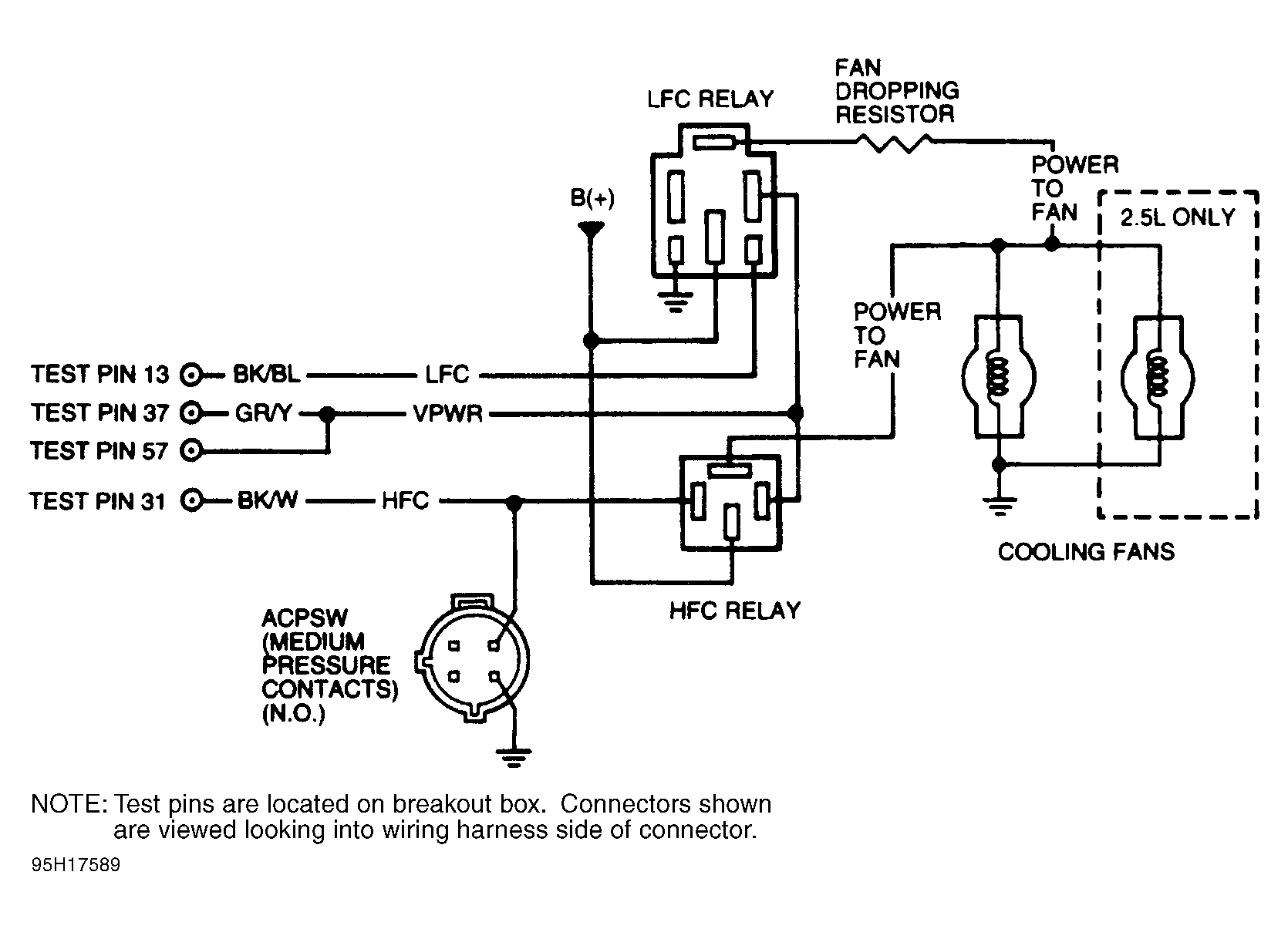

For LFC/HFC circuit identification, see
Figure
or
Figure
in
WIRING DIAGRAM
.
