Connector Identification

Fig 1: Identifying Cruise Control Servo Connector Terminals
G95E12561Courtesy of FORD MOTOR CO.

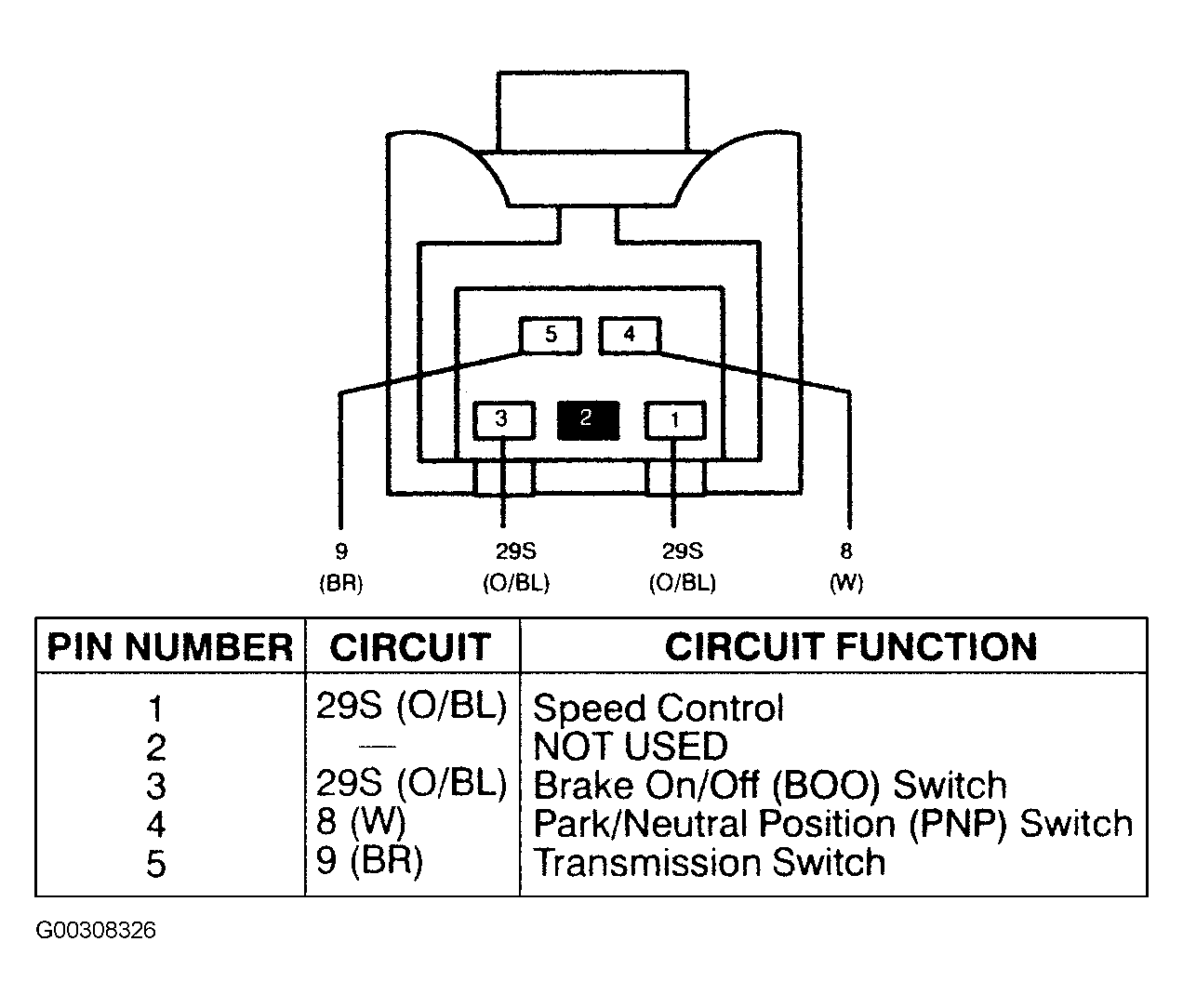

Fig 2: Identifying Clutch Switch Connector Terminals
G00308326Courtesy of FORD MOTOR CO.

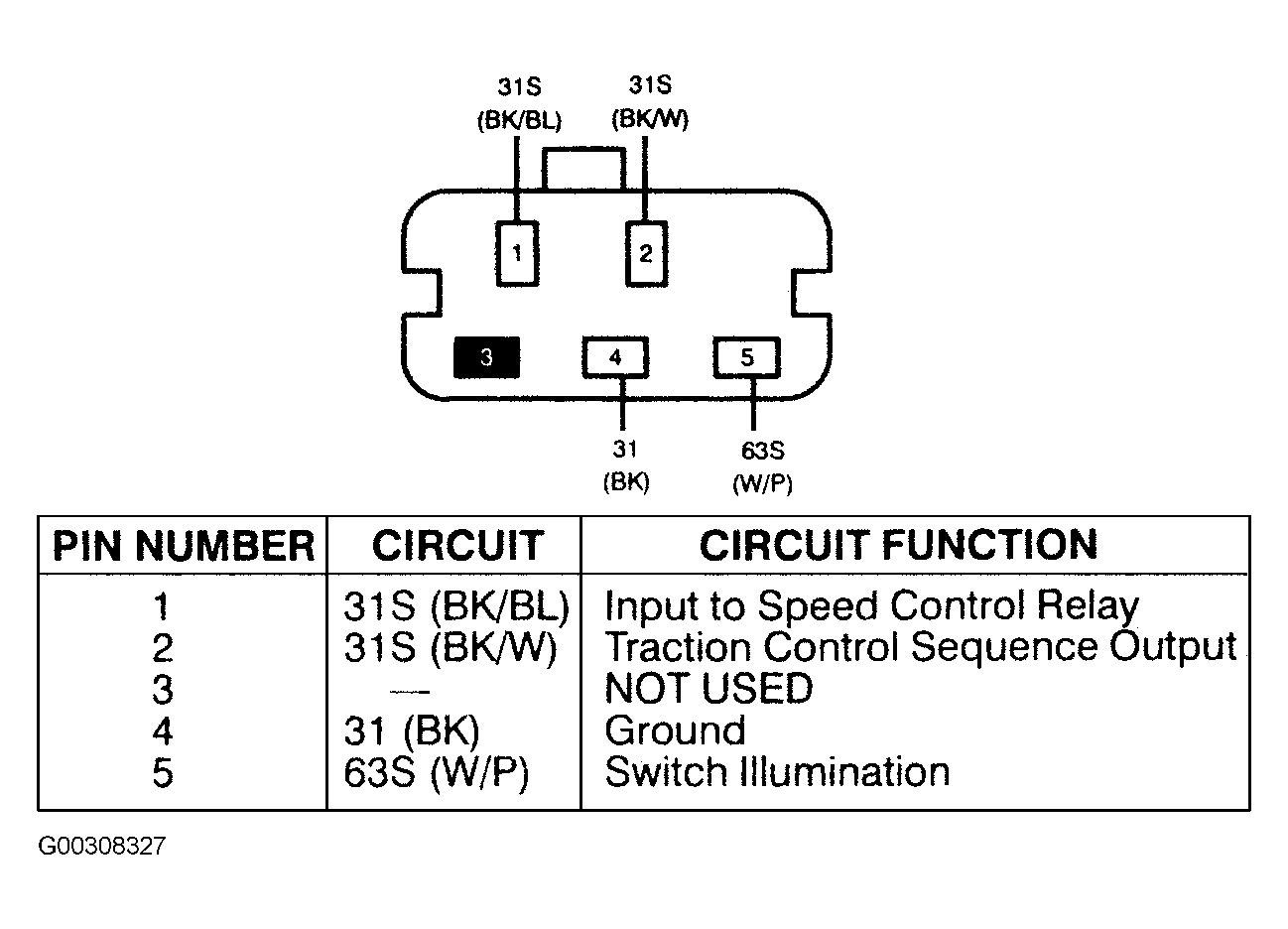

Fig 3: Identifying Traction Control Disable Switch Connector Terminals
G00308327Courtesy of FORD MOTOR CO.
