Front Window Regulator: Removal

  1. Remove front door trim panel and front door trim shield, if equipped. See DOOR TRIM PANEL  .
  2. Support front door window glass in the full up position.

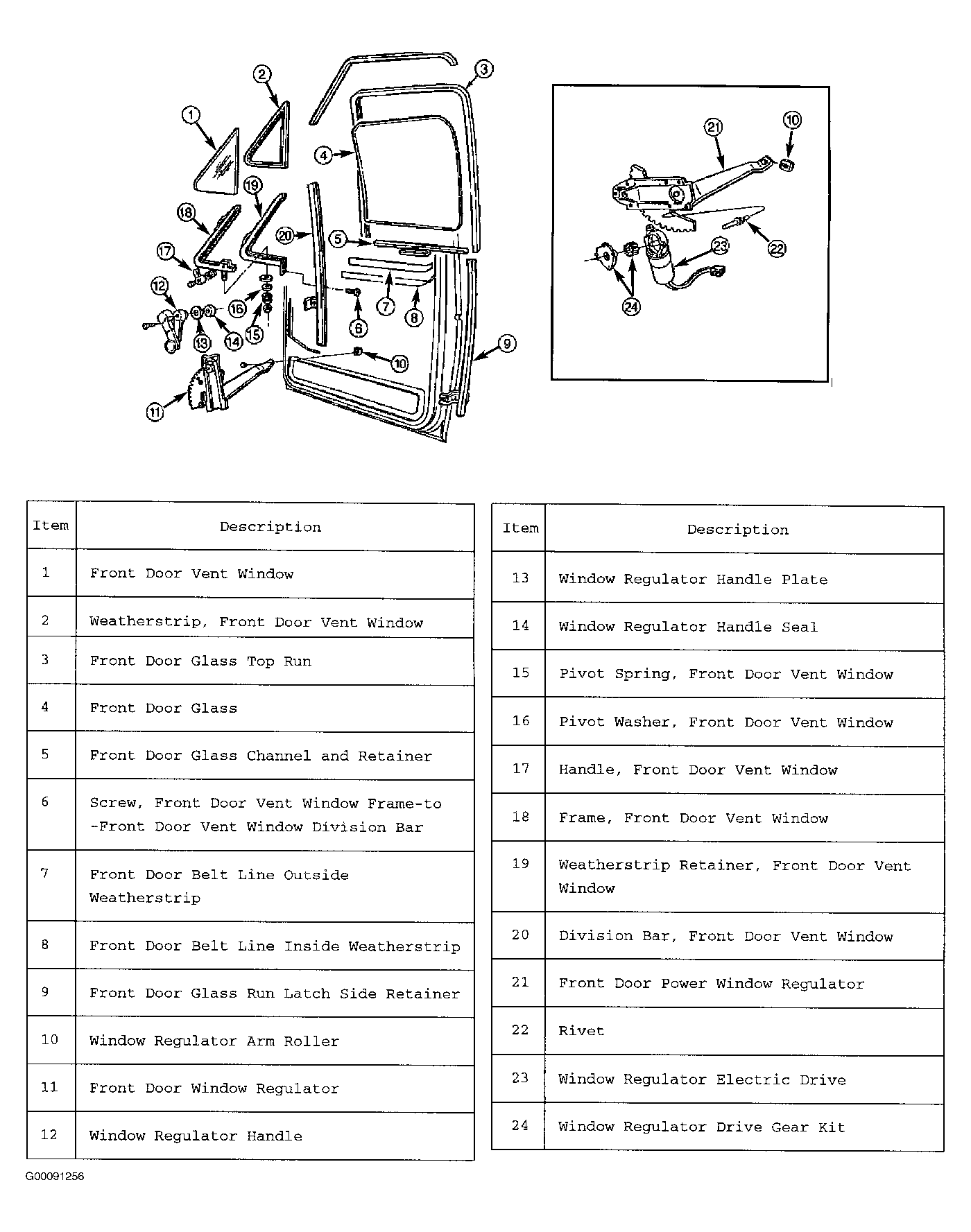

  3. Remove center pin rivets attaching front door window regulator with drift punch. See Figure .
  4. Drill head from each rivet using a 6.35 mm (1/4-inch) drill and remove rivet. Be careful not to damage sheet metal holes during drilling.
  5. Disengage window regulator arm roller from front door glass channel and retainer and remove the front door window regulator.
