Wiring Diagrams

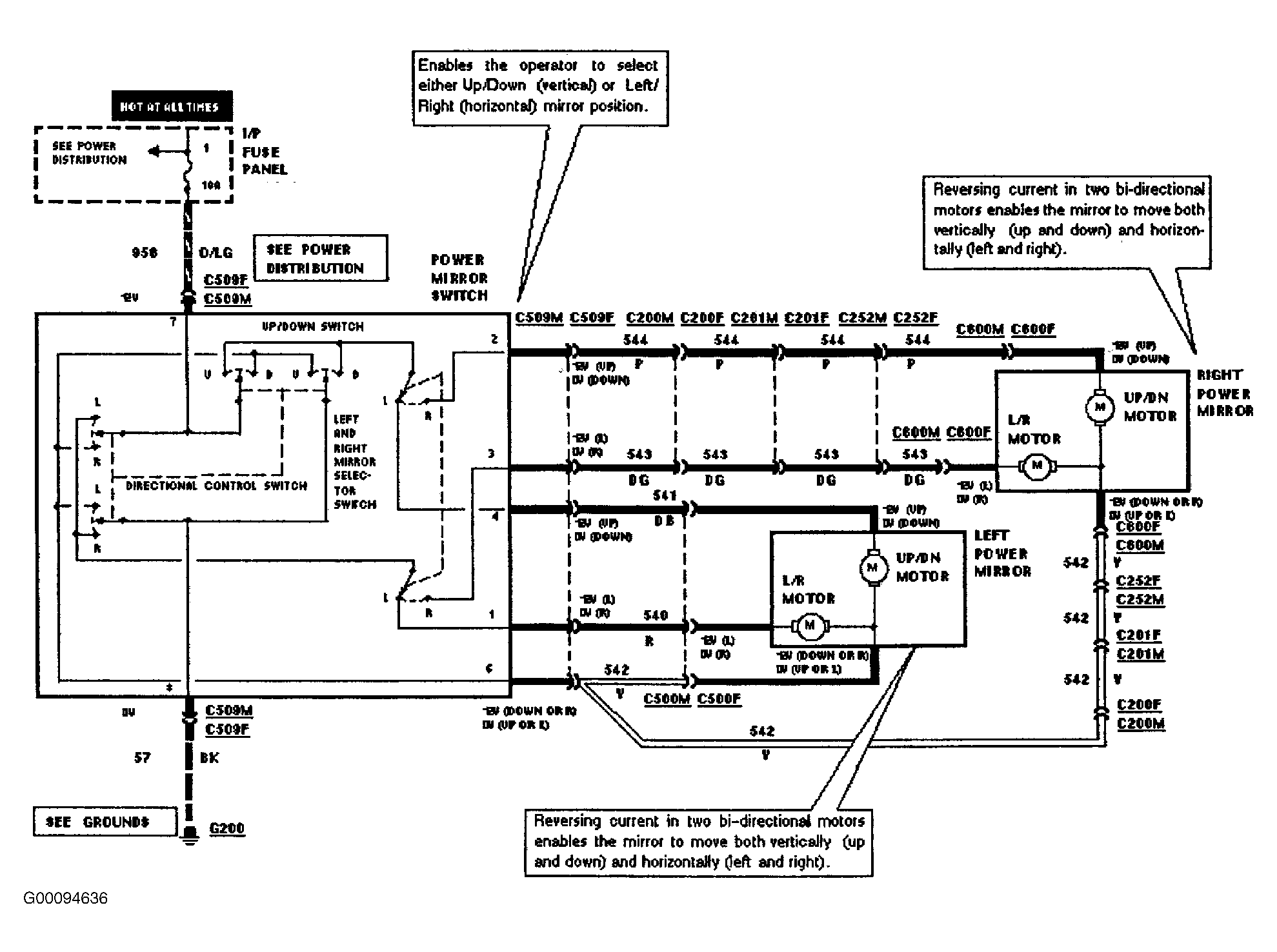

Fig 1: Power Mirrors Wiring Diagram (Aerostar)
Courtesy of FORD MOTOR CO.

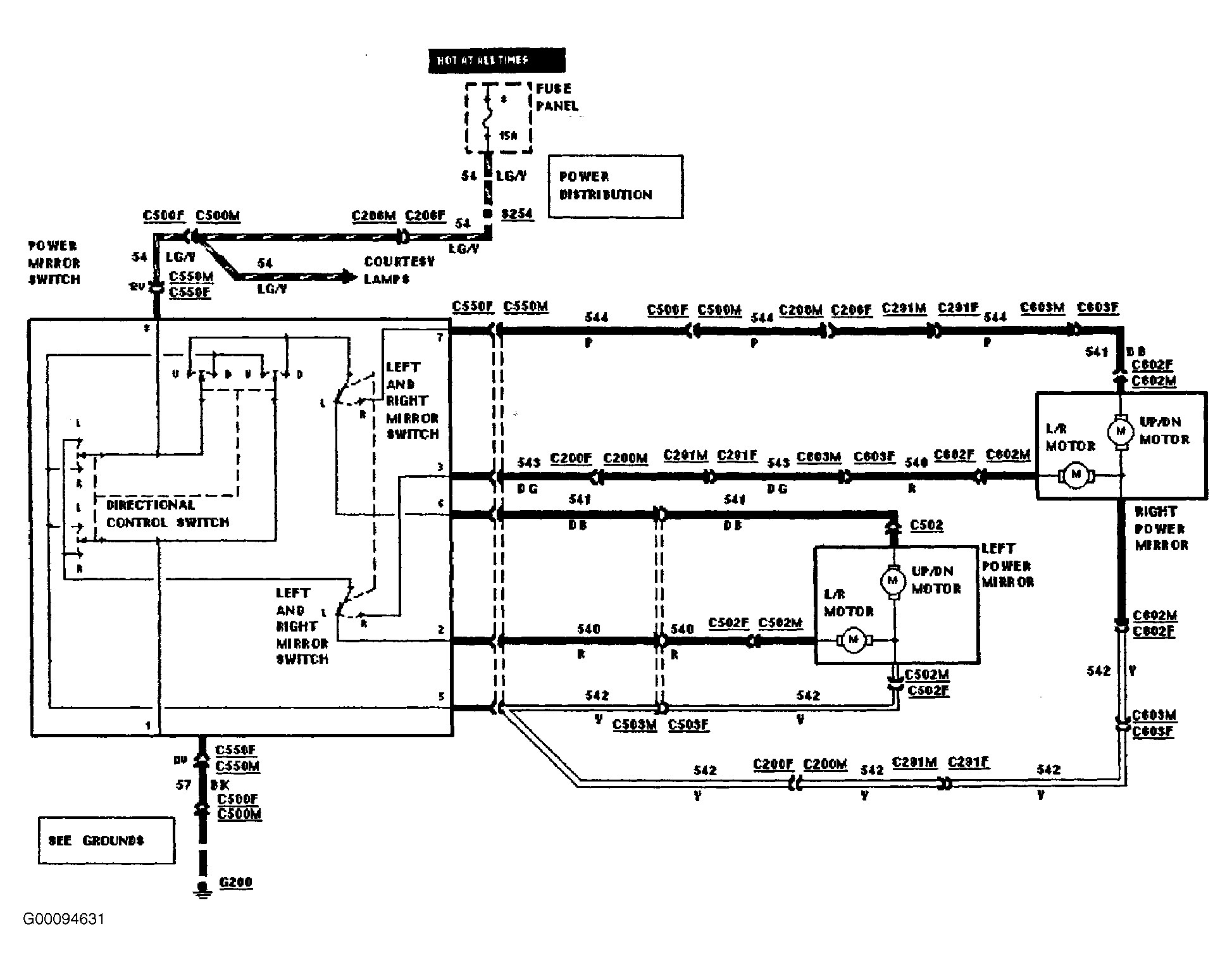

Fig 2: Power Mirrors Wiring Diagram (Explorer)
Courtesy of FORD MOTOR CO.
Fig 3: Power Mirrors Wiring Diagram (Ranger)
Courtesy of FORD MOTOR CO.

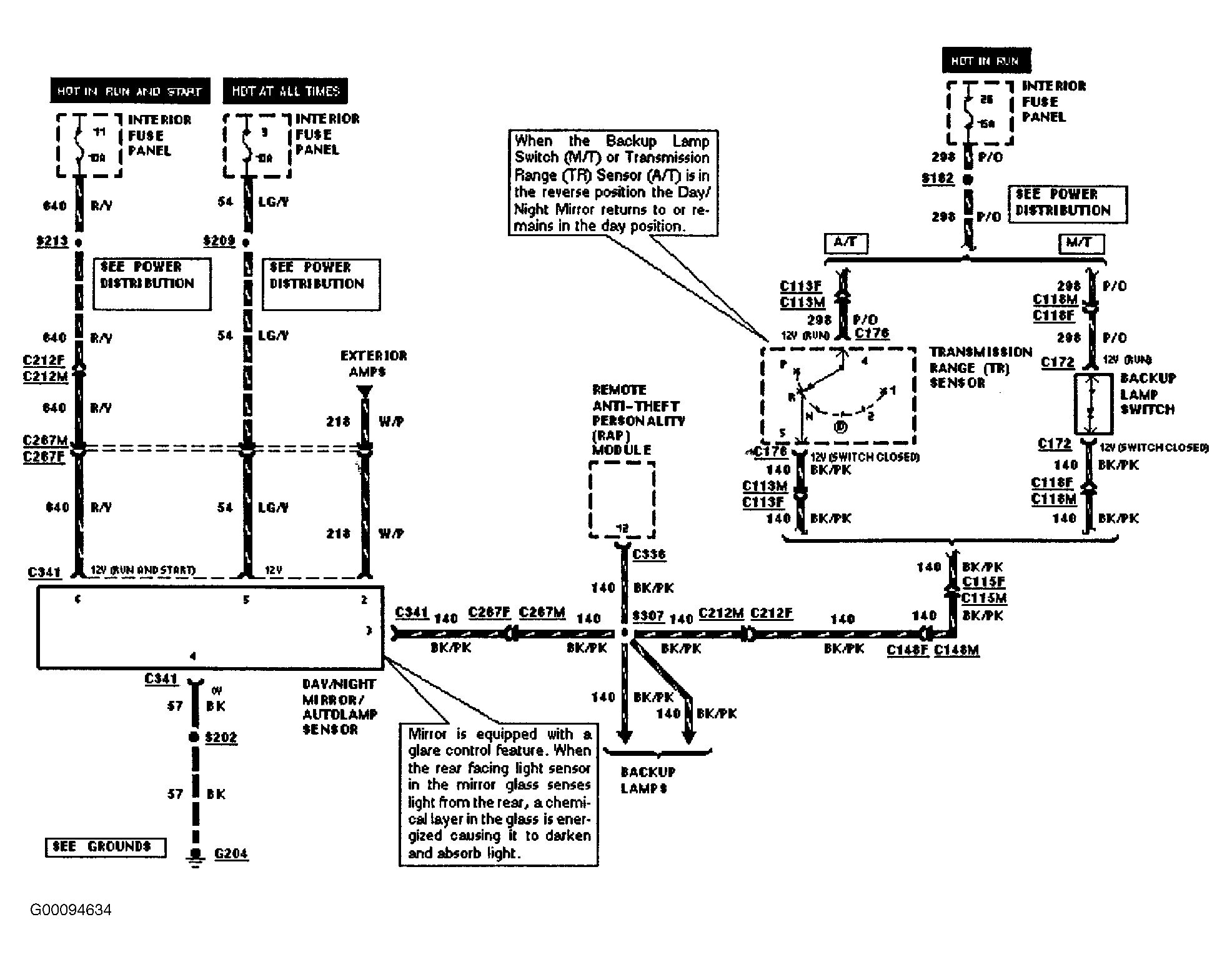

Fig 4: Electrochromatic Dimming Mirror Wiring Diagram (Explorer)
Courtesy of FORD MOTOR CO.

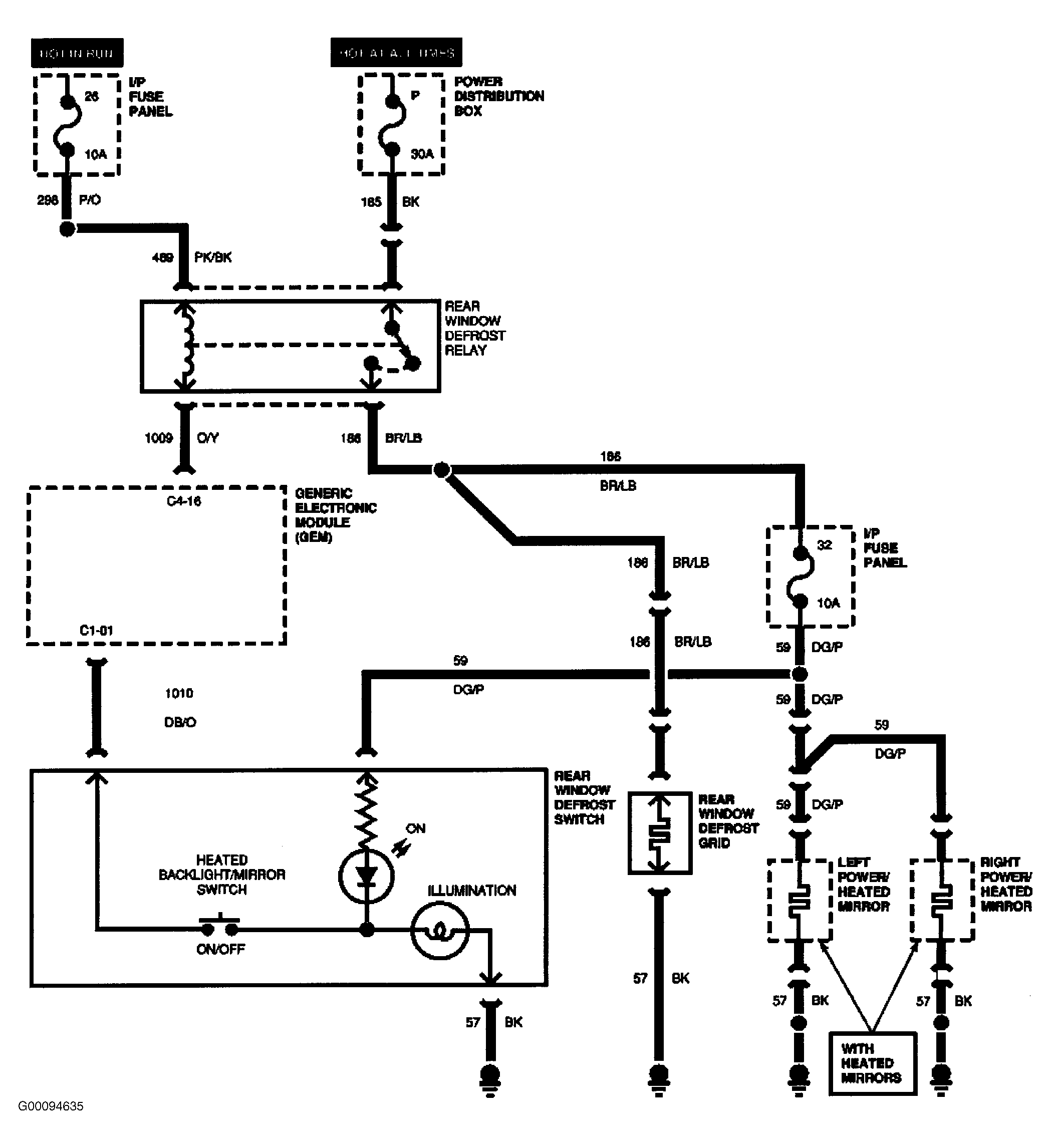

Fig 5: Heated Outside Mirror Wiring Diagram (Explorer)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
