Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|

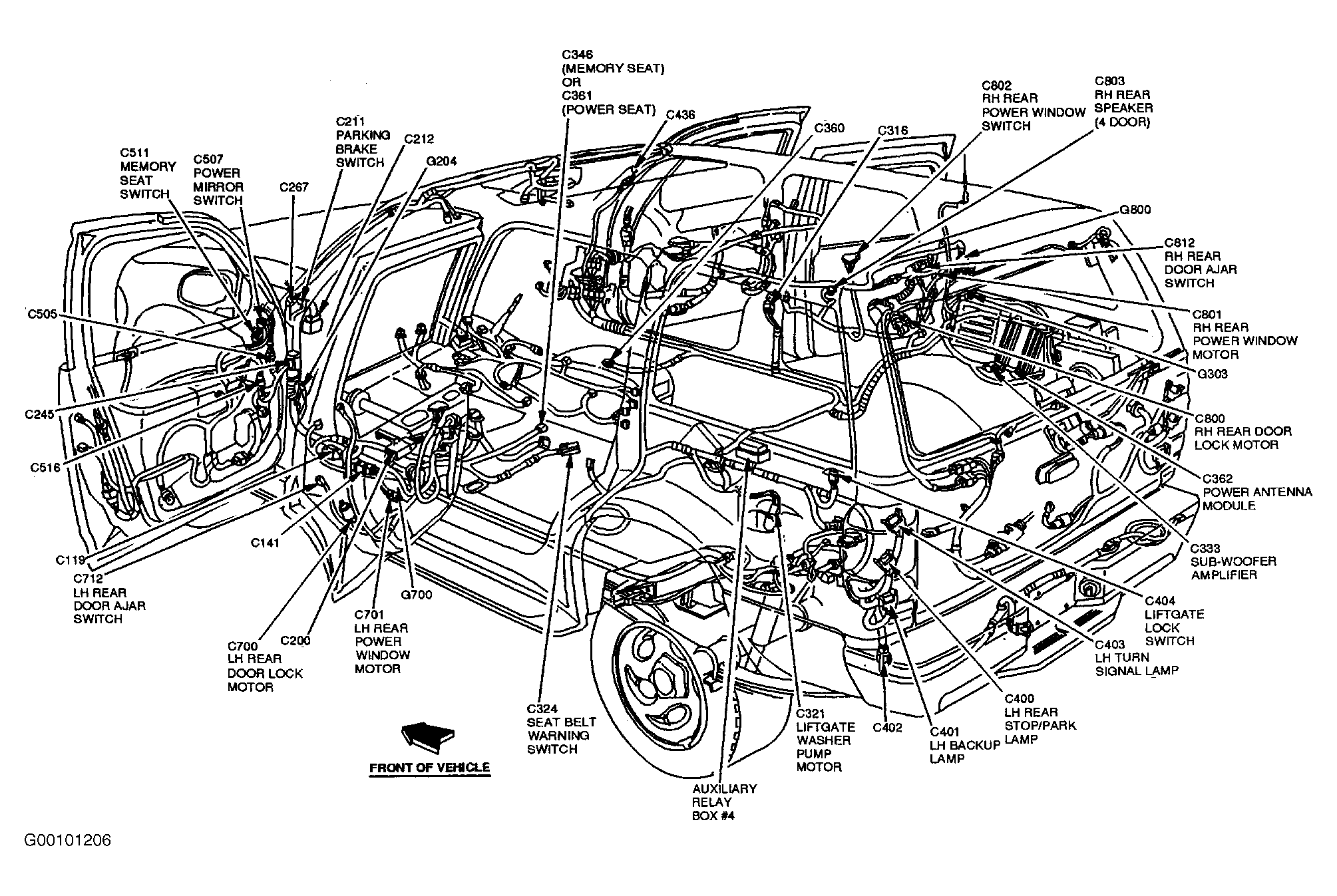

| Auxiliary Relay Box No. 4 (Explorer) | Left Rear Of Vehicle, Above Wheelwell. See Fig 4 . |

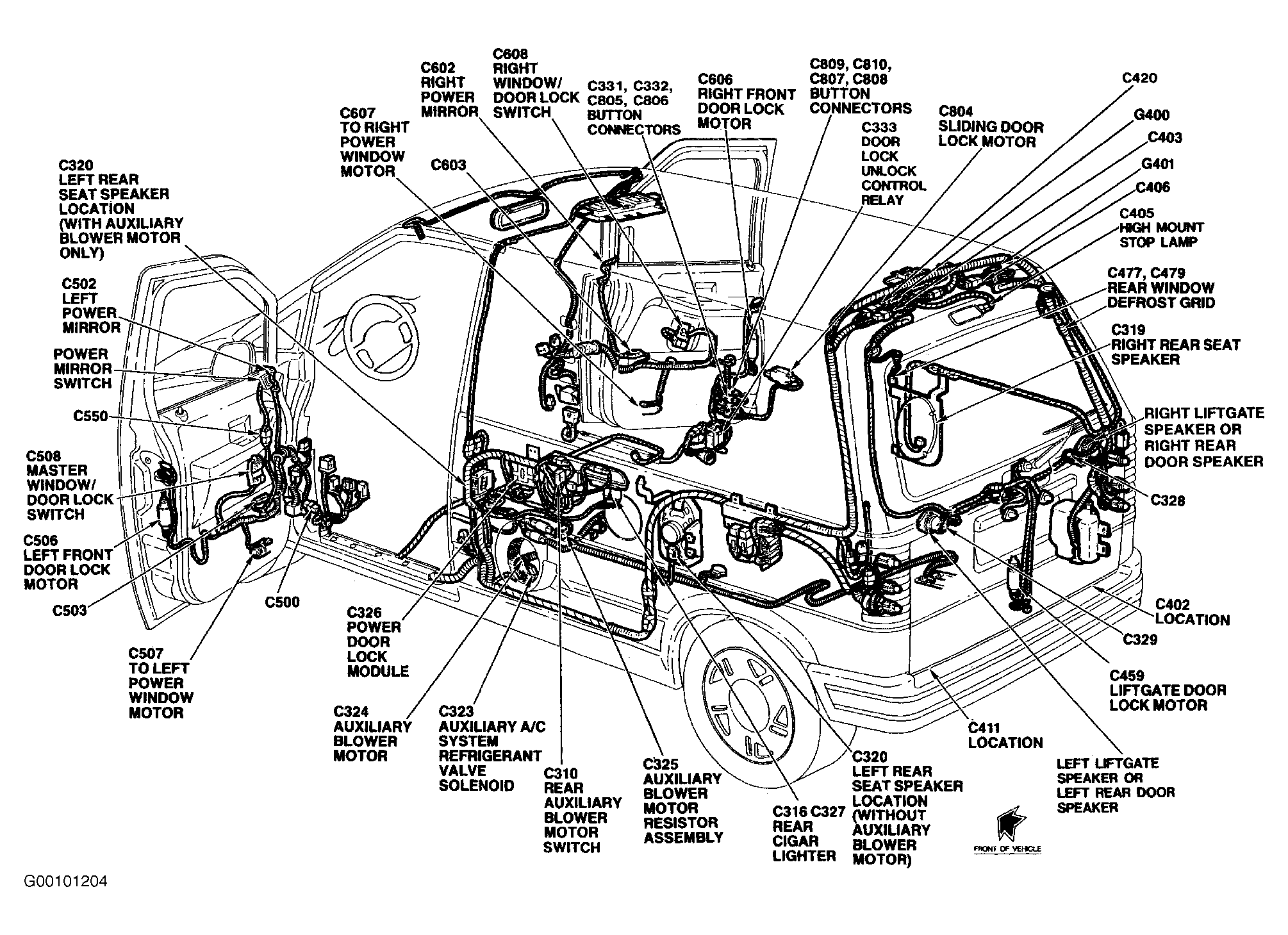

| Door Lock/Unlock Control Relay (Aerostar) | In Bottom Of Right Hand "B" Pillar. See Fig 1 . |

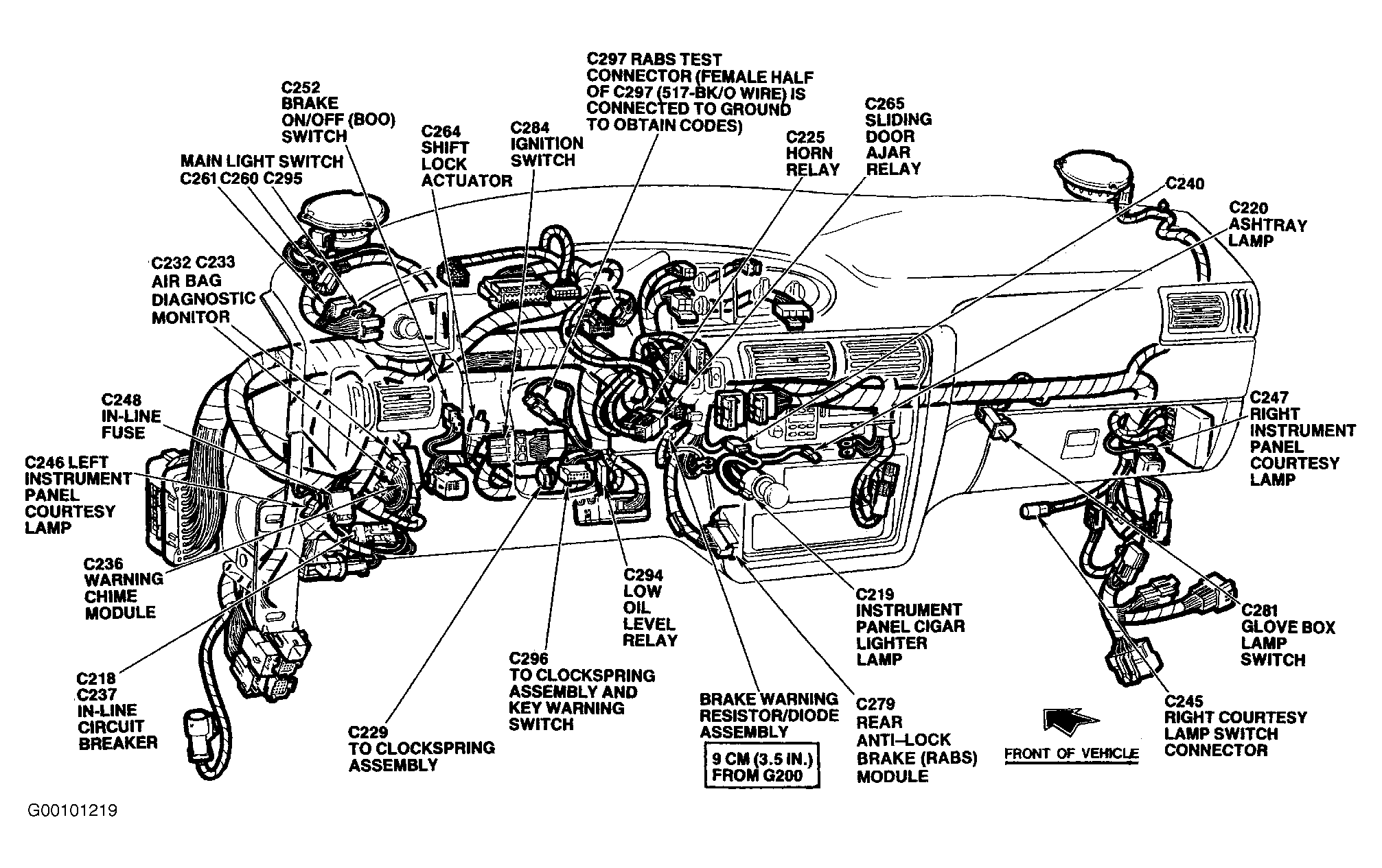

| Door Lock In-Line Fuse, C248 (Aerostar) | Behind Left Side Of Instrument Panel. See Fig 2 . |

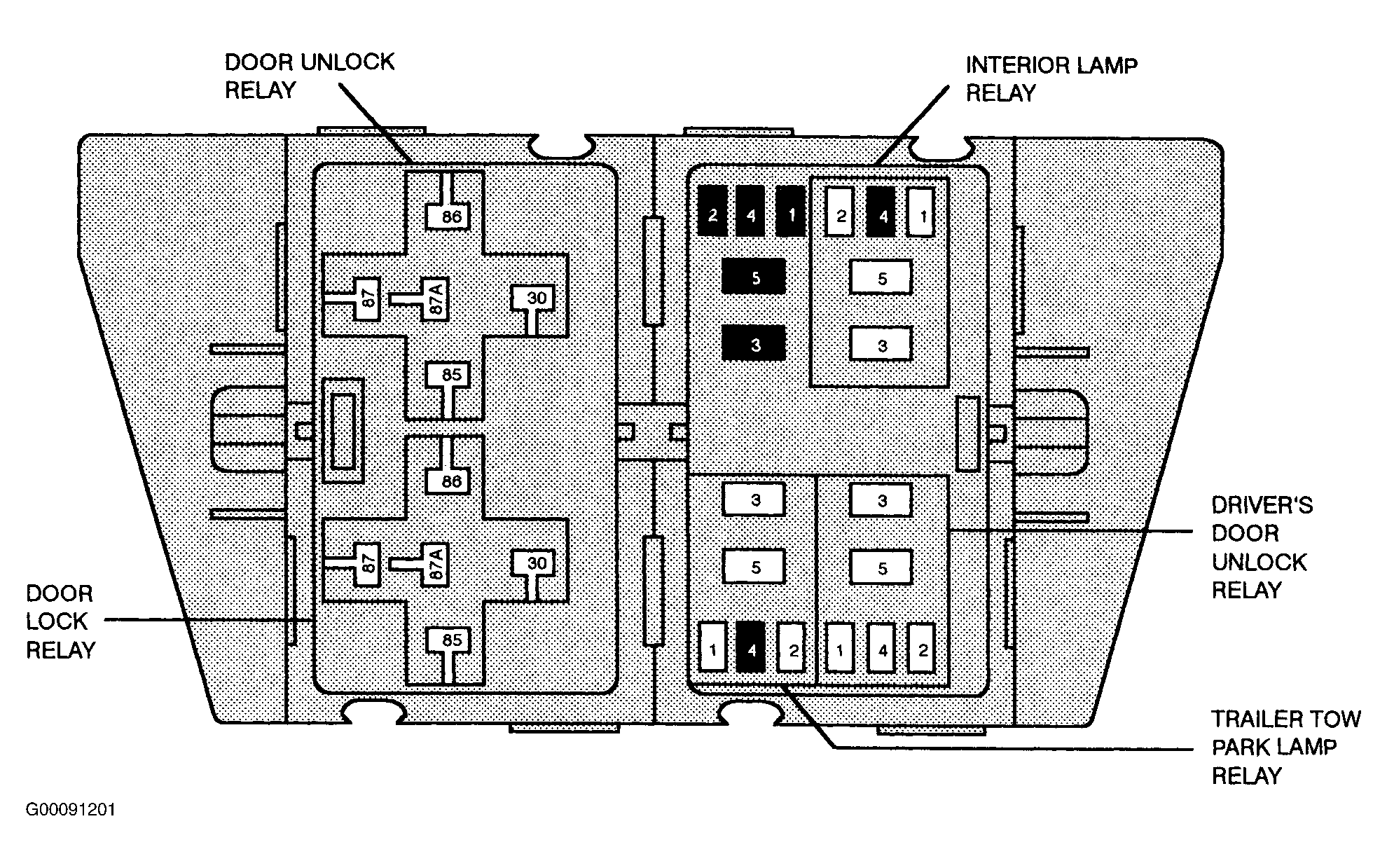

| Door Lock & Unlock Relays | In Auxiliary Relay Box No. 4 (Above Left Rear Wheelwell). See Fig 4 . |
| Engine Compartment Fuse/Relay Box (Ranger) | On Left Fender, Behind Battery. |

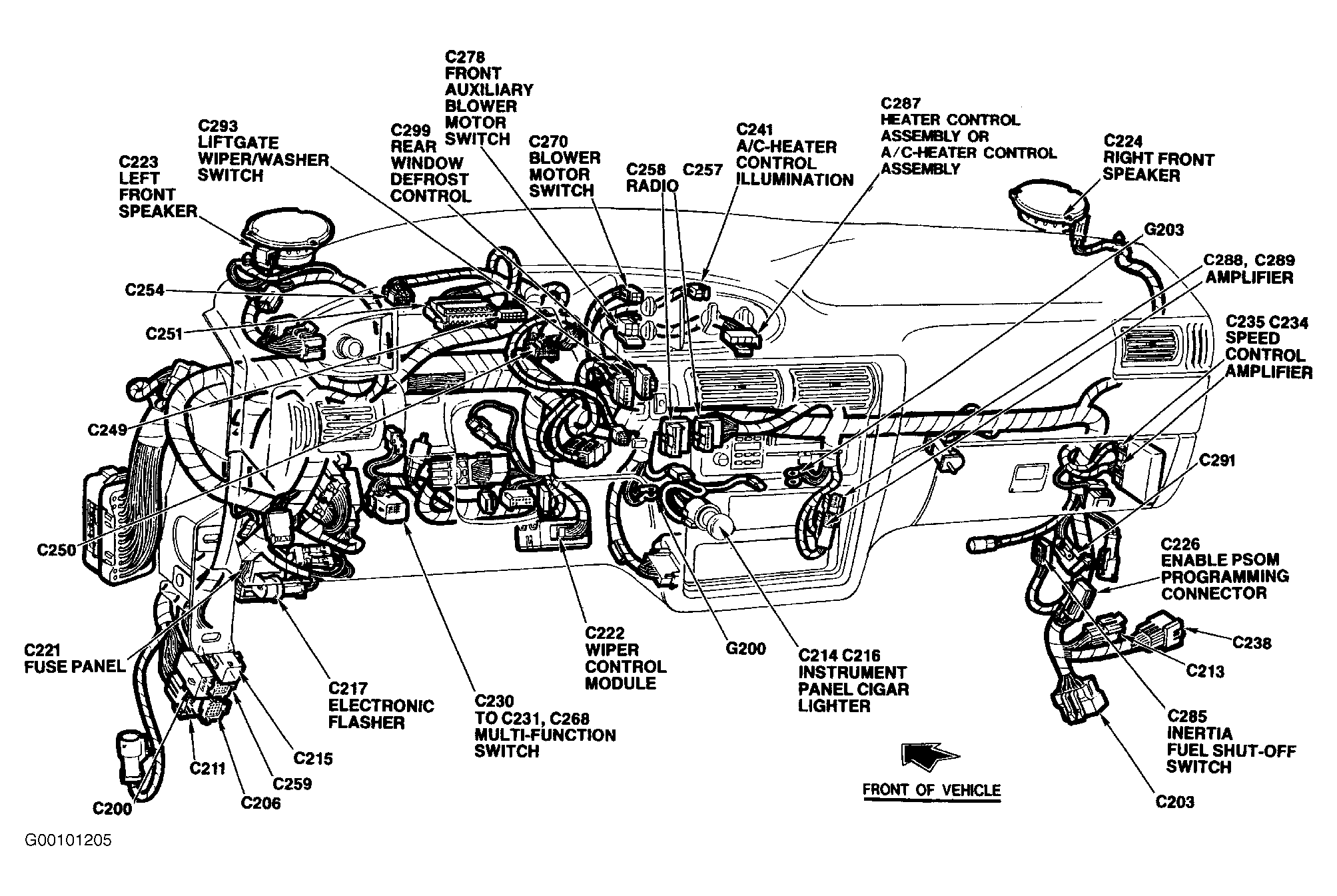

| Ground G200 (Aerostar) | Behind Center Of Instrument Panel, Below Left Side Of Radio. See Fig 3 . |

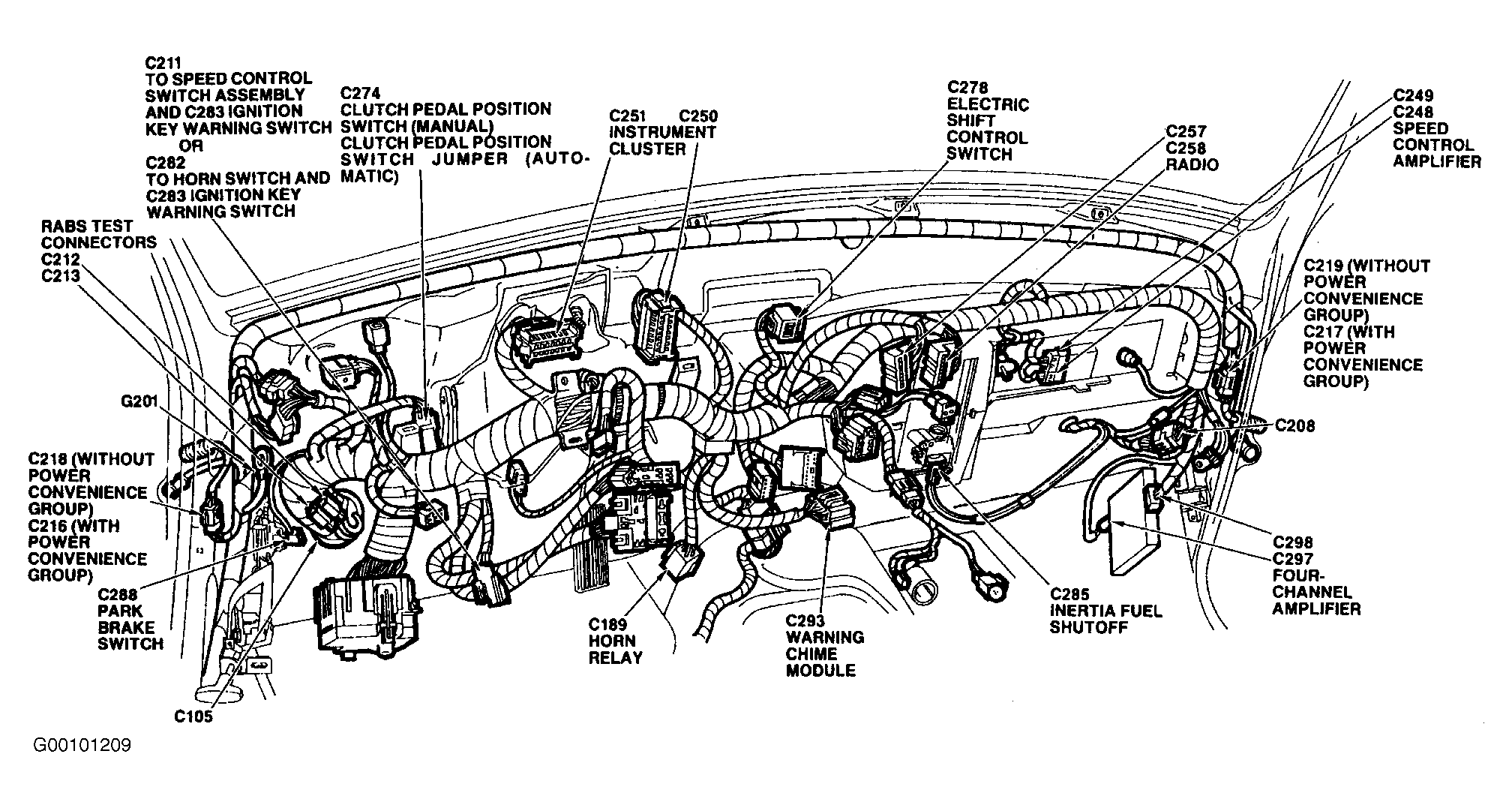

| Ground G201 (Ranger) | Above Left Kick Panel. See Fig 7 . |
| Ground G204 (Explorer) | Behind Left Kick Panel. See Fig 4 . |

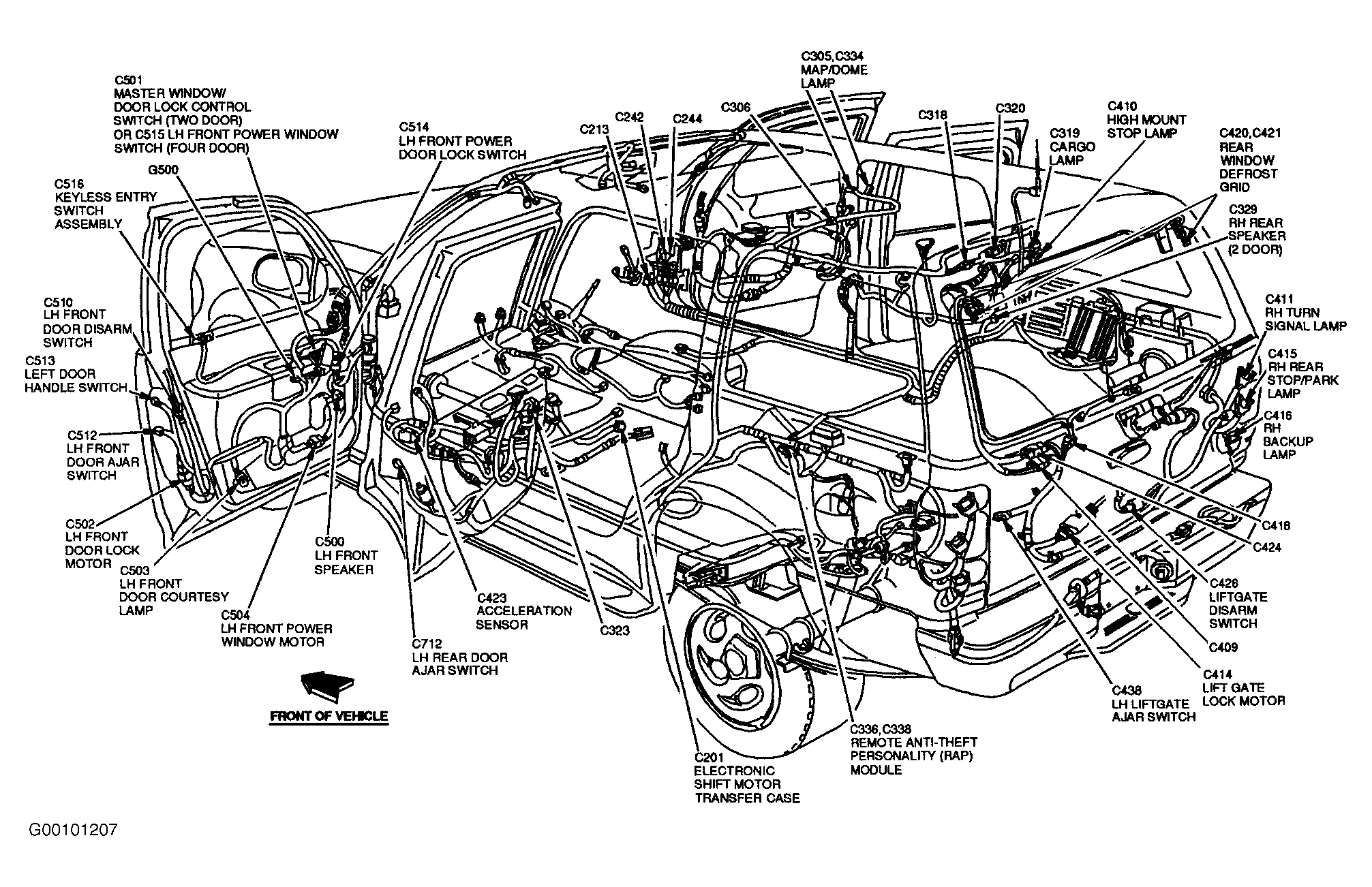

| Ground G500 (Explorer) | In Driver's Door. See Fig 5 . |
| Ground G600 (Explorer) | In Passenger's Front Door. See Fig 6 . |
| Power Door Lock Module (Aerostar) | Left Front Of Cargo Area, Behind Left Hand "B" Pillar. See Fig 1 . |
| Power Distribution Box (Explorer) | In Left Rear Corner Of Engine Compartment |

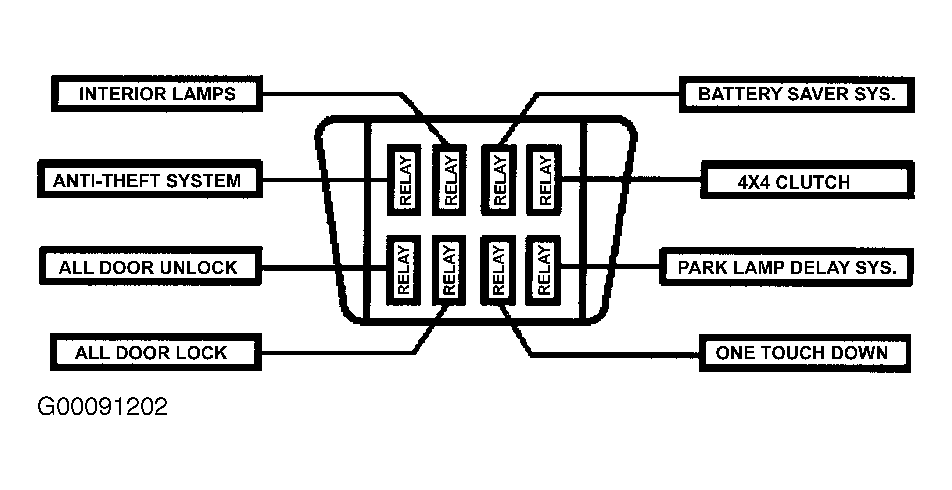

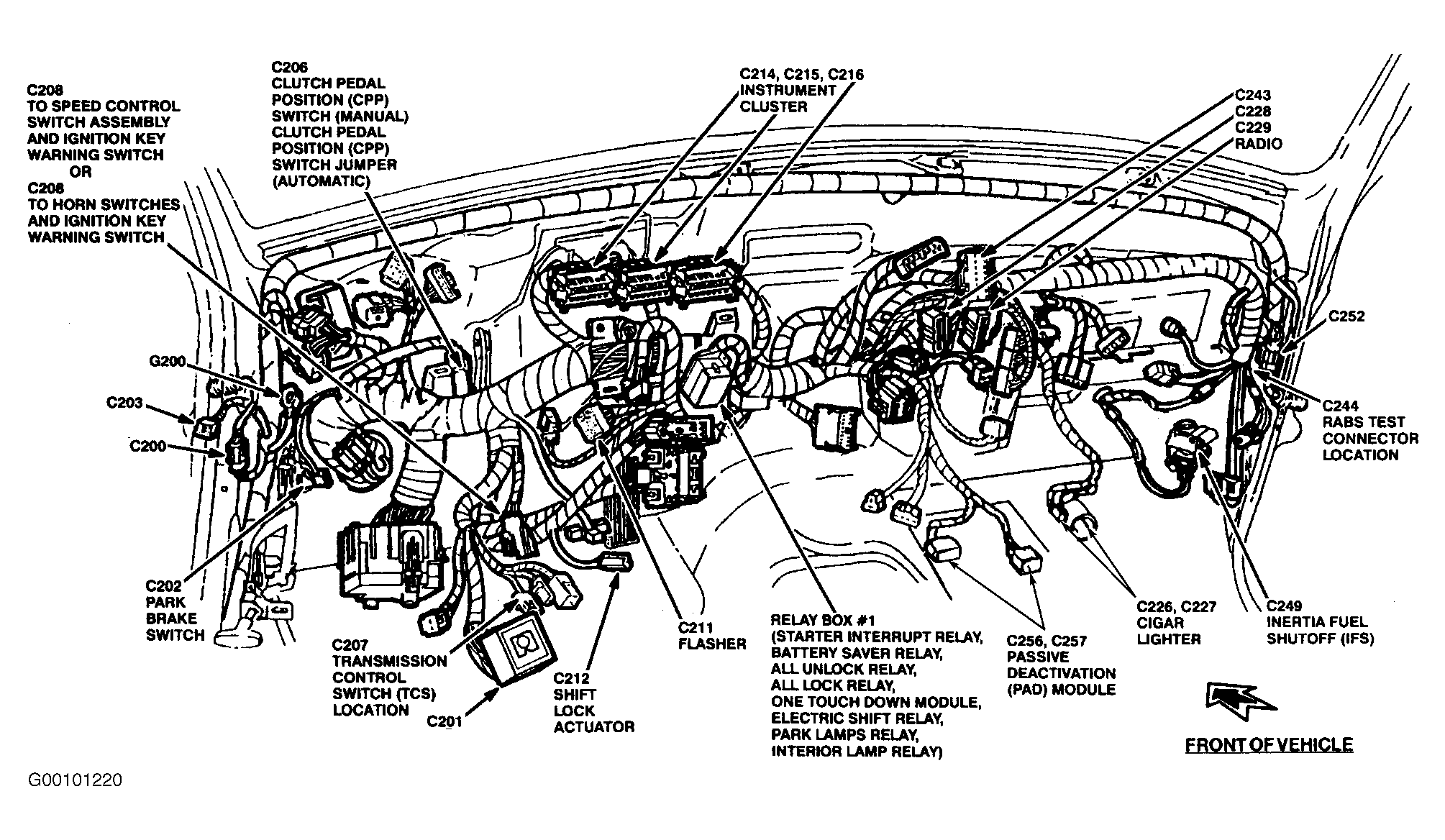

| Relay Box No. 1 (Ranger) | Behind Center Of Instrument Panel. See Fig 8 . |
| Remote Anti-Theft Personality Module (Explorer) | At Left Rear Quarter Panel. See Fig 5 . |

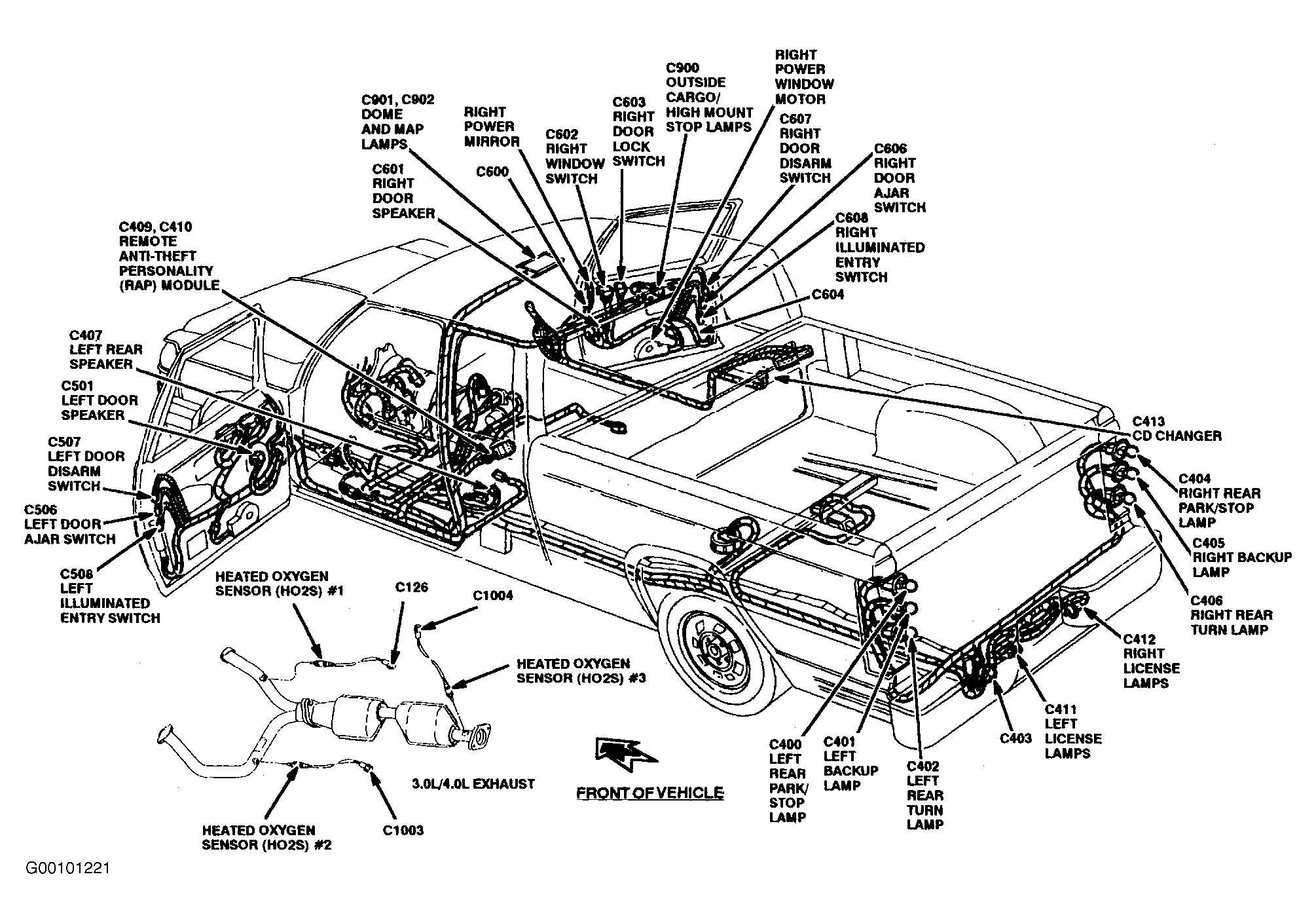

| Remove Anti-Theft Personality Module (Ranger) | Left Rear Corner Of Cab. See . |
