Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | |
|---|---|---|

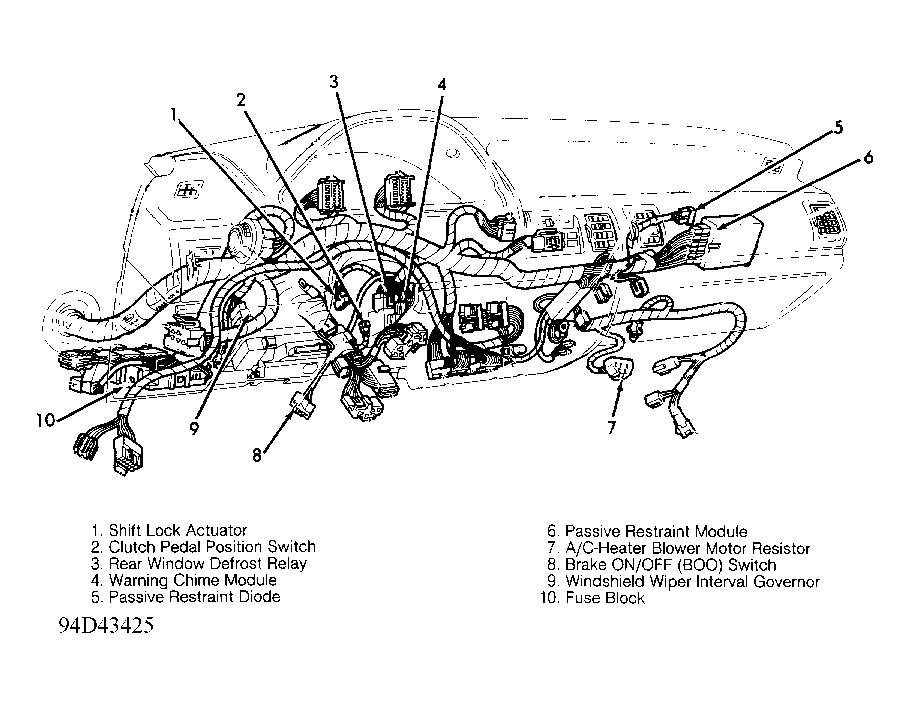

| Fuse Block | Behind left side of dash, to right of steering column. See Figure . | |
| Fusible Links | ||
| "A" & "B" (Black) | At left front strut tower. | |
| "C" (Dark Blue) | At starter relay. | |
| "D" (Gray) | At starter relay. | |
| "E" (Brown) | At left front strut tower. | |
| "F" (Blue) | At starter relay. | |
| "G" (Blue) | Near left front strut tower, in T/O. | |
| "H" (Blue) | At left front strut tower. | |
| "J" (Brown) | At starter relay. | |
| "P" (Blue) | Near left front strut tower, in T/O. | |
| "R" (Dark Green) | At starter relay. | |
