Wiring Diagrams

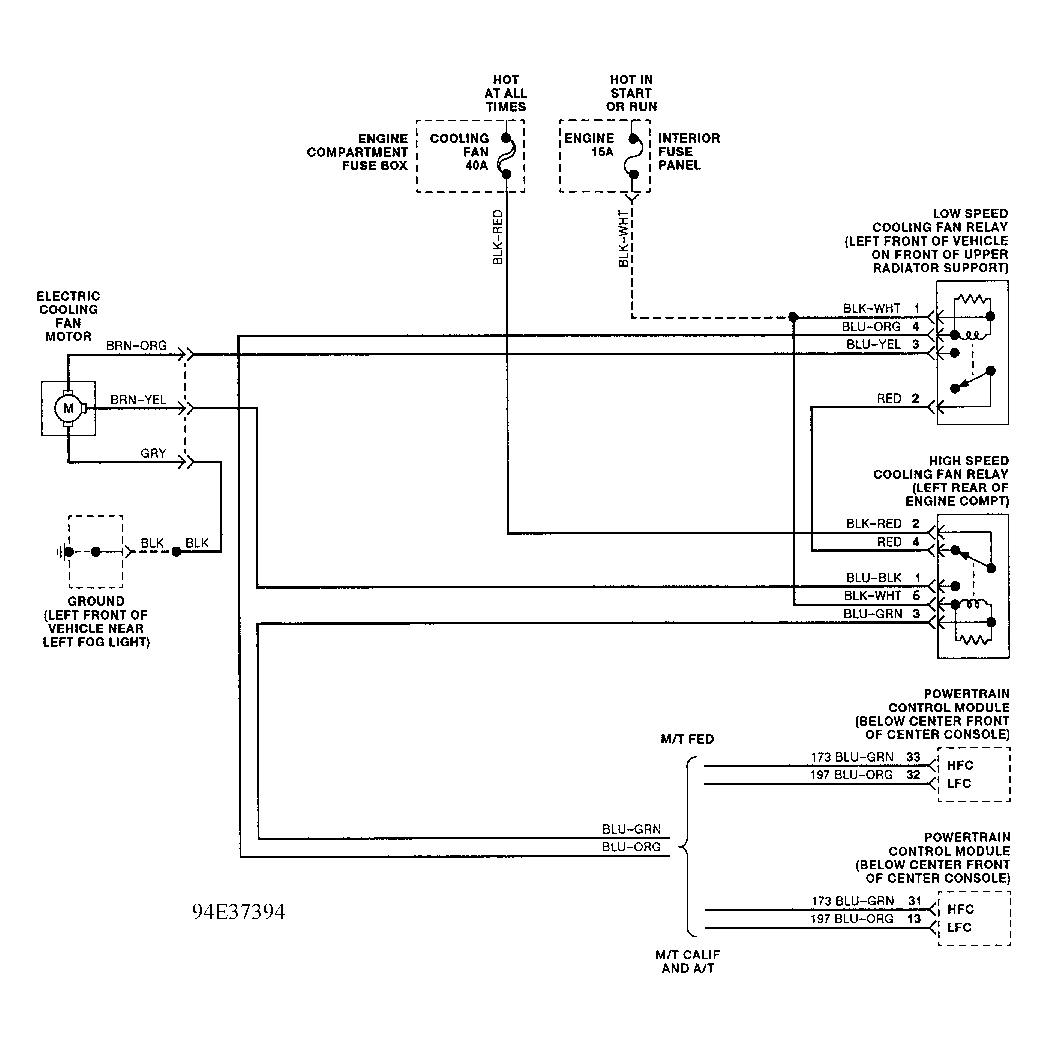

Fig 1: Electric Cooling Fan Wiring Diagram (2.0L)

G94E37394

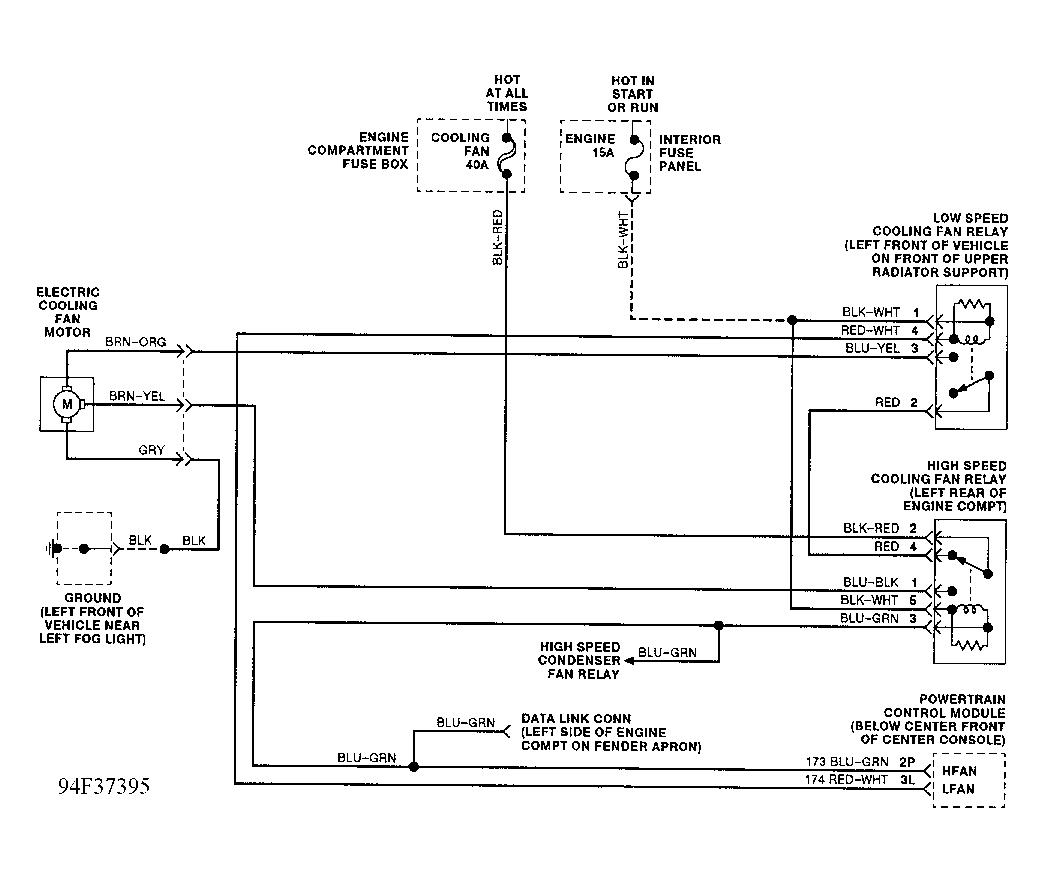

Fig 2: Electric Cooling Fan Wiring Diagram (2.5L)

G94F37395
