Transmission Fluid Usage Chart (98-8-8)

Publication date: 1998-04-27
Reference number: 98-8-8
Supersedes refnos: 97-5-11

TRANSMISSION FLUID USAGE CHART

TECHNICAL SERVICE BULLETIN

Reference Number(s): 98-8-8, Date of Issue: April 27, 1998
Superceded Bulletin(s): 97-5-11, Date of Issue: March 3, 1997

NOTE: This bulletin supersedes Technical Service Bulletin 97-5-11 dated March 3, 1997.

DESCRIPTION

FLUID - TRANSMISSION FLUID USAGE CHARTS

APPLICATION

Model(s): Ford: 1980-98 Crown Victoria

1981-97 Thunderbird

1981-98 Escort, Mustang

1982-88 EXP

1984-94 Tempo

1986-93 Festiva

1986-98 Taurus

1989-97 Probe

1994-97 Aspire

1995-98 Contour

Lincoln-Mercury: 1980-98 Grand Marquis, Town Car

1981-97 Cougar

1981-98 Continental

1982-87 LN7

1984-92 Mark VII

1984-94 Topaz

1986-98 Sable

1987-89 Tracer

1991-94 Capri

1991-98 Tracer

1993-98 Mark VIII

1995-98 Mystique

Light Truck: 1980-96 Bronco

1981-97 F-250 HD, F-350

1981-98 Econoline. F-150, F-250 LD

1983-98 Ranger

1984-90 Bronco II

1986-98 Aerostar

1988-97 F Super Duty

1991-98 Explorer

1993-98 Villager

1995-98 Windstar

1997-98 Expedition, Mountaineer

1999 Super Duty F Series

ISSUE

A new automatic transmission fluid (MERCON V) was introduced in 1997 for use in vehicles equipped with a 4R44E or 5R55E transmission. In the 1998 model year, MERCON V fluid is now used in the 4R70W transmission and AX4S and AX4N transaxles. MERCON V is not interchangeable at this time with the current MERCON service fluids.

ACTION

Using the incorrect fluid may cause transmission or transaxle concerns. Refer to Fig 1 for proper fluid applications on current and past model vehicles equipped with a manual or automatic transmission or transaxle.

PARTS INFORMATION

Part Number	Part Name
XT-5-QM	MERCON V (Quart)
XT-5-DM	MERCON V (55 Gallon Drum)

WARRANTY INFORMATION

WARRANTY STATUS: Information Only.

OASIS CODES: 504000, 510000

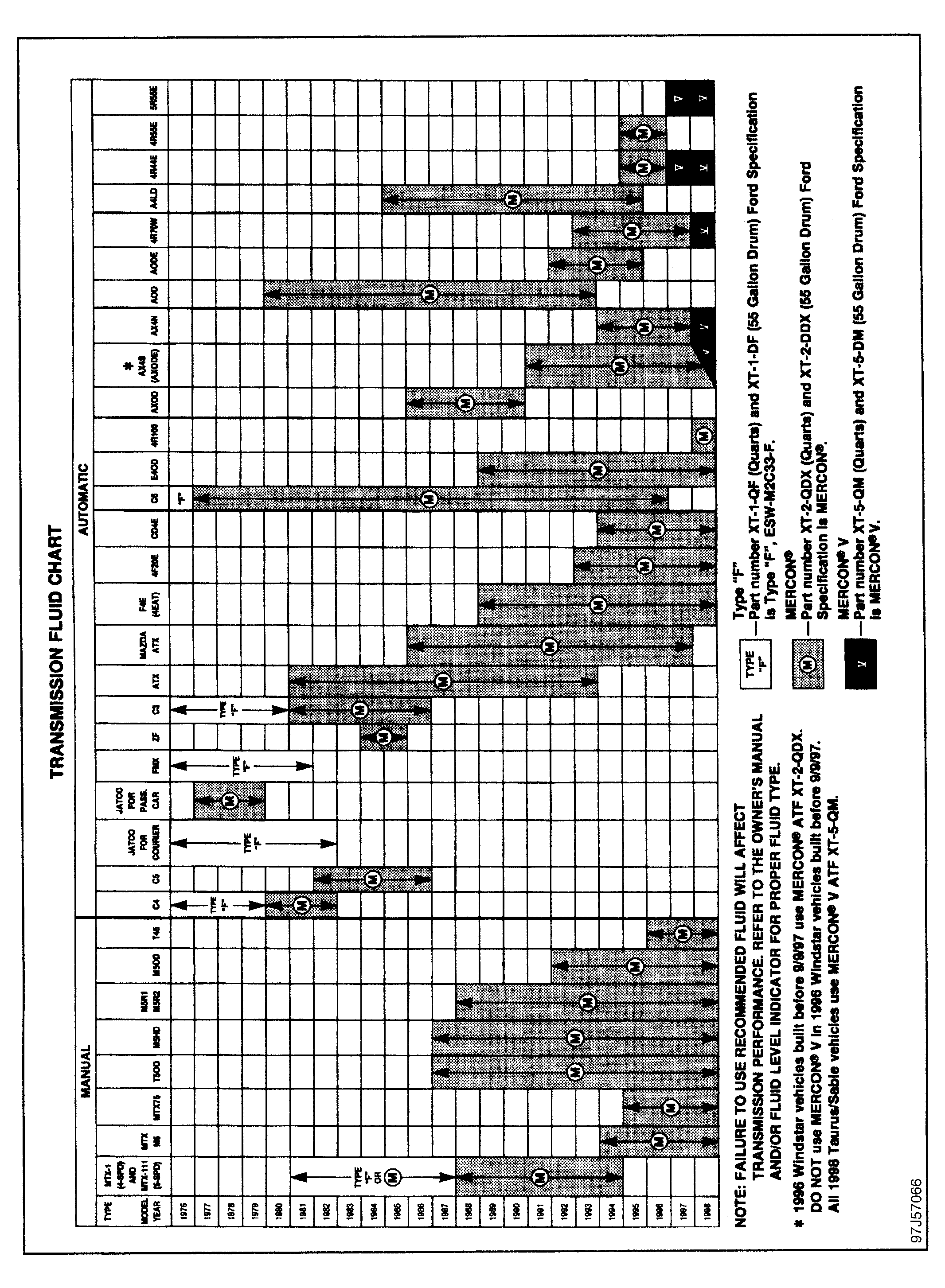

Fig 1: Transmission Fluid Application Chart
