Vacuum System & Function Selector Test

WARNING: This page is about a different car, the 1994 Mercury Grand Marquis. However, it is still accessible from the selected car via links, so may be relevant.

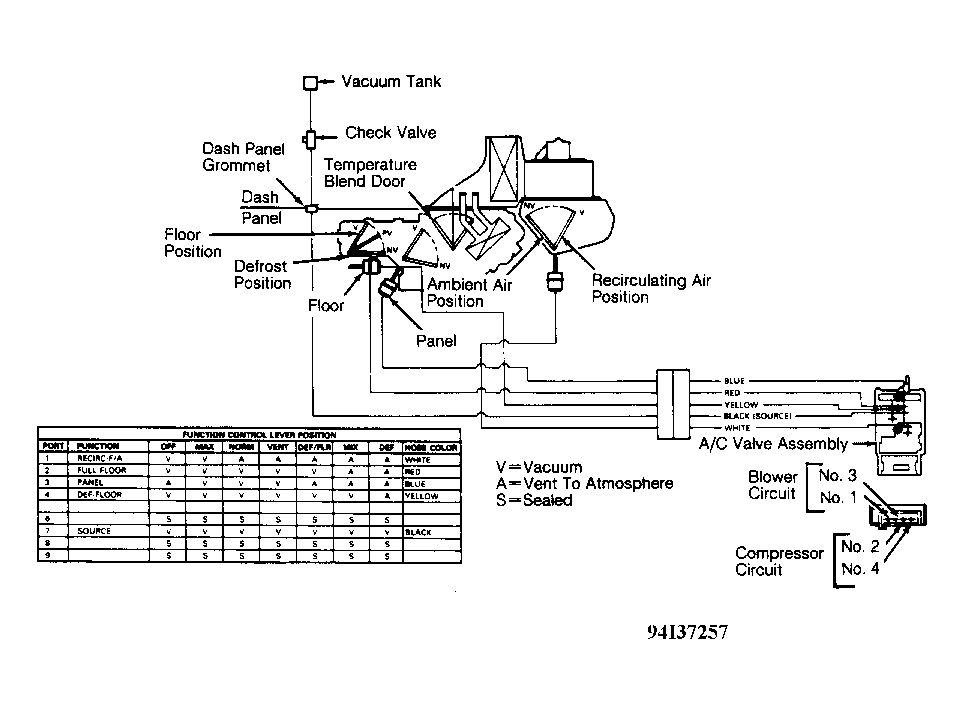

Never manually operate any vacuum motor or vacuum motor-controlled door. Manual operation may cause internal damage to vacuum motor diaphragm. Perform vacuum system and function selector valve test. See Figure.
