Installation (3.0L)

Clean gasket mating surfaces. Install new throttle body gasket. Install throttle body. Lightly oil throttle body bolt threads. Install bolts and tighten in sequence to specification. See Fig 1. See TORQUE SPECIFICATIONS TABLE (V6). To complete installation, reverse removal procedure.

Fig 1: Throttle Body Bolt Tightening Sequence (3.0L)
G90D10168Courtesy of FORD MOTOR CO.

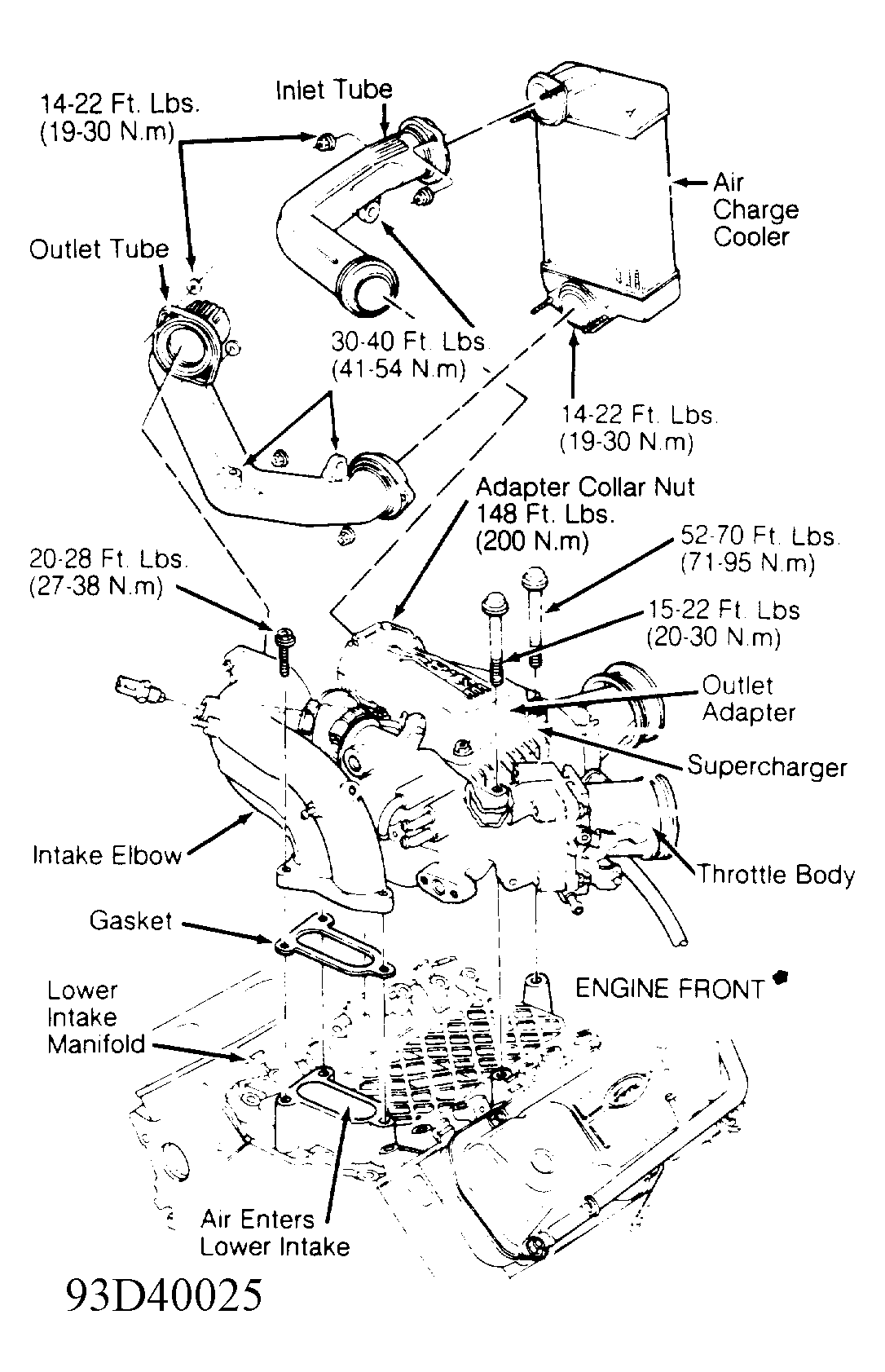

Fig 2: Exploded View Of Fuel Charging Assembly (3.8L SC)
G93D40025Courtesy of FORD MOTOR CO.
