Service Point Locations

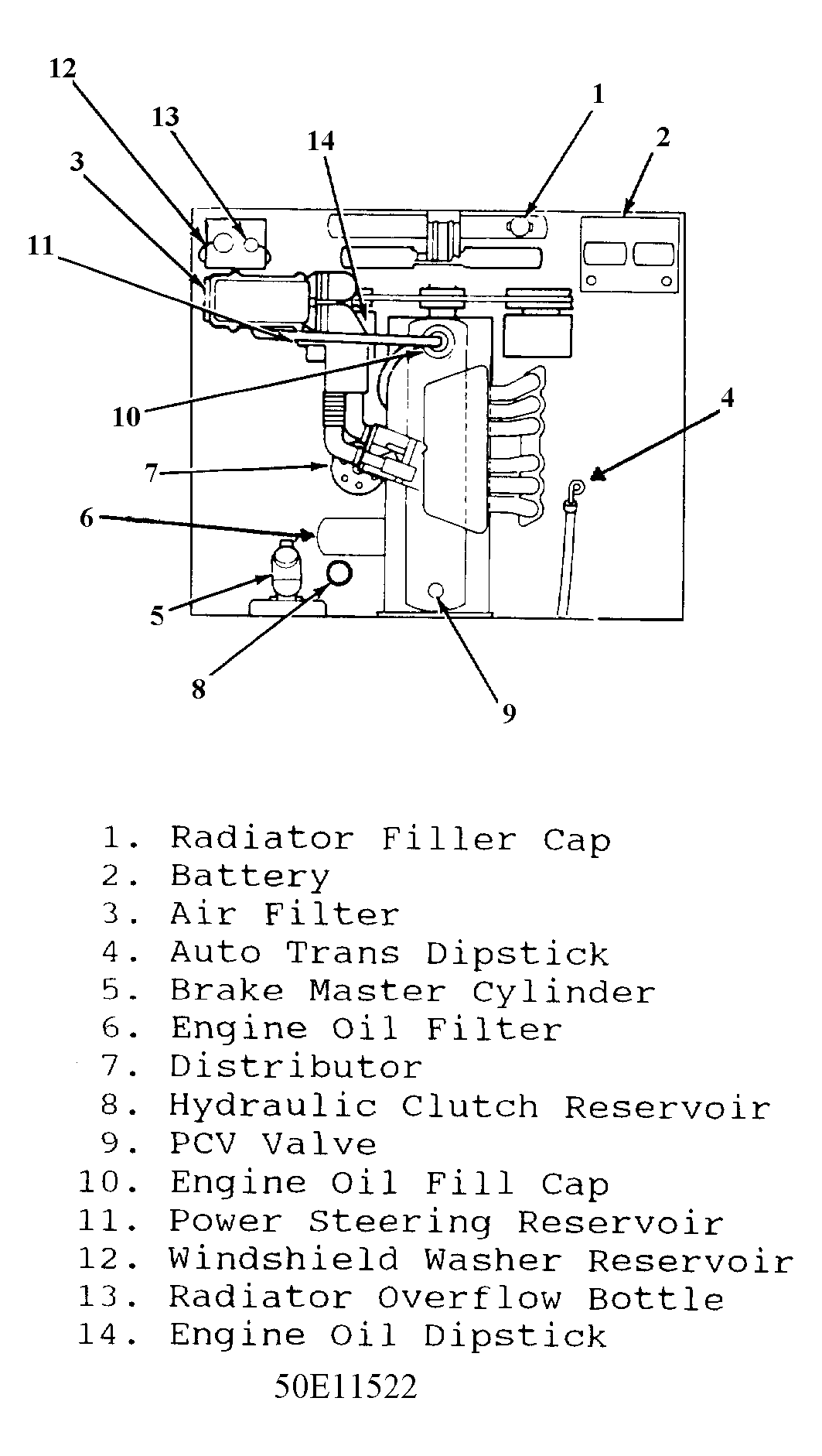

Fig 1: Service Points (4.9L)
G50E11522Courtesy of FORD MOTOR CO.
Fig 2: Service Points (5.0L & 5.8L)
G50F11523Courtesy of FORD MOTOR CO.
Fig 3: Service Points (7.3L Diesel)
G50G11524Courtesy of FORD MOTOR CO.
Fig 4: Service Points (7.3L IDI Turbo Diesel)
G50H11525Courtesy of FORD MOTOR CO.
Fig 5: Service Points (7.5L)
G50I11526Courtesy of FORD MOTOR CO.
