Power Seat Switch Test

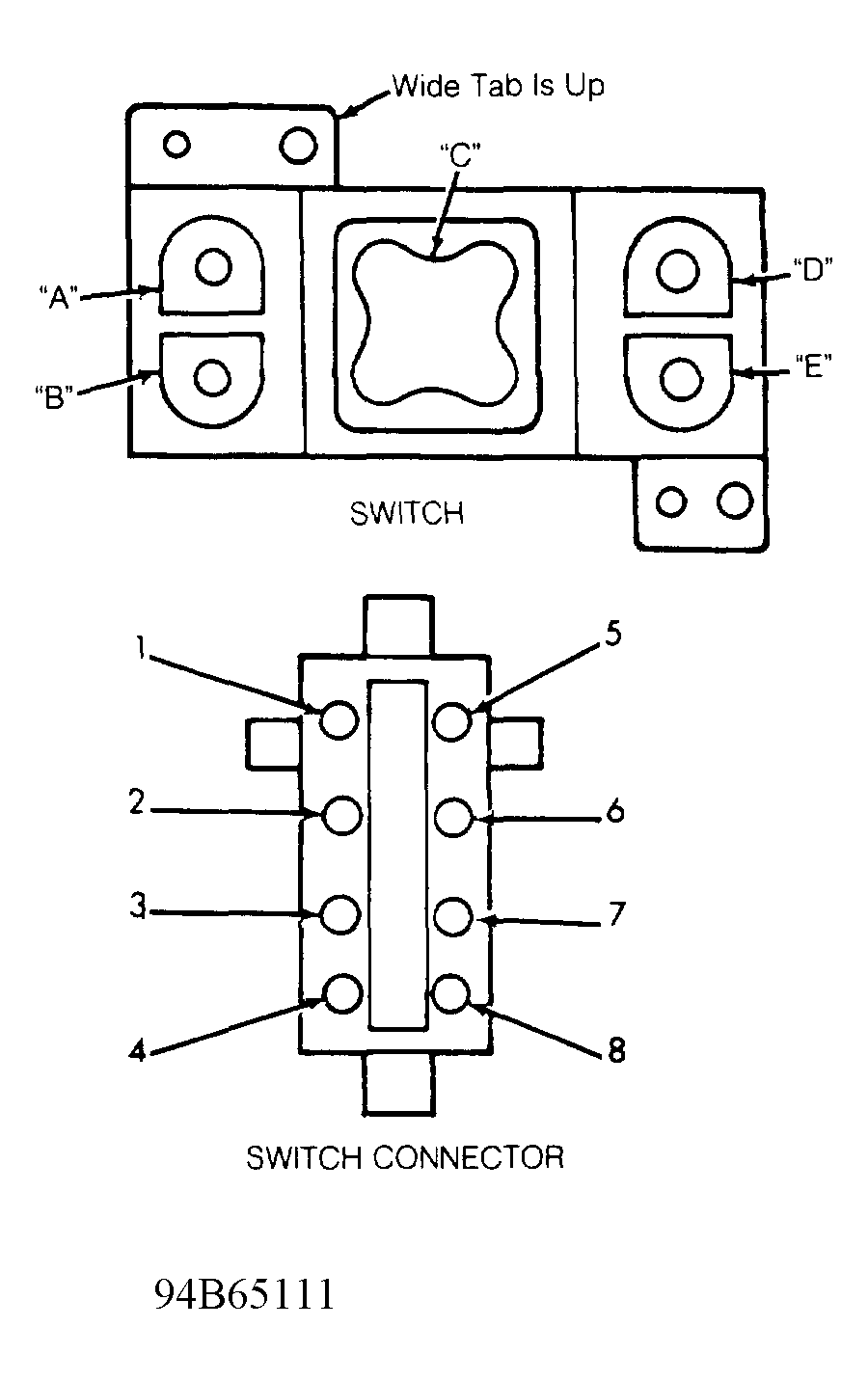

Using a volt-ohmmeter, check for voltage continuity between indicated switch connector terminals when switch is activated as specified. See POWER SEAT SWITCH CONTINUITY table. See Fig 1 . Replace switch if it does not test as specified.
POWER SEAT SWITCH CONTINUITY
| Switch Position | Continuity | ||
|---|---|---|---|
| NEUTRAL (1) | 1, 3, 4, 5, 6, 7 & 8 | ||
| "A" | 2 & 7; 1, 3, 4, 5, 6 & 8 | ||
| "B" | 2 & 5; 1, 3, 4, 6, 7 & 8 | ||
| "C" (Up) | 1, 2 & 7; 3, 4, 5, 6 & 8 | ||
| "C" (Down) | 2, 5 & 6; 1, 3, 4, 7 & 8 | ||
| "C" (Right) | 2 & 3; 1, 4, 5, 6, 7 & 8 | ||
| "C" (Left) | 2 & 8; 1, 3, 4, 5, 6 & 7 | ||
| "D" | 1 & 2; 3, 4, 5, 6, 7 & 8 | ||
| "E" | 2 & 6; 1, 3, 4, 5, 7 & 8 | ||
|
|||
