Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | ||
|---|---|---|---|
| Circuit Breakers | |||
| Power Door Locks | In cavity No. 12 of fuse block. | ||
| Power Windows | In cavity No. 14 of fuse block. | ||
| Windshield Wiper | In cavity No. 2 of fuse block. | ||
| Fuse Block | Behind left side of dash. | ||
| Fuse/Relay Block | |||

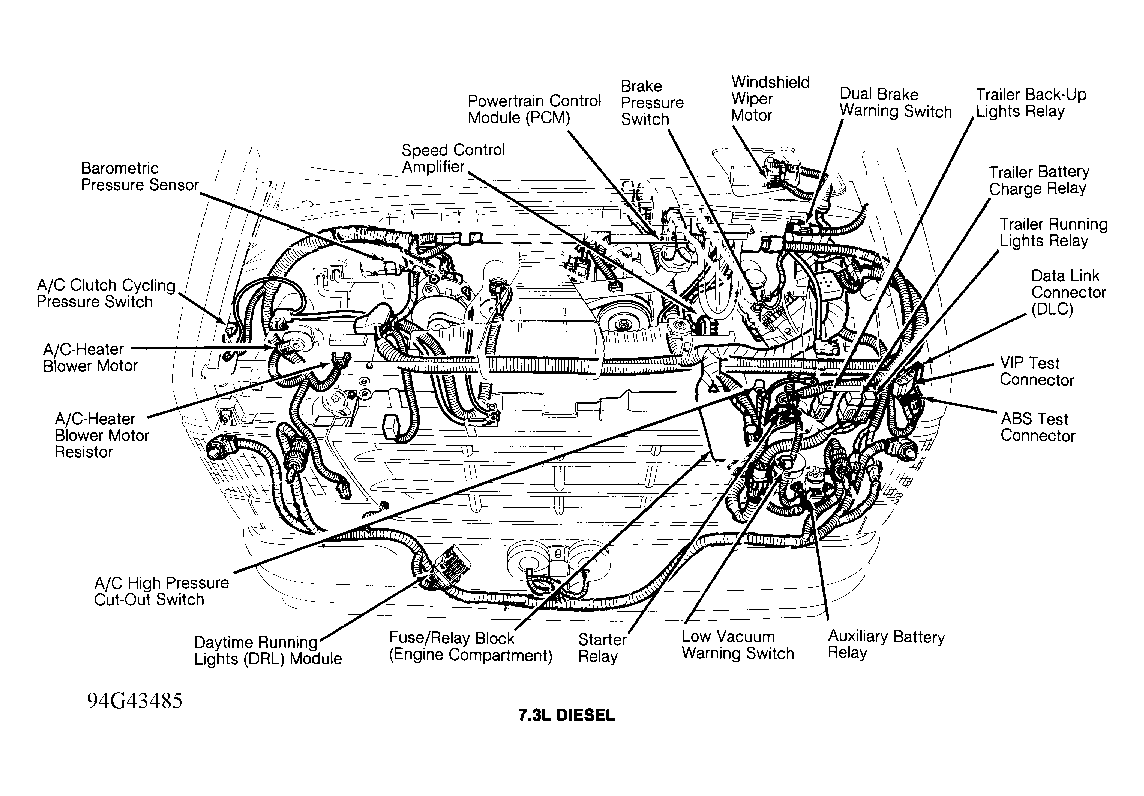

| 7.3L Diesel | In left front corner of engine bay. See Figure . | ||

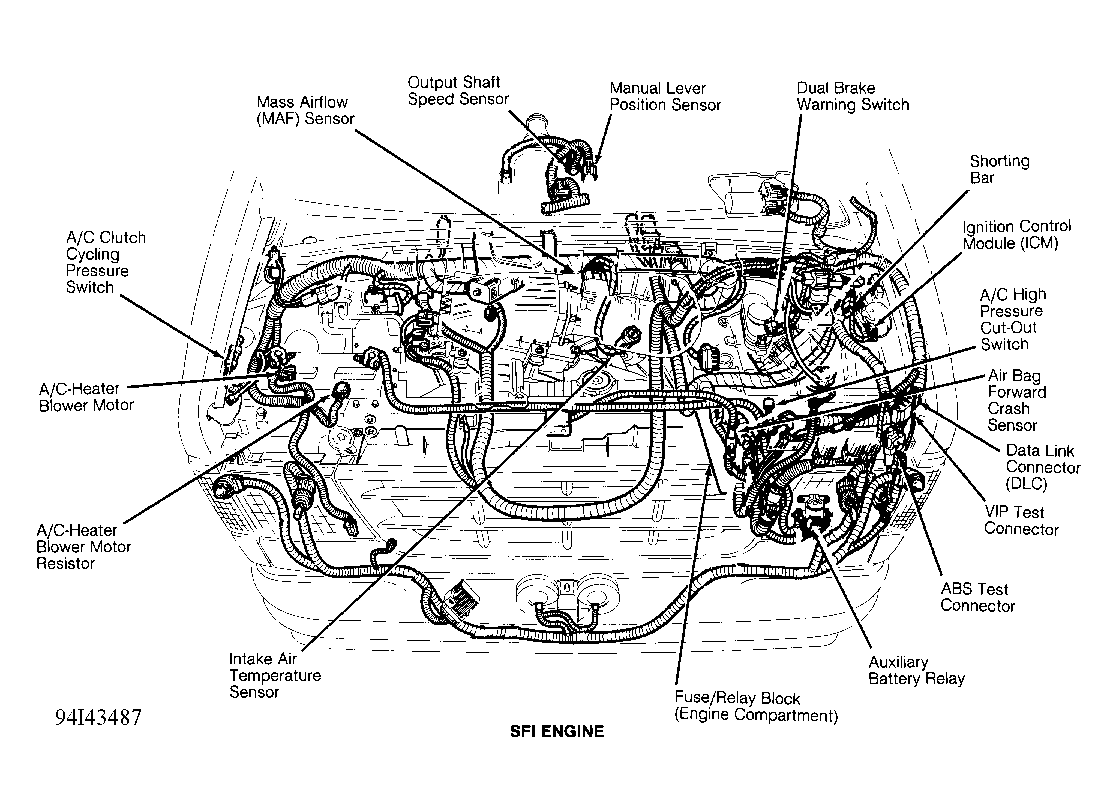

| SFI | In left front corner of engine bay. See Figure . | ||
| Fusible Links | |||
| Charging System | |||
| "A" & "B" (Gray) | On starter relay. | ||
| "C" (Brown) | On starter relay. | ||
| Glow Plug Controller | |||
| "D" & "E" (Dark Green) | On starter relay. | ||
| Powertrain Control Module (PCM) | |||
| "F" (Dark Green) | On starter relay. | ||
