Right Window Switch With Door Lock & Keyless Entry

Testing information is not available from manufacturer. See illustration for master window switch with door lock and keyless entry terminal locations. See Fig 1 .

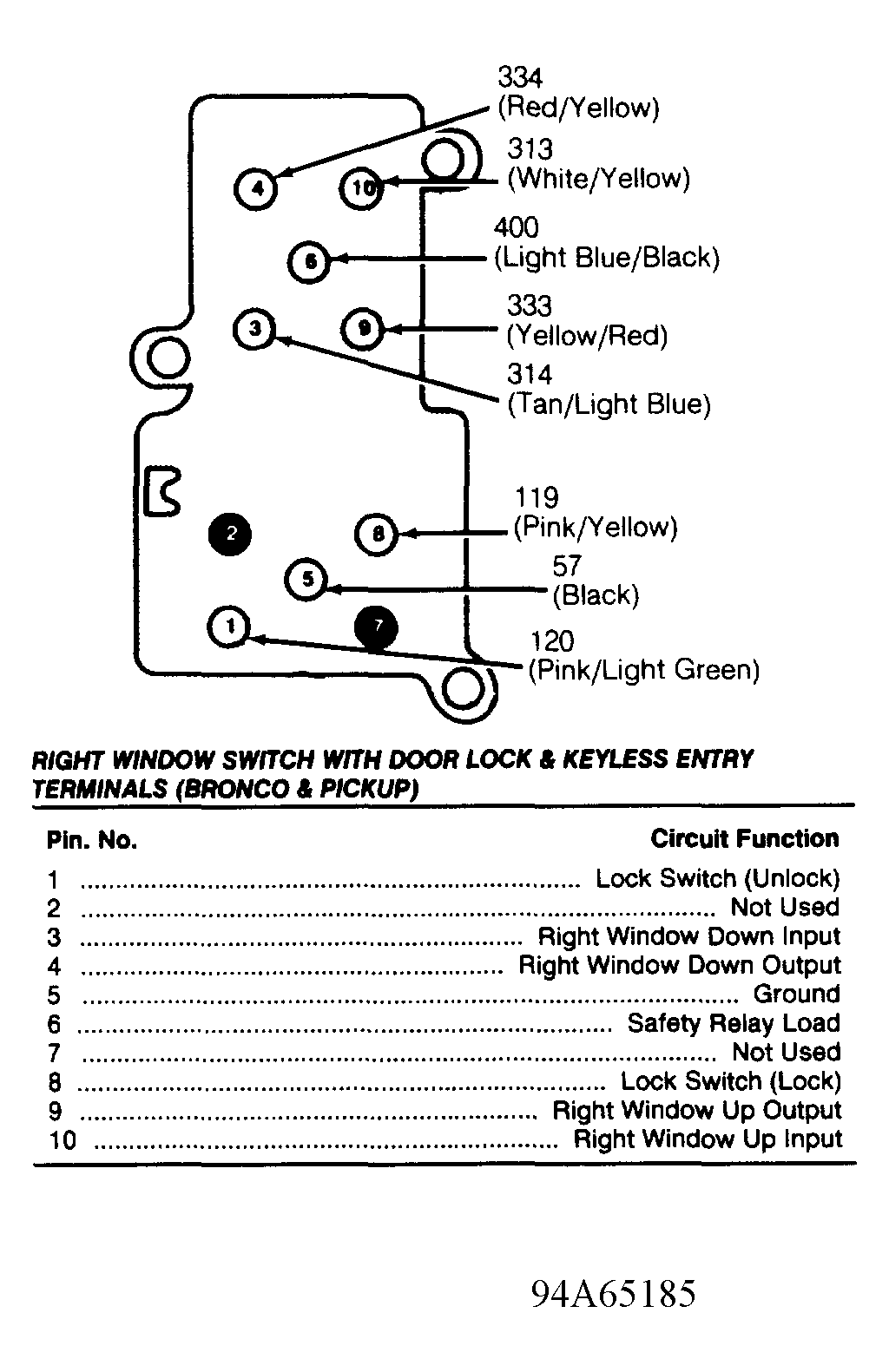

Fig 1: Right Window Switch W/Door Lock & Keyless Entry Terminals ID
G94A65185Courtesy of FORD MOTOR CO.
RIGHT WINDOW SWITCH WITH DOOR LOCK & KEYLESS ENTRY TERMINALS

Pin. No. Circuit Function
1 Lock Switch (Unlock)
2 Not Used
3 Right Window Down Input
4 Right Window Down Output
5 Ground
6 Safety Relay Load
7 Not Used
8 Lock Switch (Lock)
9 Right Window Up Output
10 Right Window Up Input
