Fuel Gauge Test

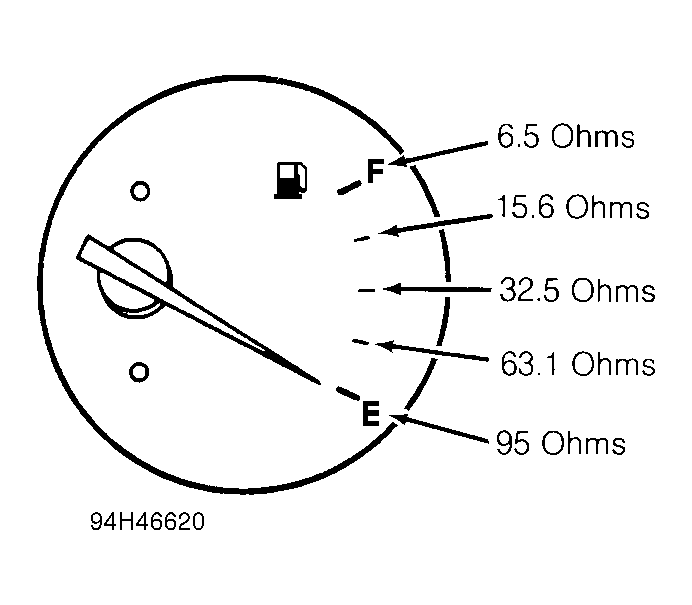

Connect Rotunda Gauge System Tester (021-00055) between Yellow wire at fuel tank sending unit connector and ground. Set tester to resistances shown in FUEL GAUGE TEST table. Observe gauge at each setting for 2 minutes. Replace gauge if indications are not as specified. See Fig 1 .
FUEL GAUGE TEST
| Gauge Needle Position (1) | Resistance Setting Ohms | ||
|---|---|---|---|
| Full Position (Up) | 6.5 | ||
| Half-Full Position (Middle) | About 32.5 | ||
| Empty Position (Down) | 95 | ||
|
|||
