Engine Control System Wiring Diagrams: 2.3L

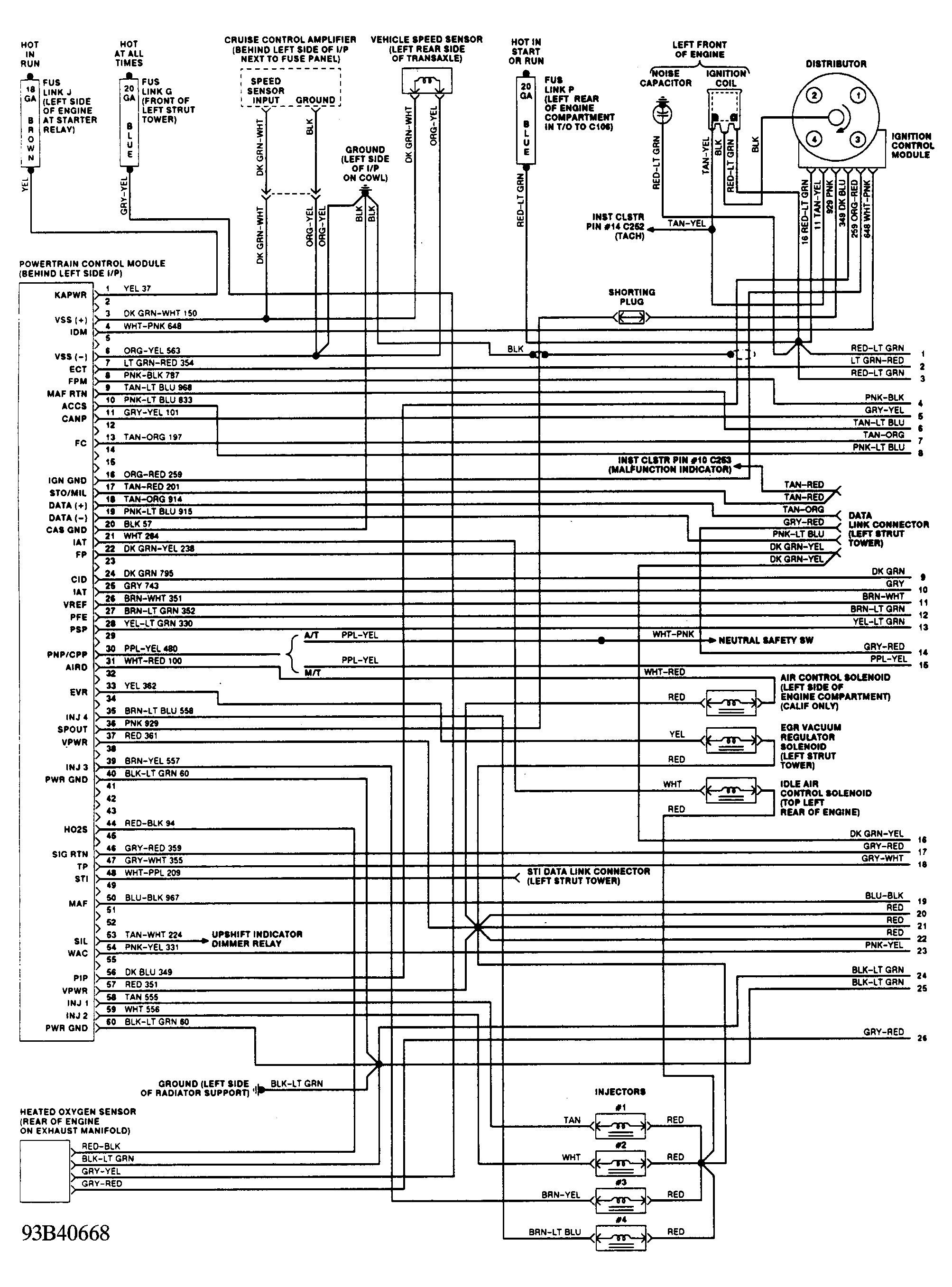

Fig 1: EEC-IV Wiring Diagram (Tempo/Topaz 2.3L - 1 of 2)

G93B40668

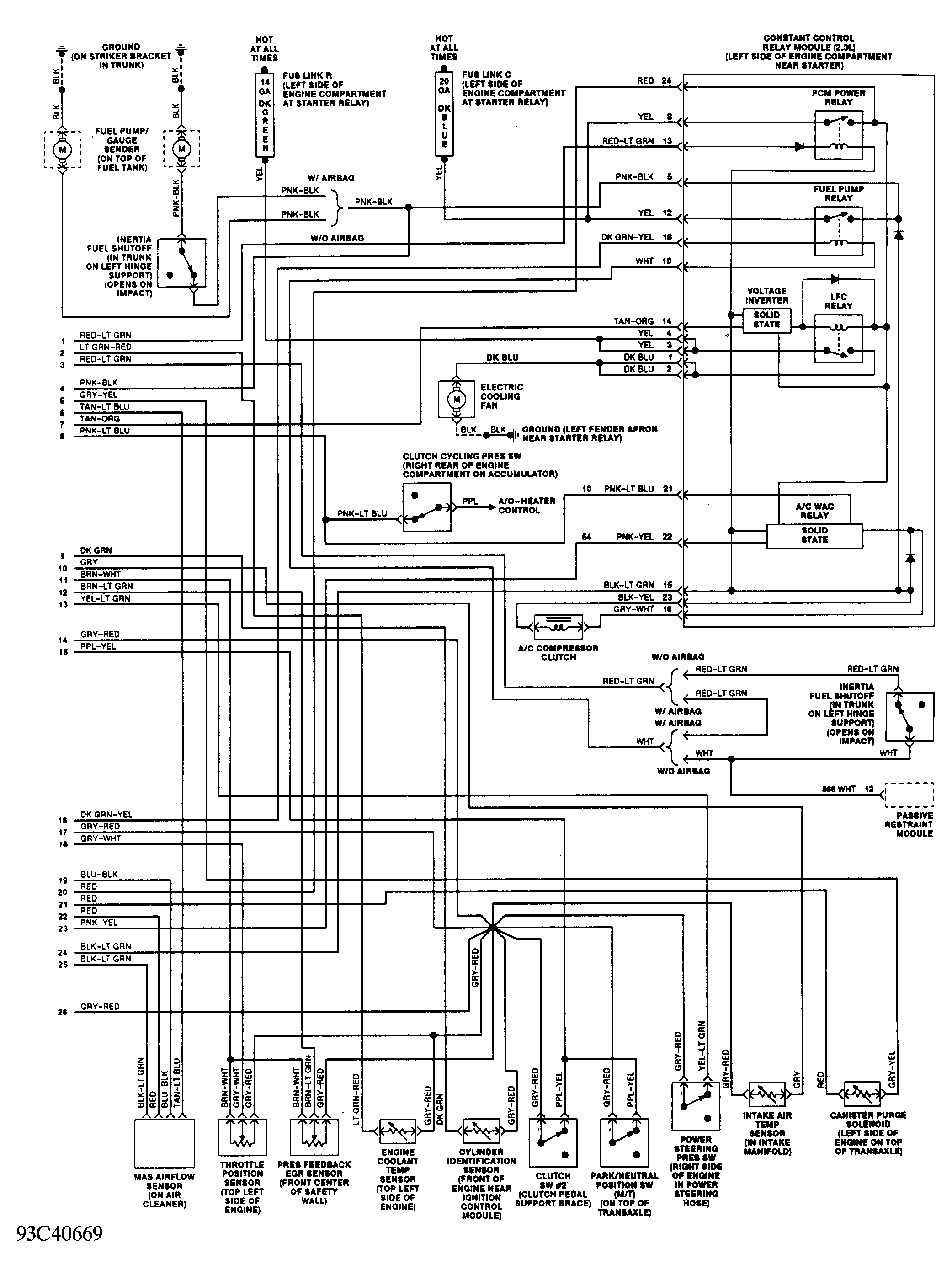

Fig 2: EEC-IV Wiring Diagram (Tempo/Topaz 2.3L - 2 of 2)

G93C40669
