3.0L Except SHO

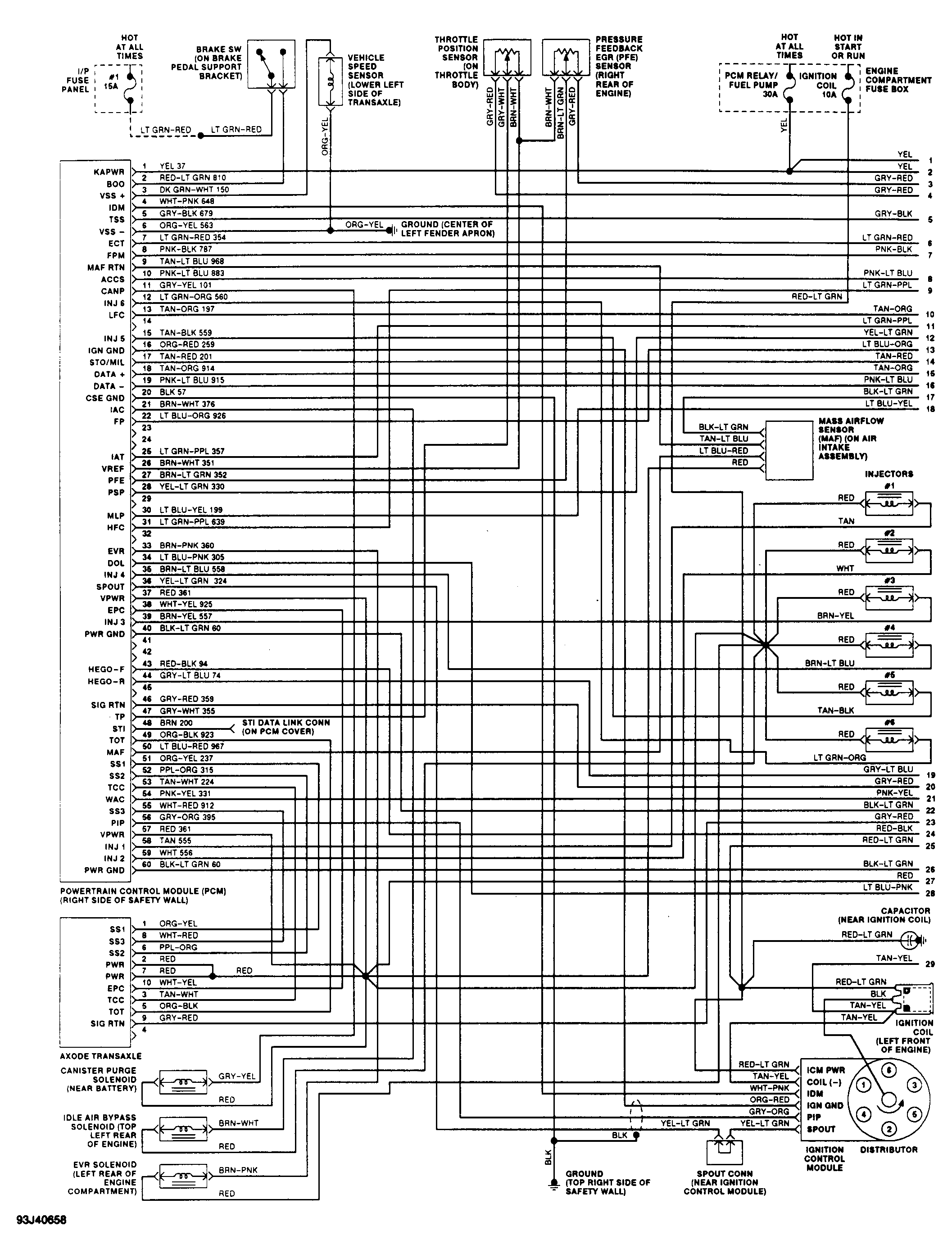

Fig 1: EEC-IV Wiring Diagram (Sable/Taurus 3.0L Except SHO 1 of 2)

G93J40658

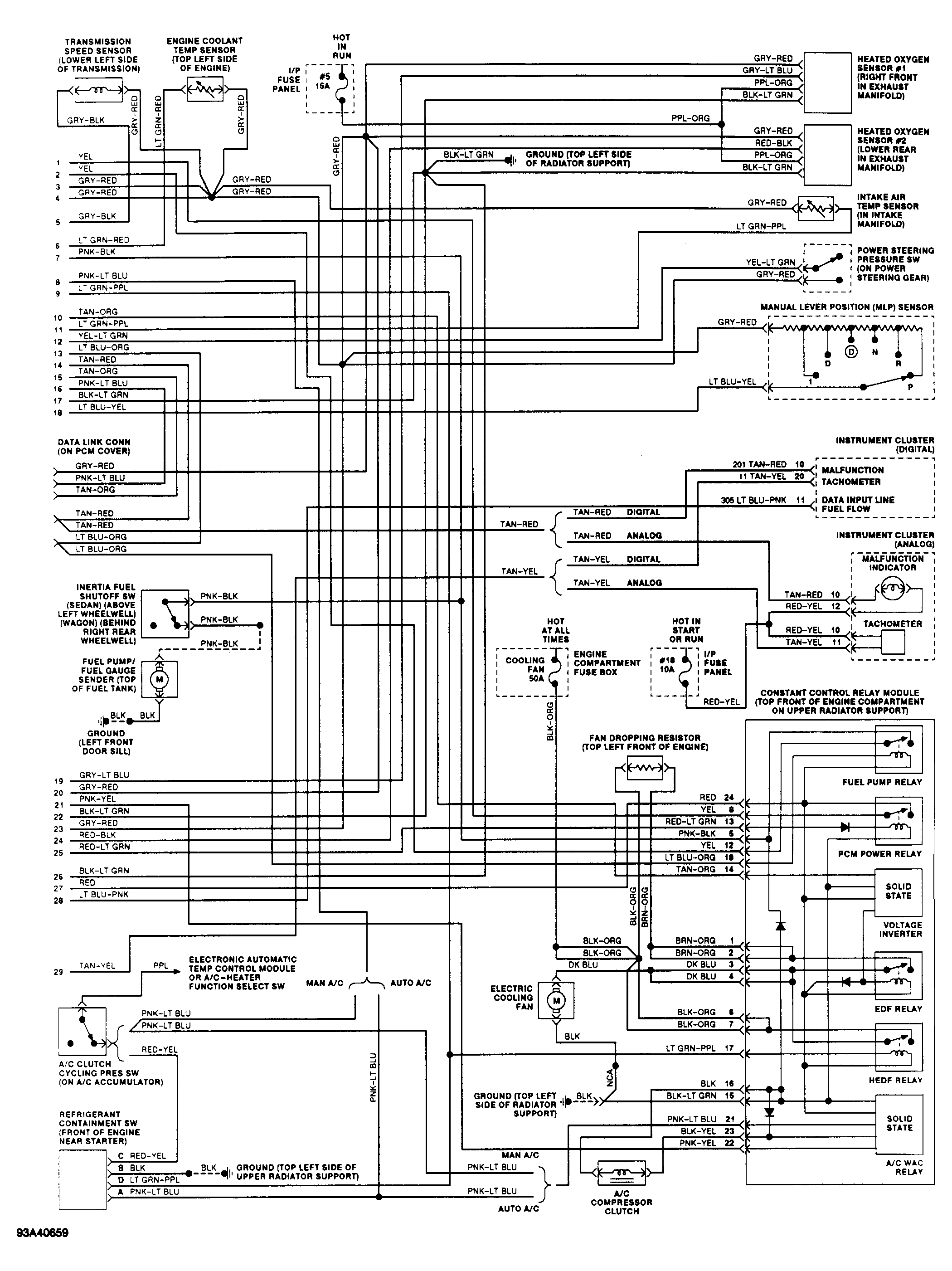

Fig 2: EEC-IV Wiring Diagram (Sable/Taurus 3.0L Except SHO 2 of 2)

G93A40659
