Door Lock Control Module: Aerostar

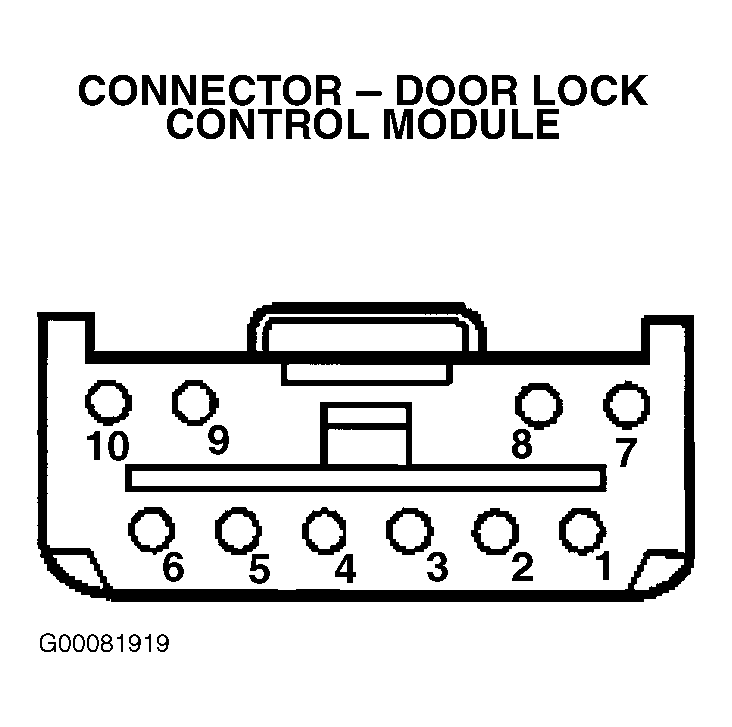

With connector engaged, verify the terminal inputs. See CHECKING DOOR LOCK CONTROL MODULE INPUTS table.
CHECKING DOOR LOCK CONTROL MODULE INPUTS
| Application | Terminal No. |
|---|---|
| Voltage When Door Unlock Switch Is Actuated | 1 |
| Voltage When Door Lock Switch Is Actuated | 2 |
| Ground At All Times | 4 |
| Voltage When Door Lock Switch Is Actuated | 7 |
| Battery At All Times | 8 |
