Home >> Ford >> 1993 >> Ranger Splash, 2.3 A, Standard >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Tests W/Codes - 2.3L >> Diagnostic TOUBLE Code Reference Charts (2-Digit) >> Notes

Diagnostic TOUBLE Code Reference Charts (2-Digit): Notes

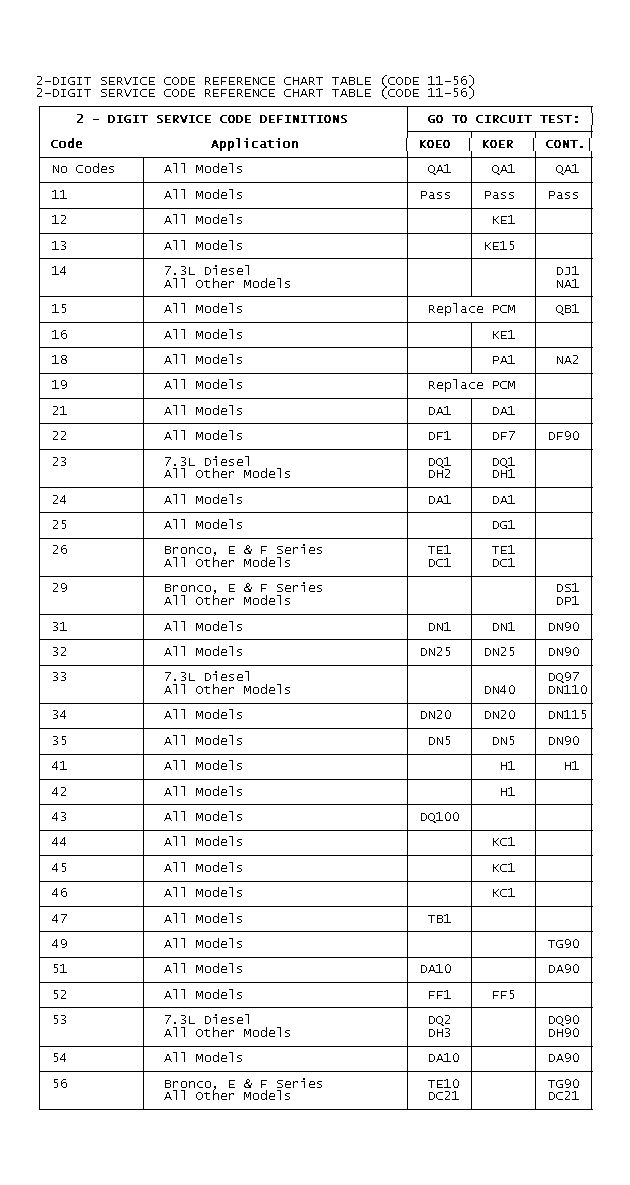

Fig 1: DIAGNOSTIC TOUBLE CODE REFERENCE CHART TABLE (CODE 11-56)

GB0021009

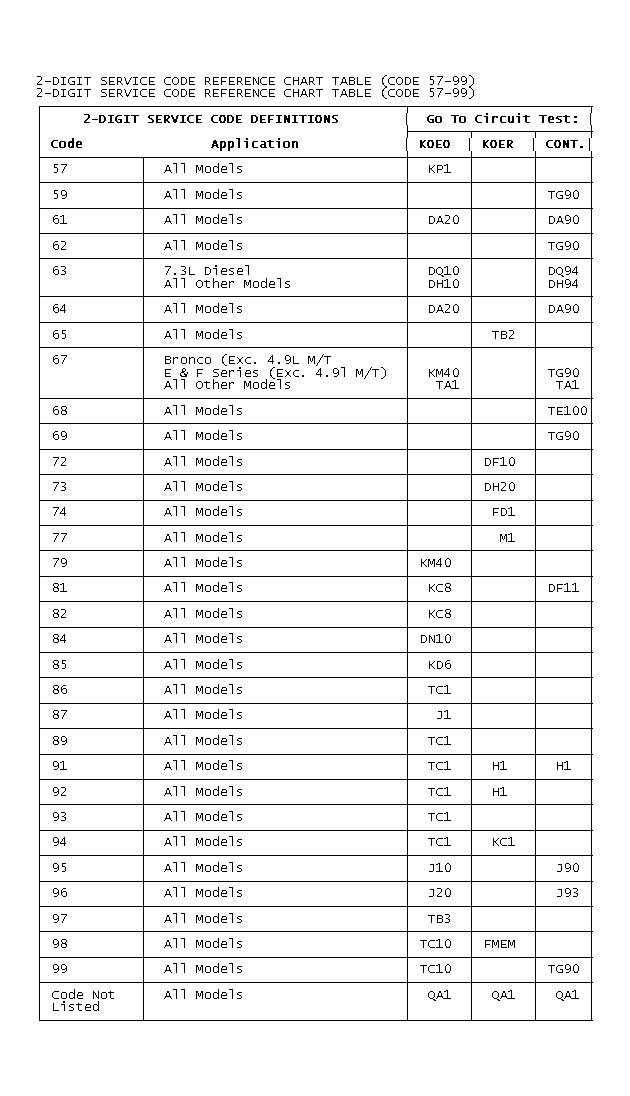

Fig 2: DIAGNOSTIC TOUBLE CODE REFERENCE CHART TABLE (CODE 57-99)

GB0021010
