Component Locations

COMPONENT LOCATIONS

Component Location
Fuse Panel Behind Left Side Of Instrument Panel
Left Power Lumbar Motor Under Front Of Driver Seat
Left Lumbar Seat Switch Front Of Driver Seat
Right Lumber Seat Pump Motor Under Front Of Passenger Seat
Right Lumbar Seat Switch Front Of Passenger Seat
Fig 1: Locating Main Fuse Panel (Aerostar)
G00090010Courtesy of FORD MOTOR CO.

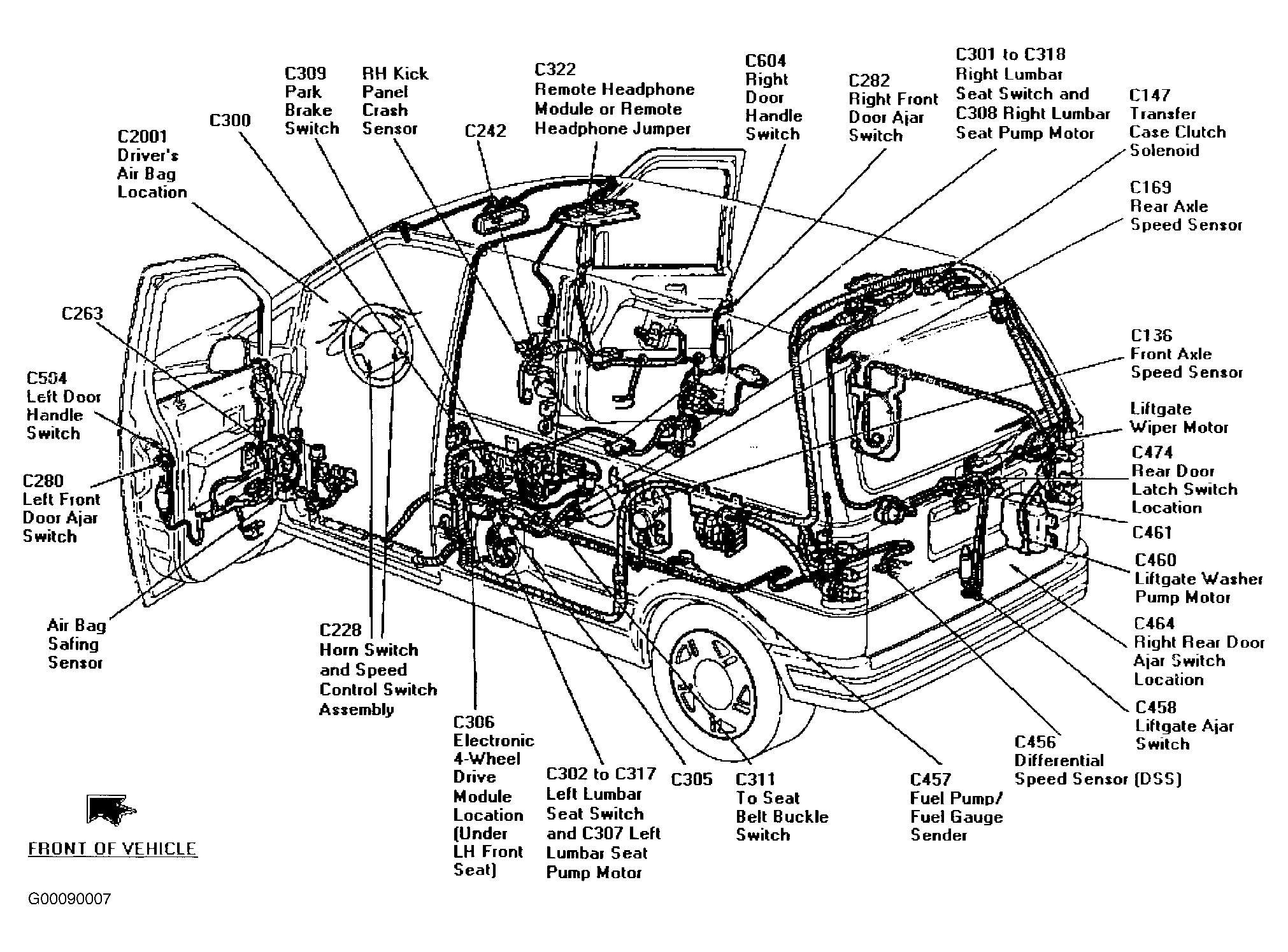

Fig 2: Locating Power Lumbar Seat Components (Aerostar)
G00090007Courtesy of FORD MOTOR CO.

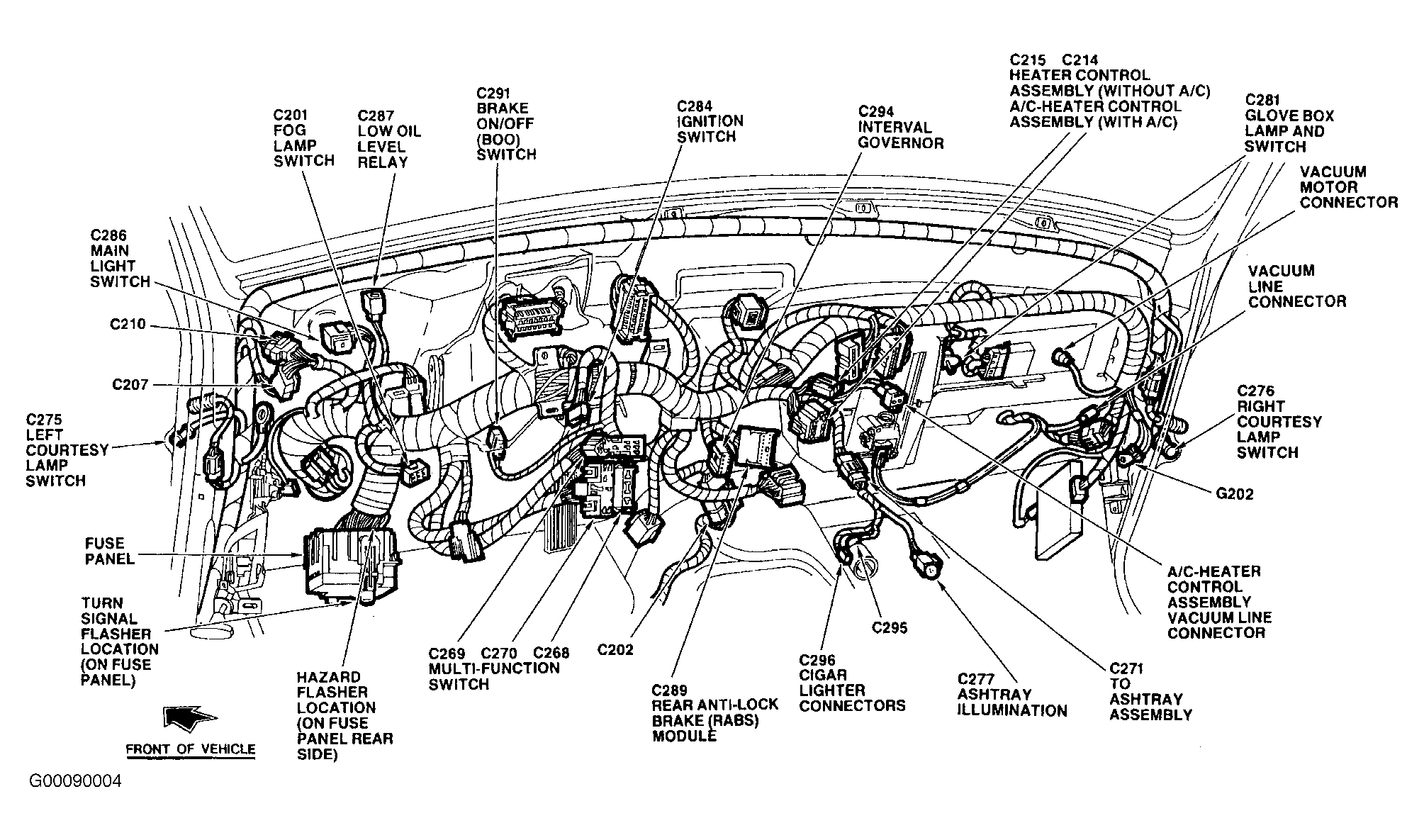

Fig 3: Locating Main Fuse Panel (Ranger)
G00090004Courtesy of FORD MOTOR CO.

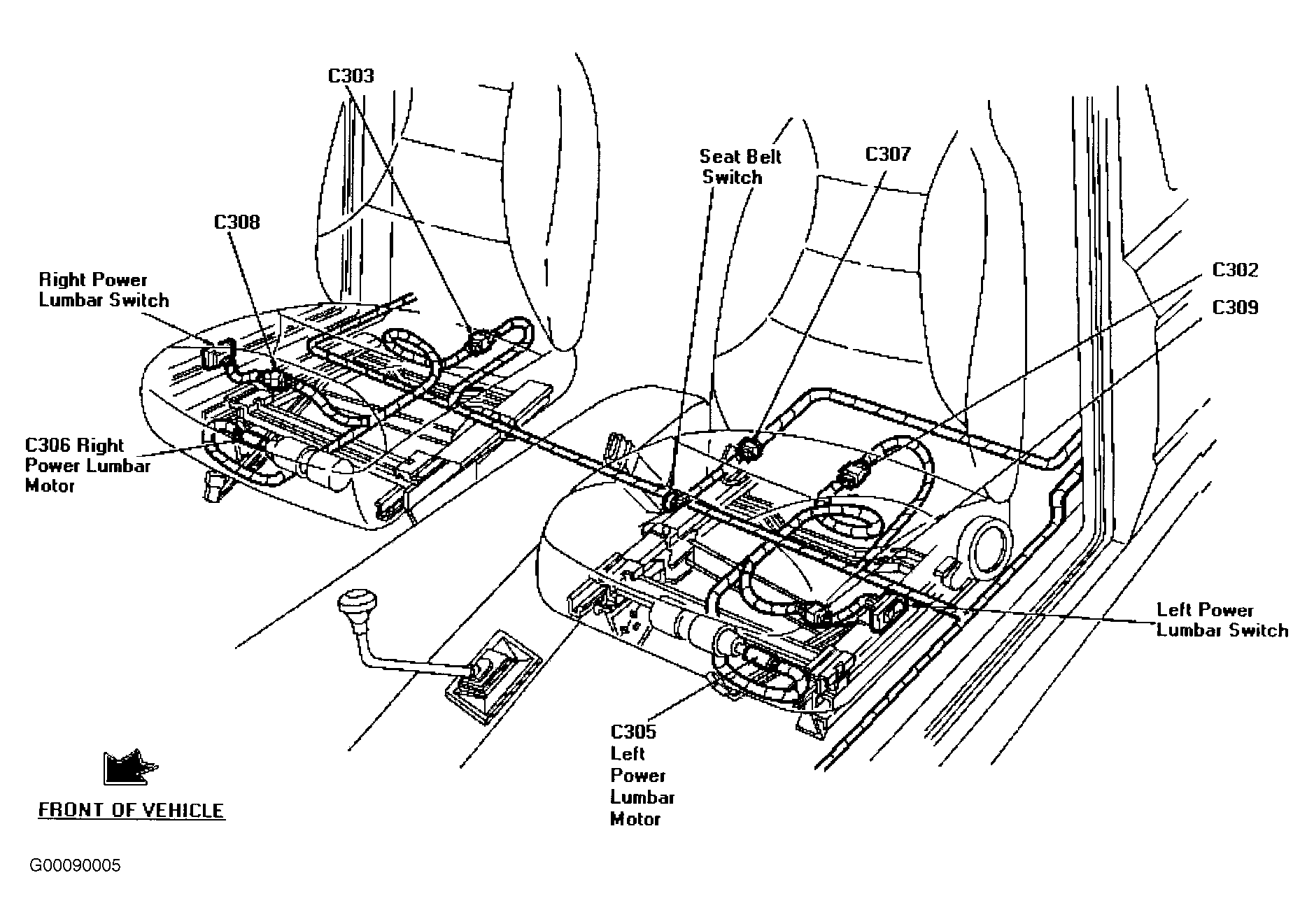

Fig 4: Locating Power Lumbar Seat Components (Ranger)
G00090005Courtesy of FORD MOTOR CO.
