Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| Anti-Theft Module | Behind left side "B" pillar. | |
| Daytime Running Lights (DRL) Module | ||
| 7.5L | In front center of engine bay, behind grille. See Figure . | |
| 7.3L Diesel | On front center of engine bay, behind grille. See Figure . | |
| Glow Plug Controller | ||

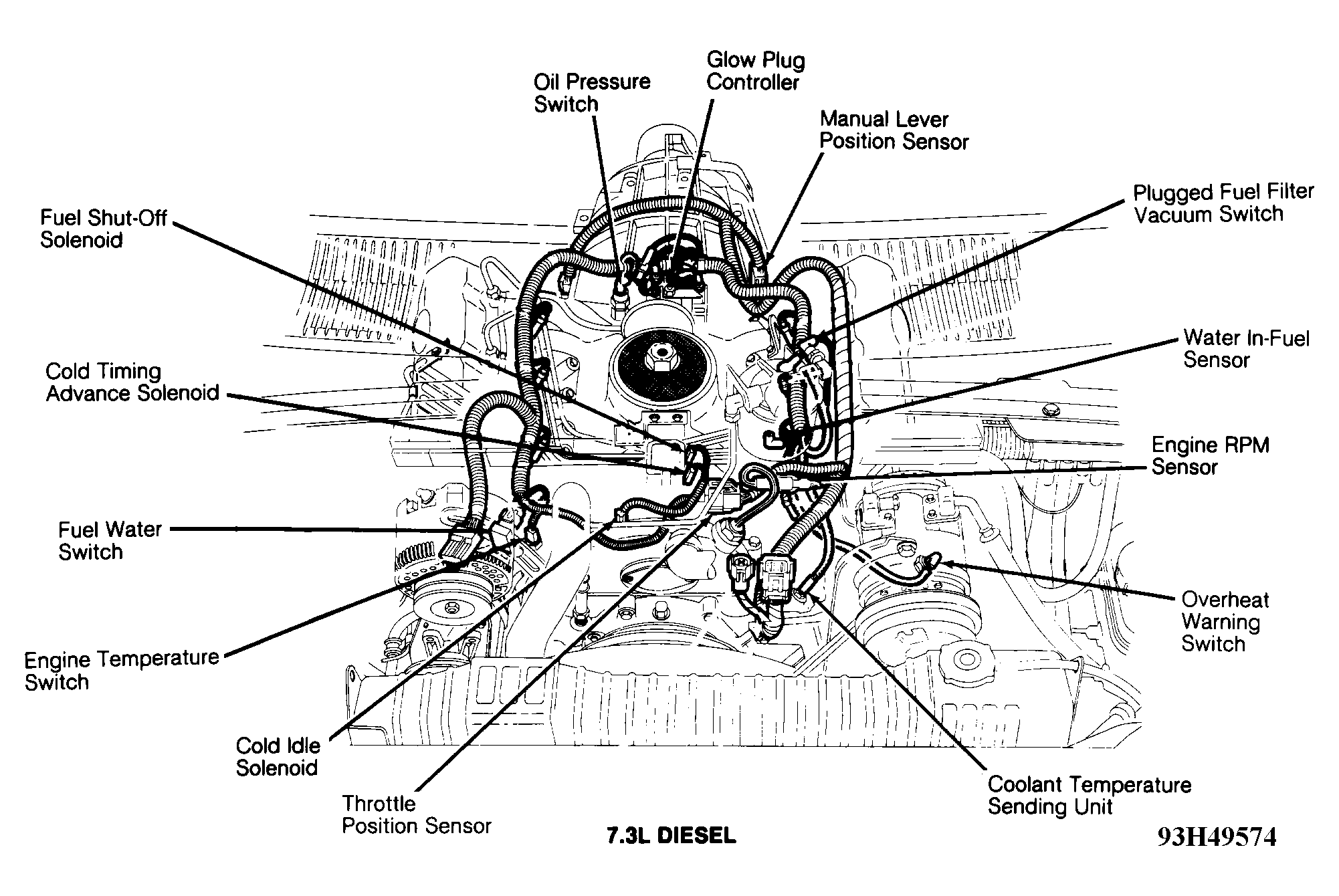

| (7.3L Diesel) | On starter relay. See Figure . | |
| Ignition Control Module (ICM) | ||
| (7.5L) | On left rear of engine bay. See Figure . | |
| Illuminated Entry Module | Behind left "B" pillar. | |
| Memory Lock Module | Behind left "B" pillar. | |
| Programmable Speedometer/Odometer Module (PSOM) | Behind left side of dash. | |
| Remote Convenience Module | Behind left "B" pillar. | |
| Warning Chime Module | Behind left side of dash. | |
| Warning Light Module (7.3L) | Behind left side of dash. | |
| Windshield Wiper Module | Behind right side of dash. | |
