Repair and Diagnosis: Electrical: Starter: Wiring Diagram

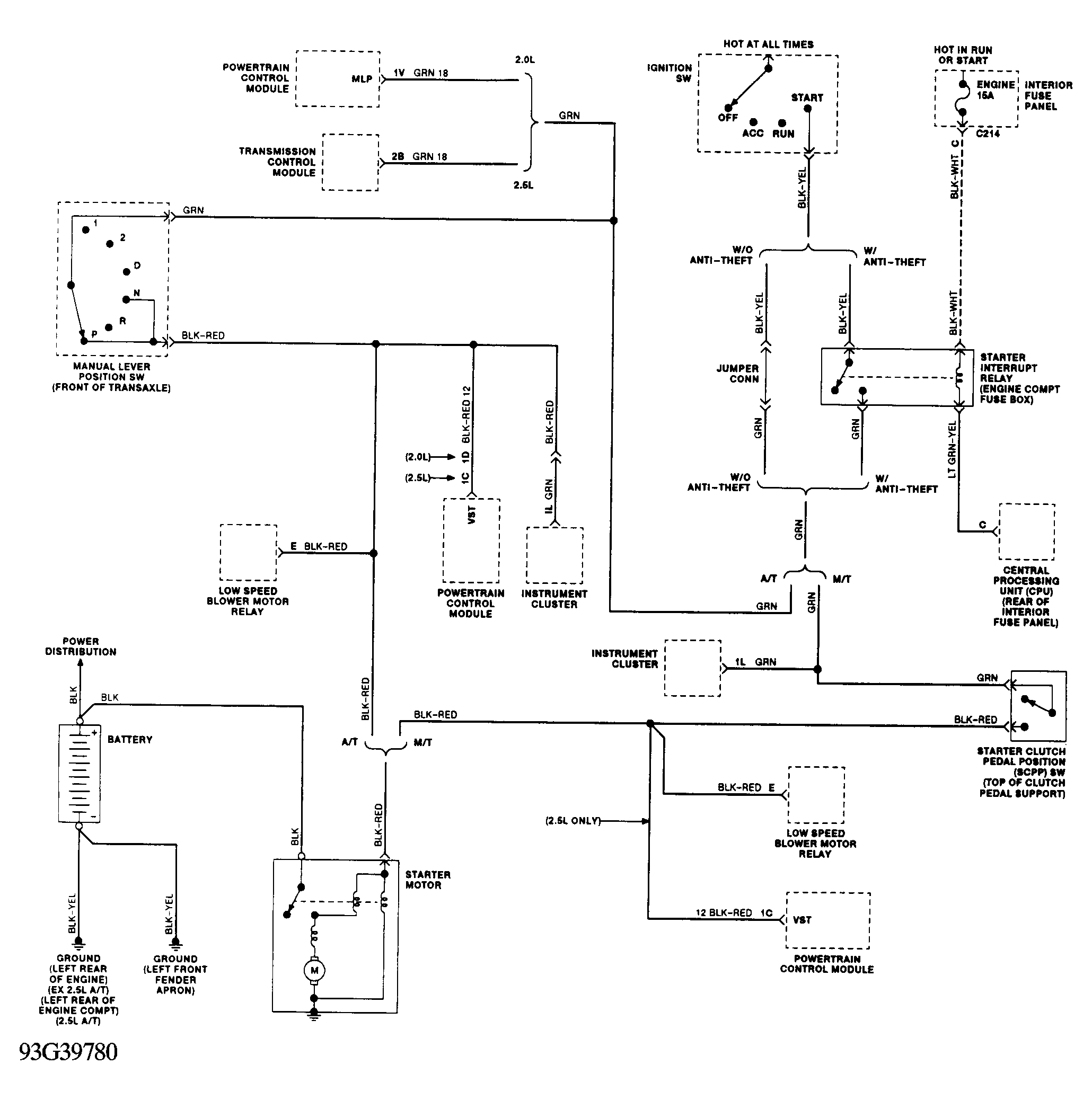

Fig 1: Starter System Wiring Diagram

G93G39780
