Home >> Ford >> 1993 >> Probe Base, Standard >> Repair and Diagnosis >> Accessories & Equipment >> Cruise Control Systems >> Wiring Diagram

Cruise Control Systems: Wiring Diagram

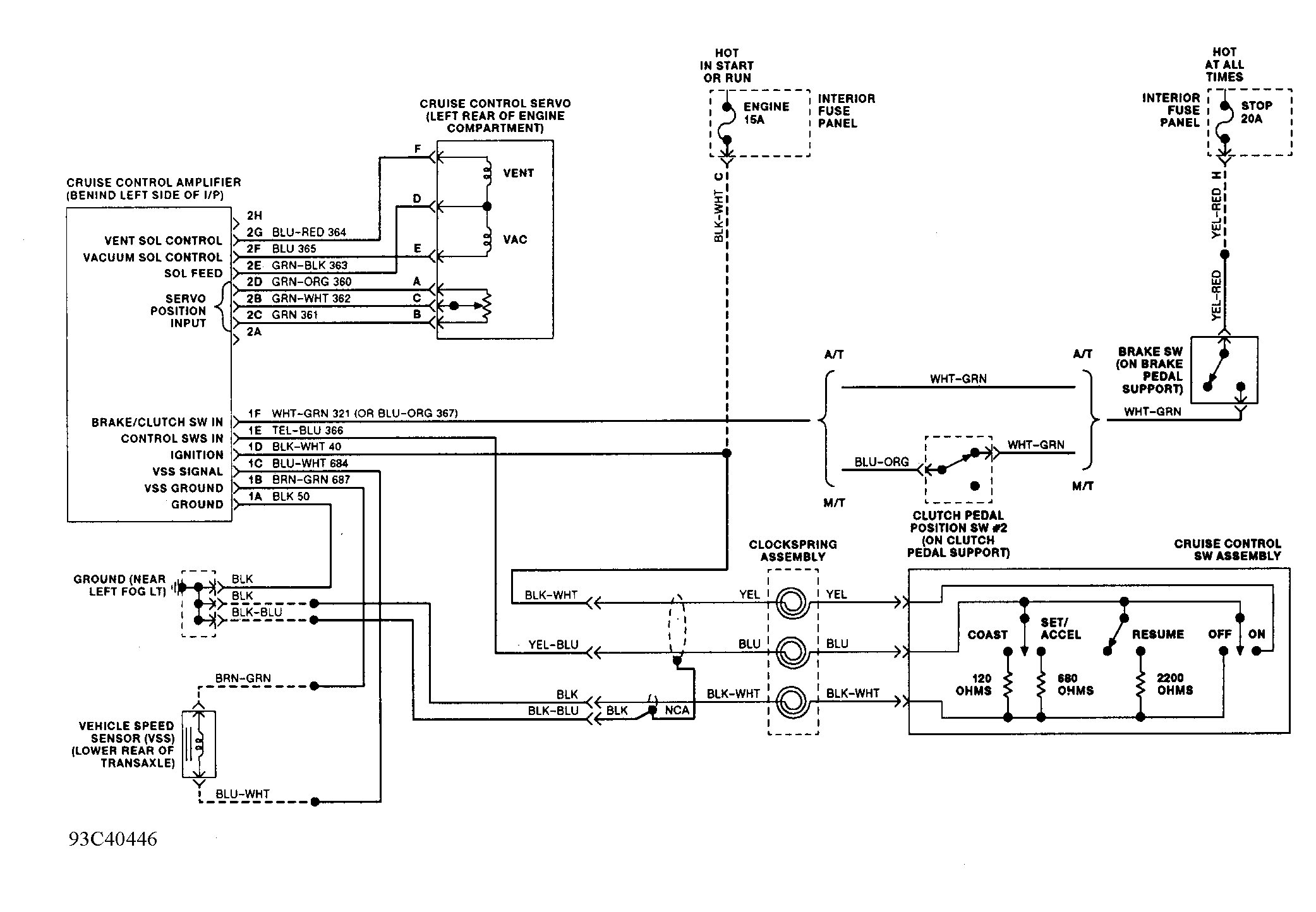

Fig 1: Cruise Control Wiring Diagram (Probe)

G93C40446
