Data Link Connectors

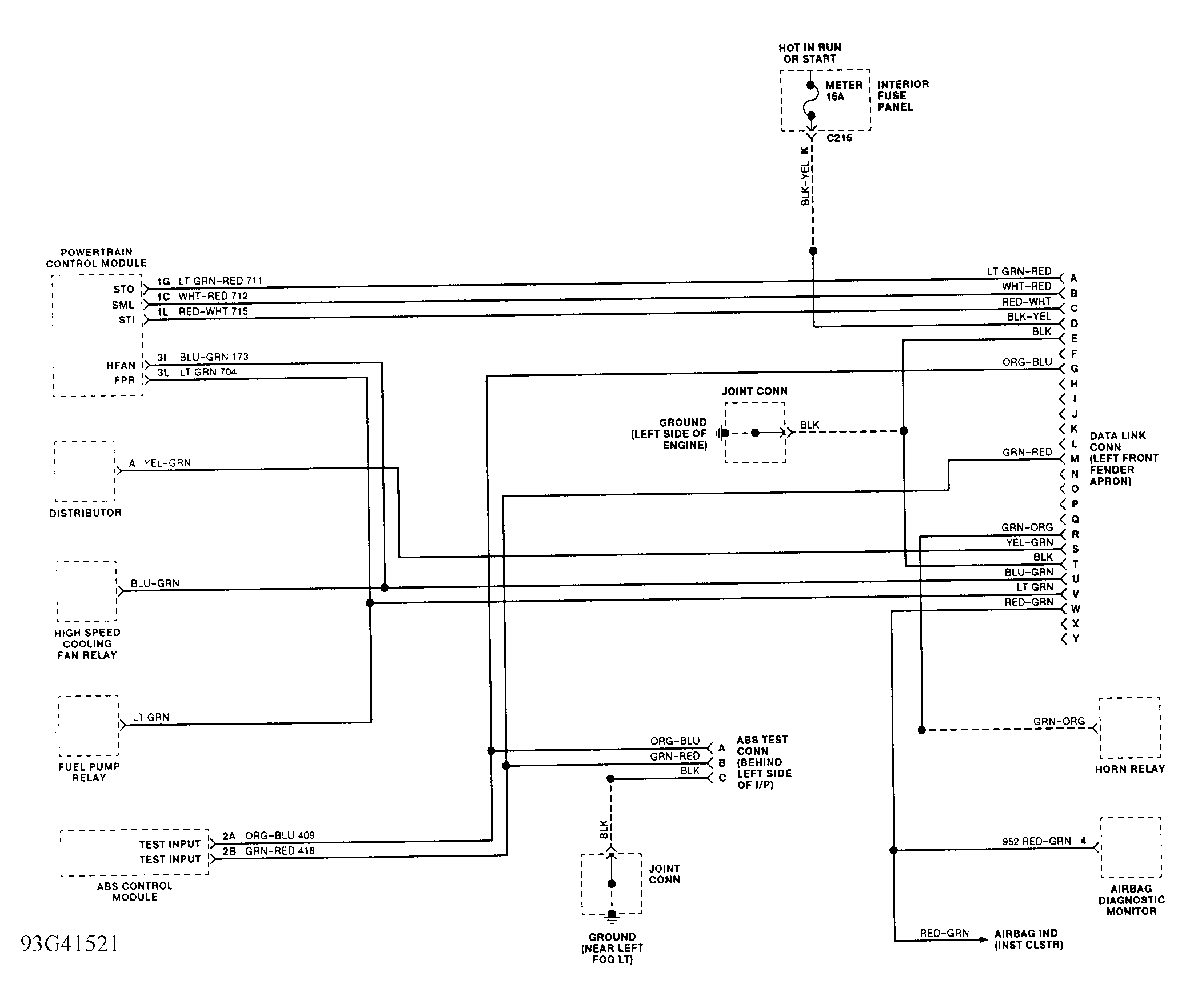

Fig 1: Data Link Connectors (2.0L A/T)

G93G41521

Fig 2: Data Link Connectors (2.0L M/T)

G93I41523

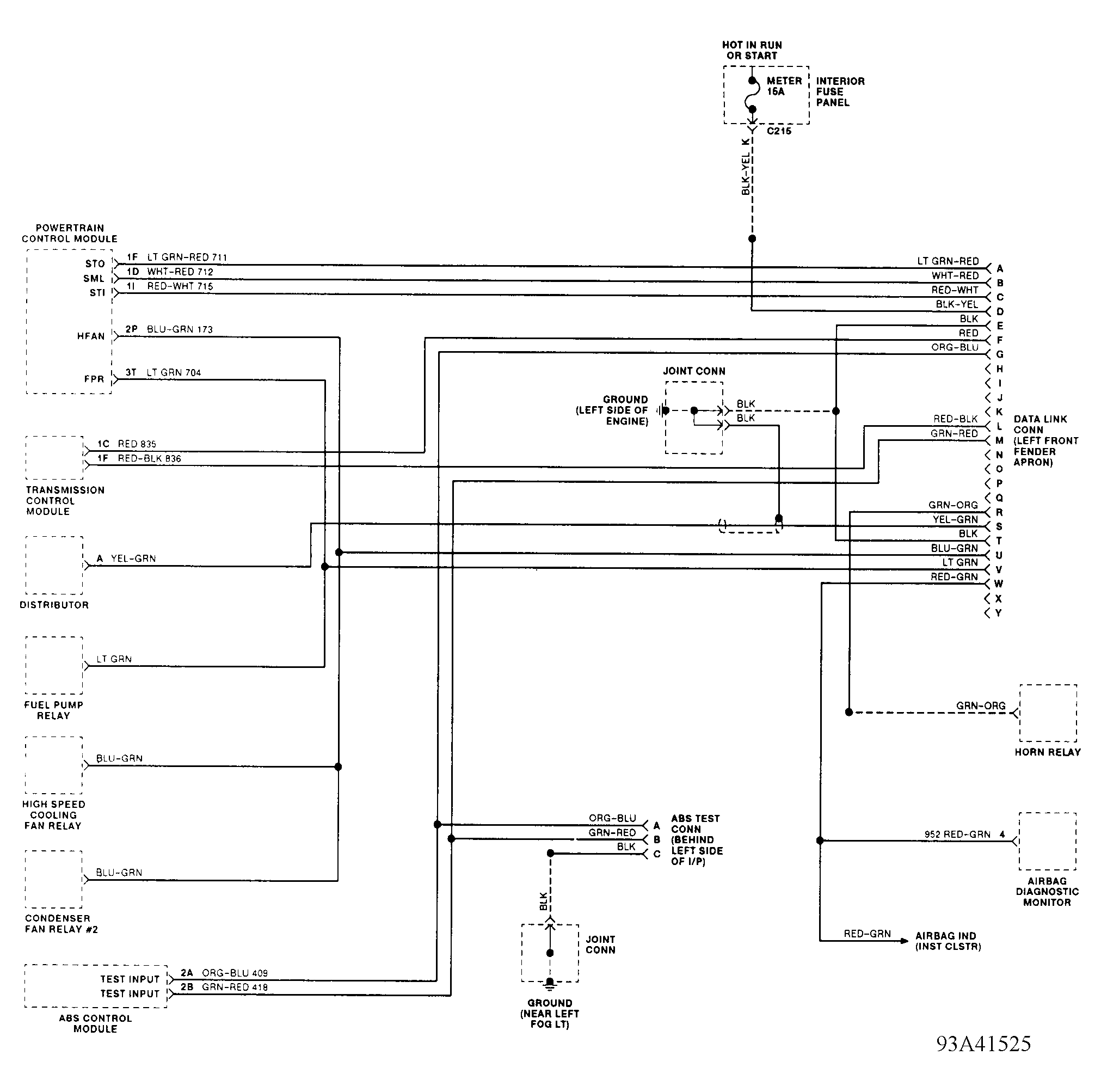

Fig 3: Data Link Connectors (2.5L)

G93A41525
