Probe Base, Automatic
>>
Repair and Diagnosis
>>
Body & Frame
>>
Seats - Power
>>
Wiring Diagrams
Wiring Diagrams

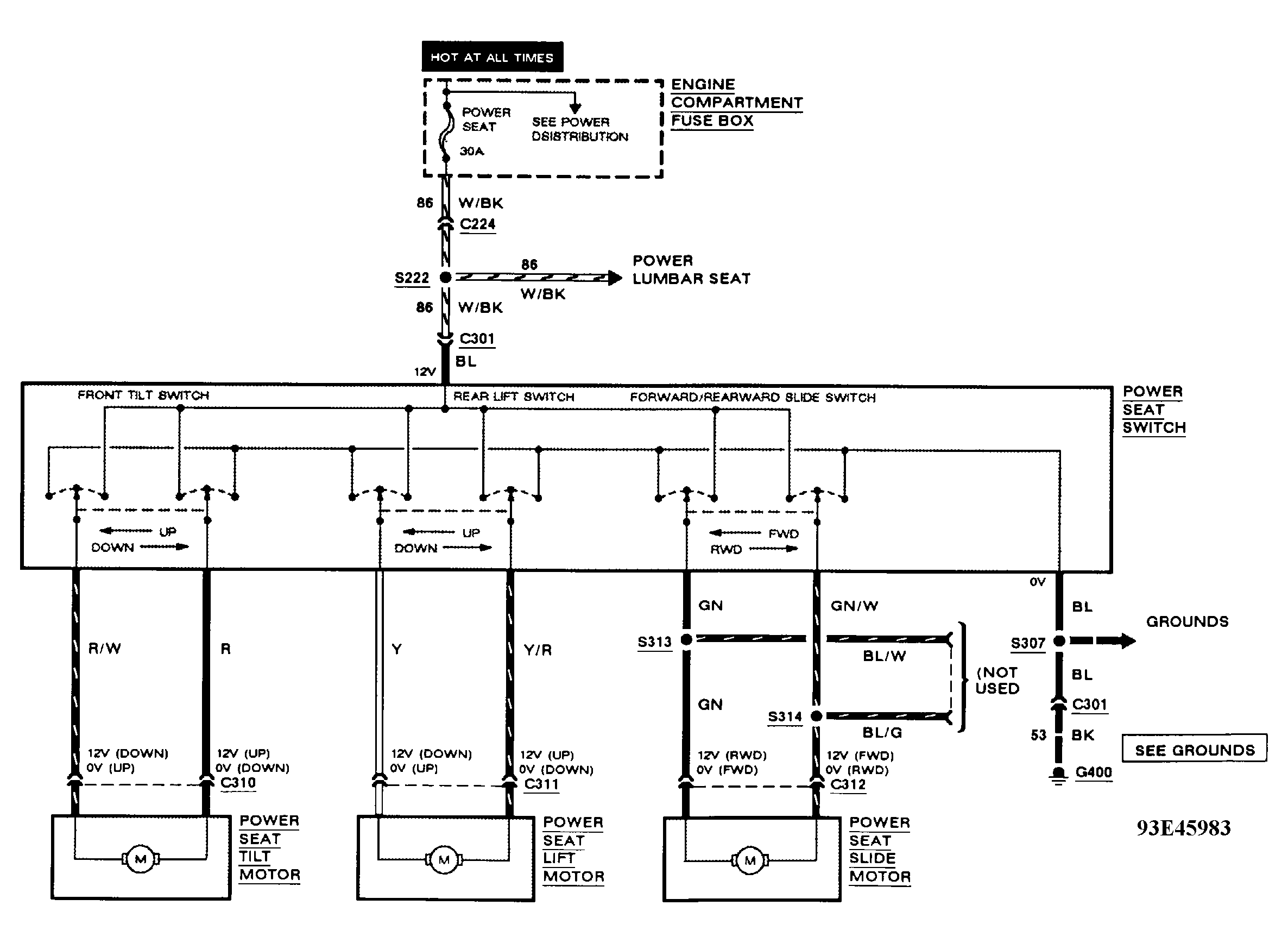

Fig 1: Power Seat Wiring Diagram (Probe)
Courtesy of FORD MOTOR CO.

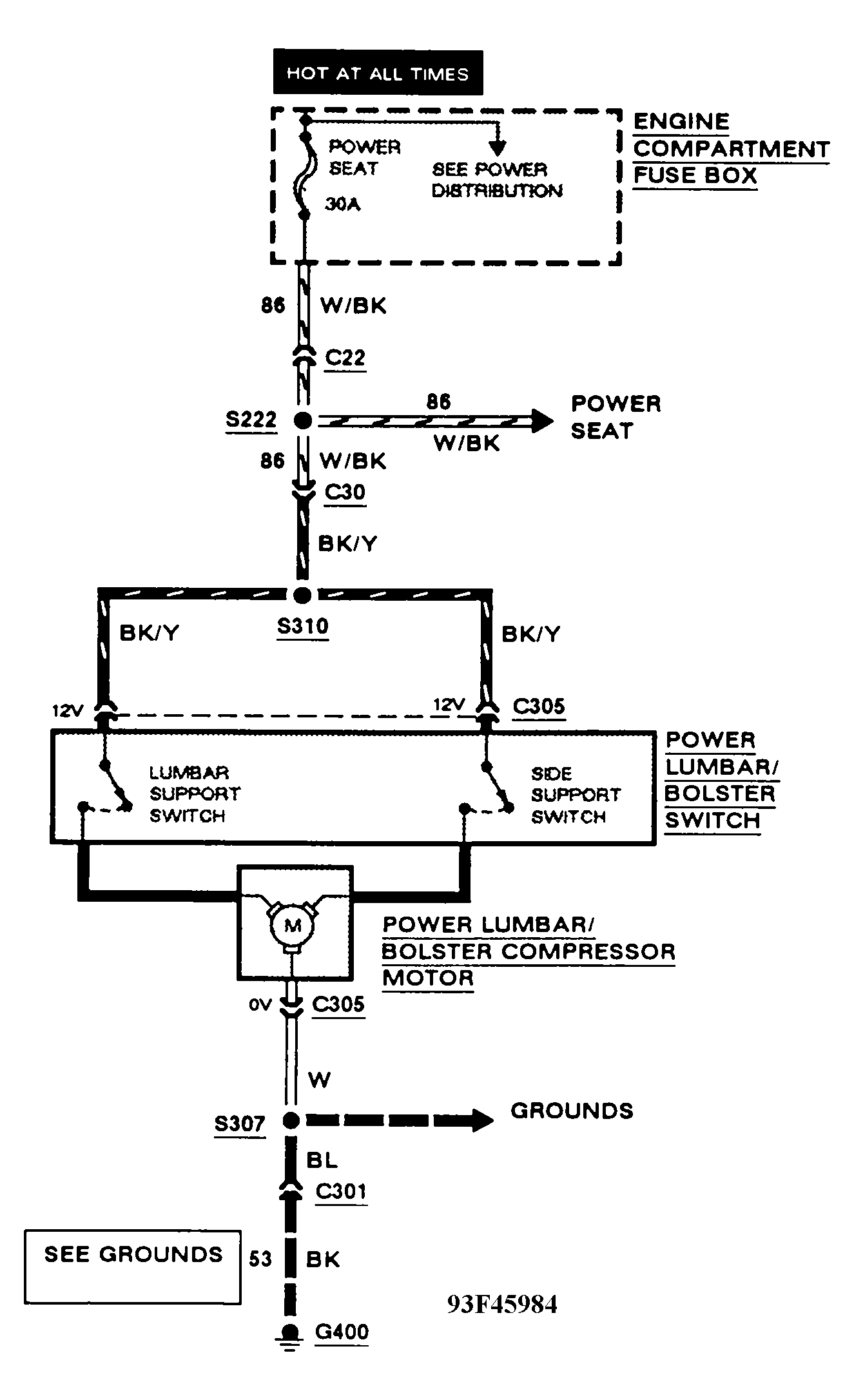

Fig 2: Power Lumbar Seat Wiring Diagram (Probe)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
