Probe Base, Automatic
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Keyless Entry System - Remote
>>
Wiring Diagrams
Wiring Diagrams

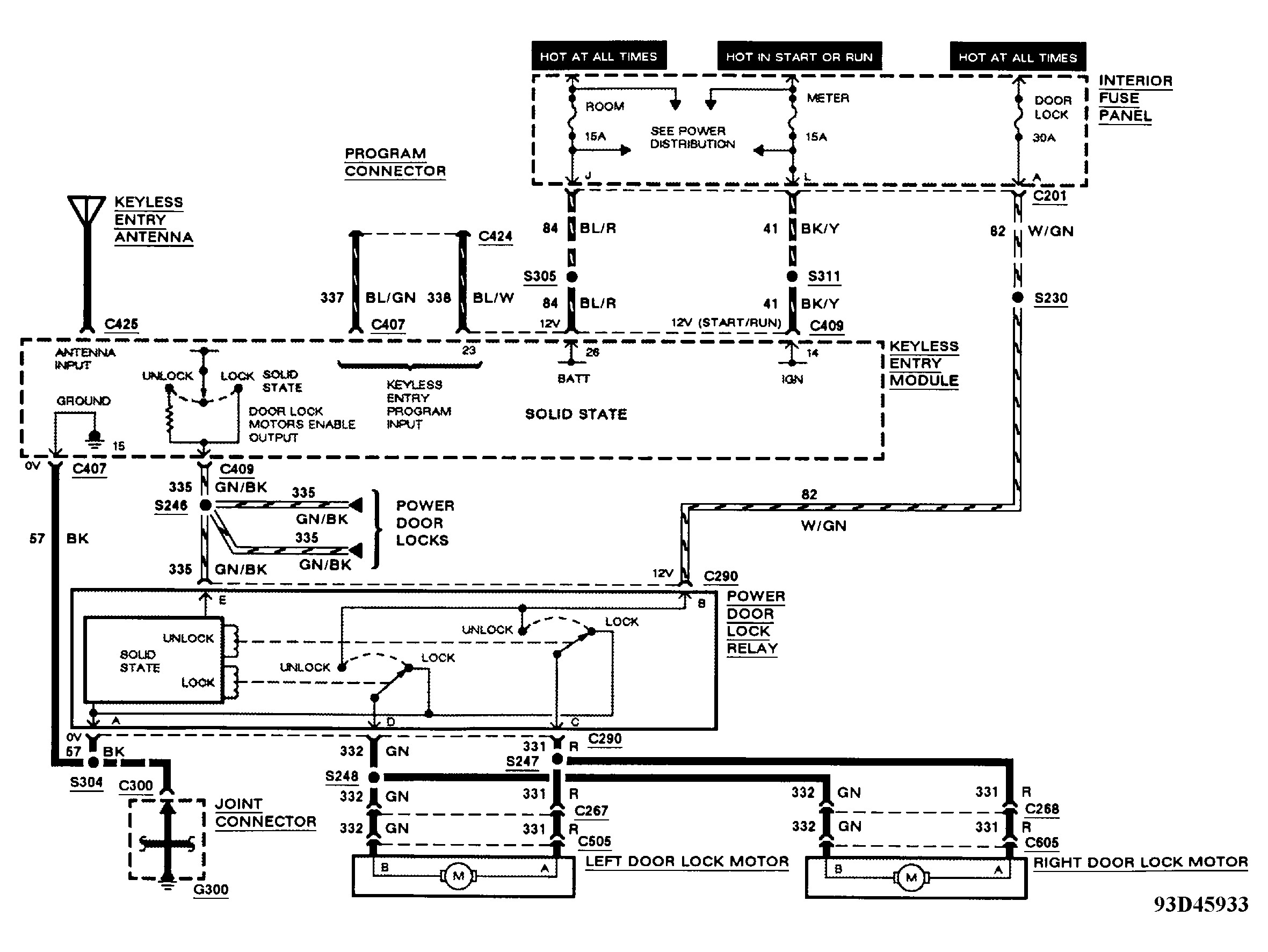

Fig 1: Remote Keyless Entry Wiring Diagram (1 Of 2)
Courtesy of FORD MOTOR CO.

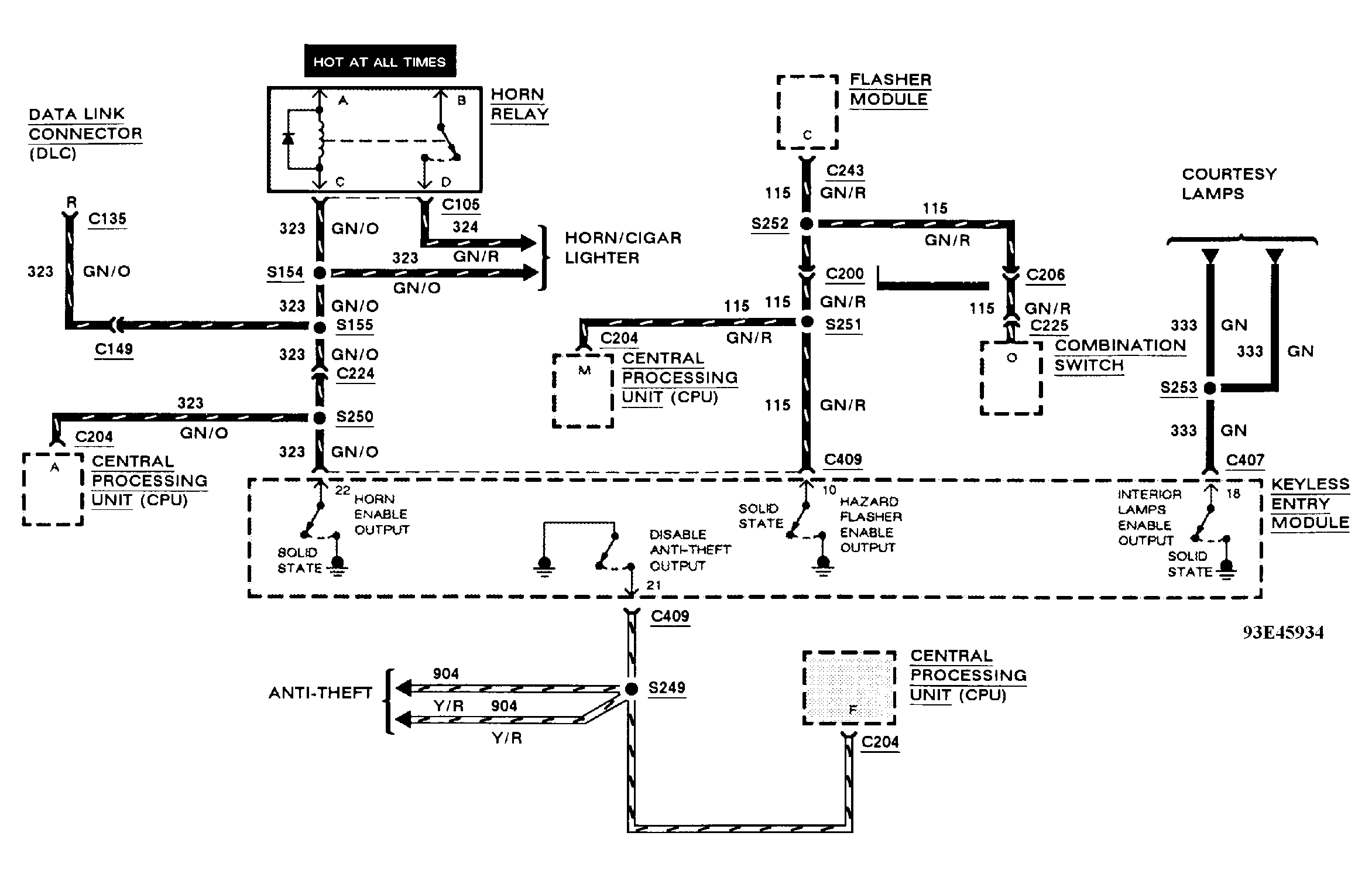

Fig 2: Remote Keyless Entry Wiring Diagram (2 Of 2)
Courtesy of FORD MOTOR CO.
