Code 24, Rear SAFING Sensor Circuit Open Or Low Resistance In Front Impact Sensor: Notes

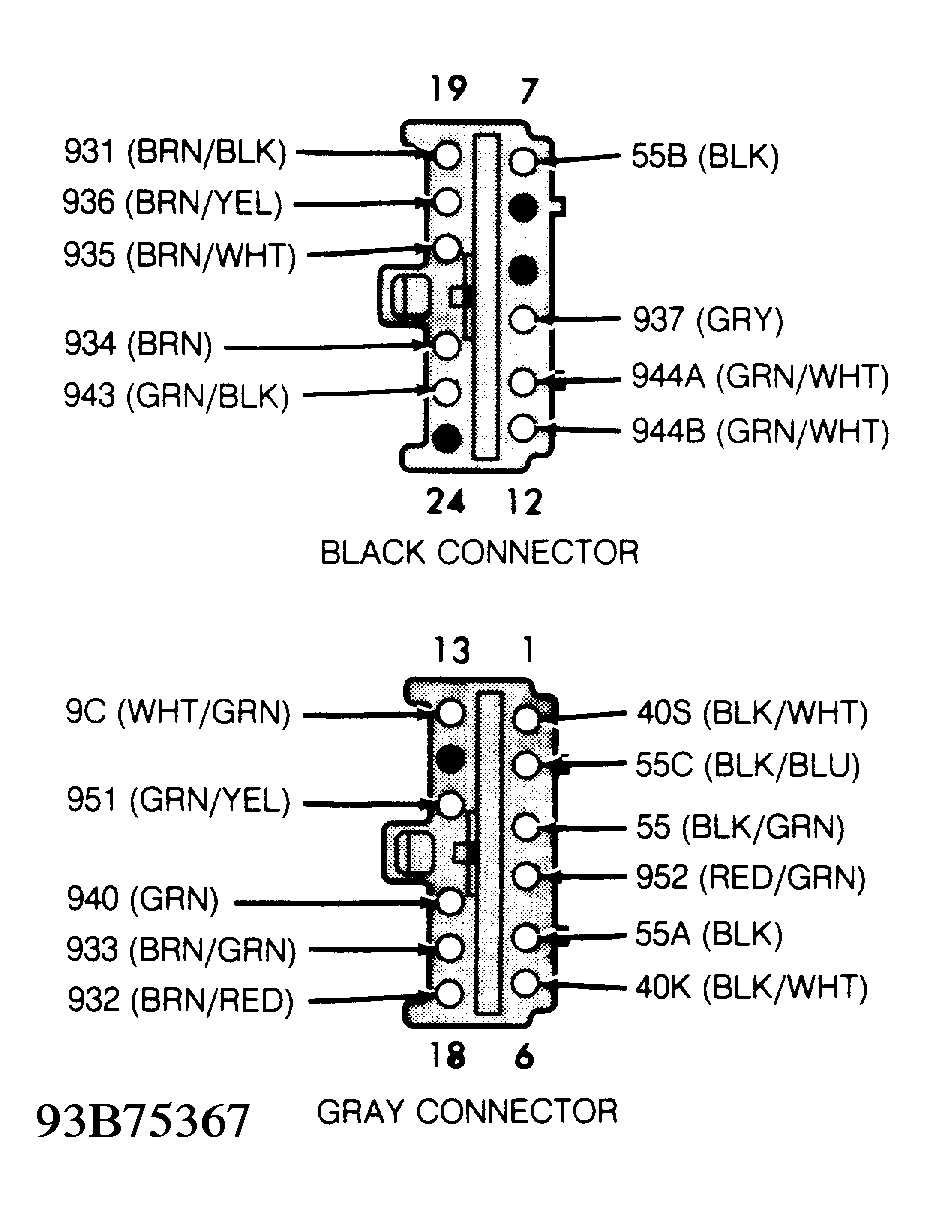

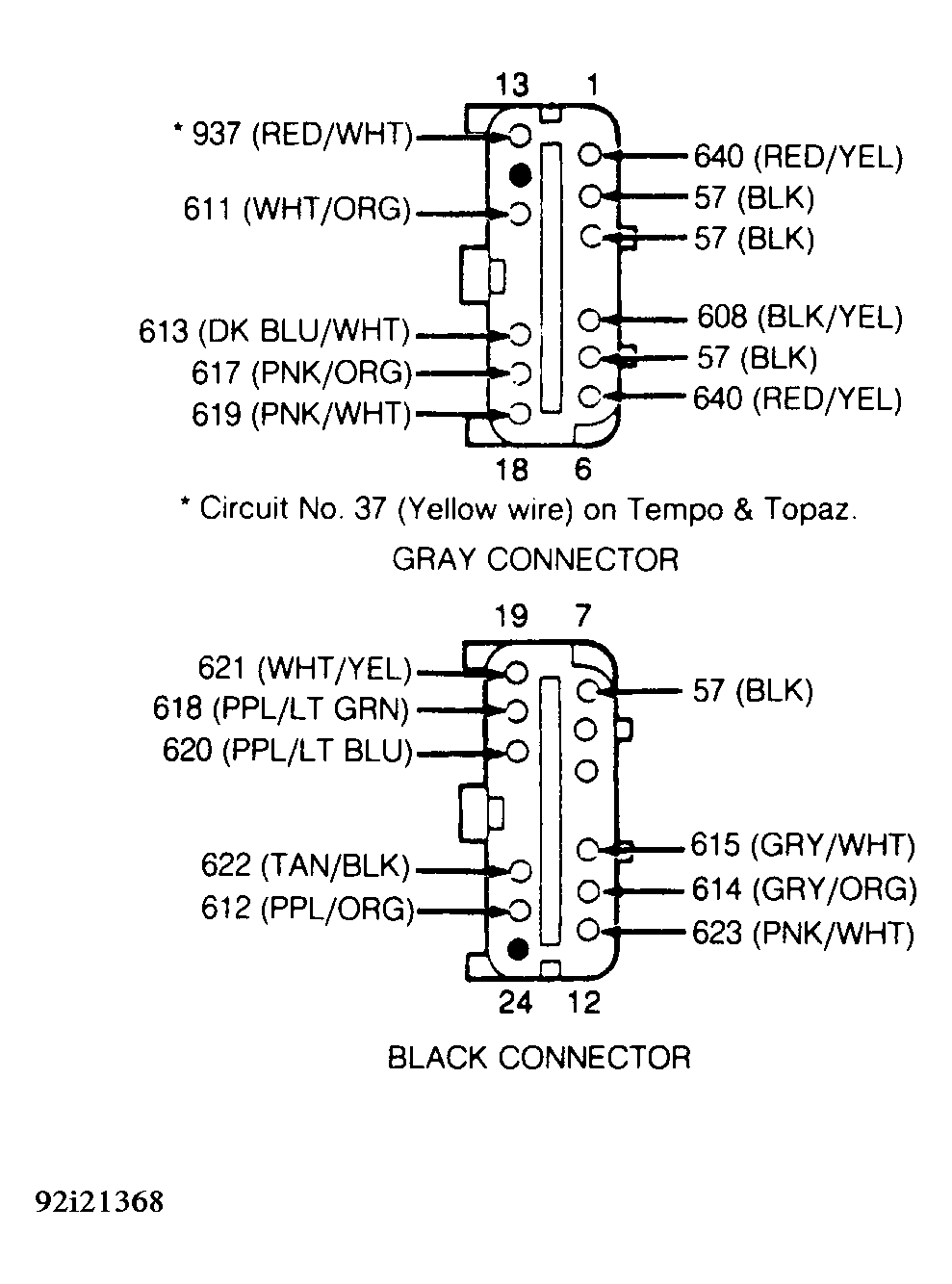

NOTE: Before proceeding, follow air bag service precautions. See SERVICE PRECAUTIONS  . After servicing has been performed, recheck AIR BAG warning light for codes with Air Bag Simulator (105-00010 on all models except Probe or 105-00009 on Probe) still in place of air bag module. If system checks okay, install air bag module and reactivate air bag system. To identify circuits and wire colors, see WIRING DIAGRAMS  . To identify diagnostic monitor connector terminals, see Figure or Figure .
