Service Code-To-Test Reference Menu

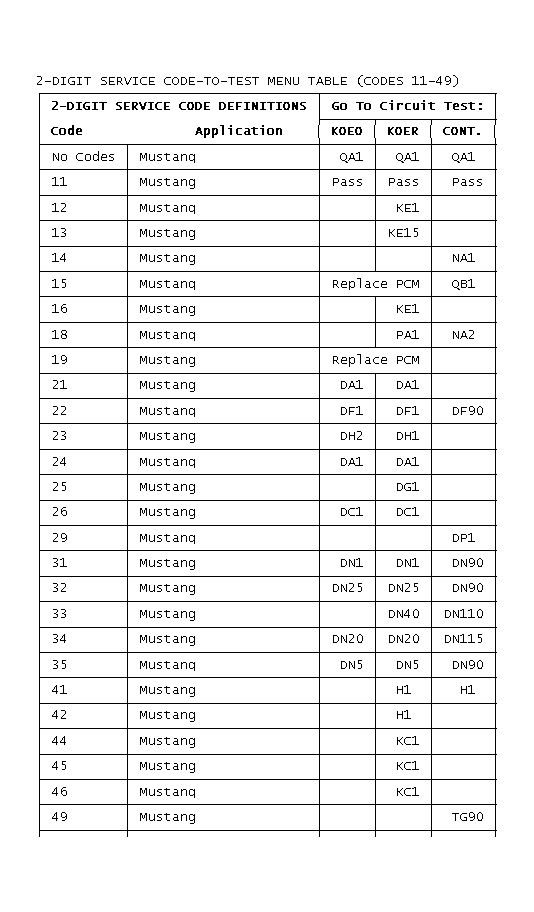

Fig 1: 2-DIGIT SERVICE CODE-TO-TEST MENU TABLE (CODES 11-49)

GB0021760

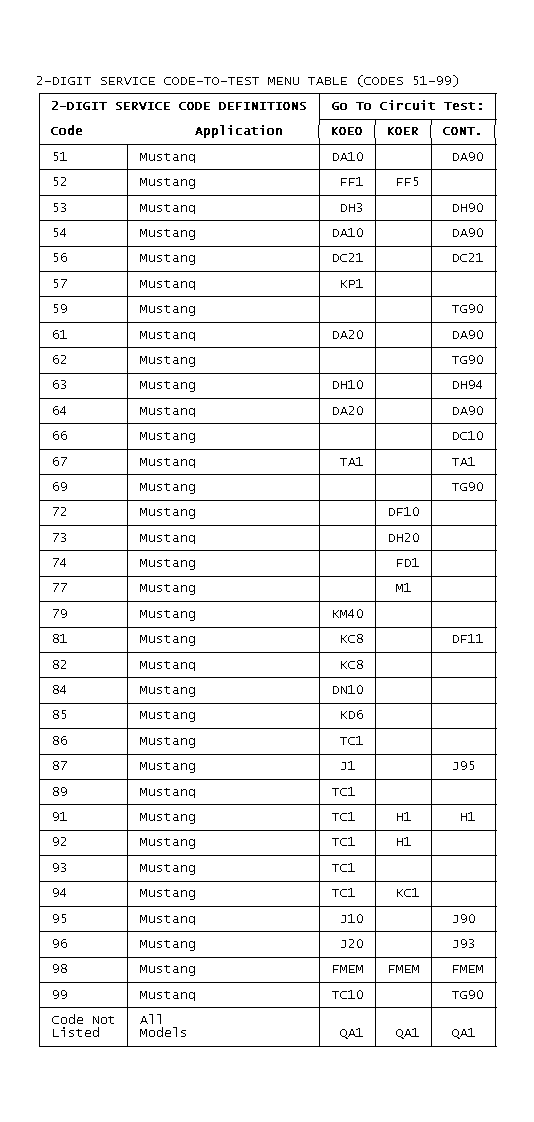

Fig 2: 2-DIGIT SERVICE CODE-TO-TEST MENU TABLE (CODES 51-99)

GB0021761
