Power Distribution Box Identification (1992-94)
WARNING:
Always disconnect battery ground cable before servicing high-current fuses. It is recommended that high-current fuses be replaced by a qualified technician.

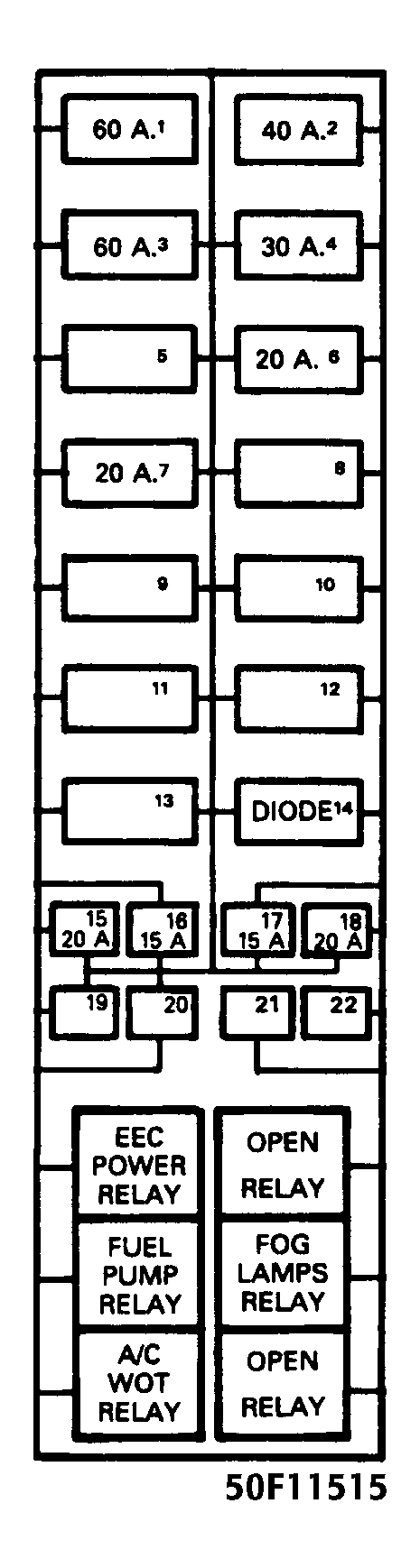

Fuse & Circuit Breaker Identification
- 1 - 60 Amp Ignition
- 2 - 40 Amp Fuse Panel, Headlights
- 3 - 60 Amp Fuse Panel
- 4 - 30 Amp PCM Power
- 5 - 50 Amp Blower Motor
- 6 - 20 Amp Power Locks
- 7 - 20 Amp 4-Wheel Drive
- 8 - 60 Amp Power Seat
- 9 - 30 Amp ABS System
- 10 - 30 Amp ABS System
- 11 - 40 Amp Heated Backlight
- 12 - Not Used
- 13 - Diode ABS System
- 14 - Diode EEC System
- 15 - 20 Amp Foglights
- 16 - 15 Amp Alternator
- 17 - 15 Amp Underhood Light, Daytime Running Lights
- 18 - 20 Amp Fuel Pump
- 19 - 20 Amp Trailer Tow
- 20 - Not Used
- 21 - Not Used
- 22 - Not used
