Pinpoint Tests

NOTE: Test procedures require Breakout Box (014-00322) and ABS Adapter (T90P-50-ALA). See Figure for WARNING LIGHT SYMPTOM SEQUENCE CHART. See Fig 1 -12 for pin locations and circuit identification.

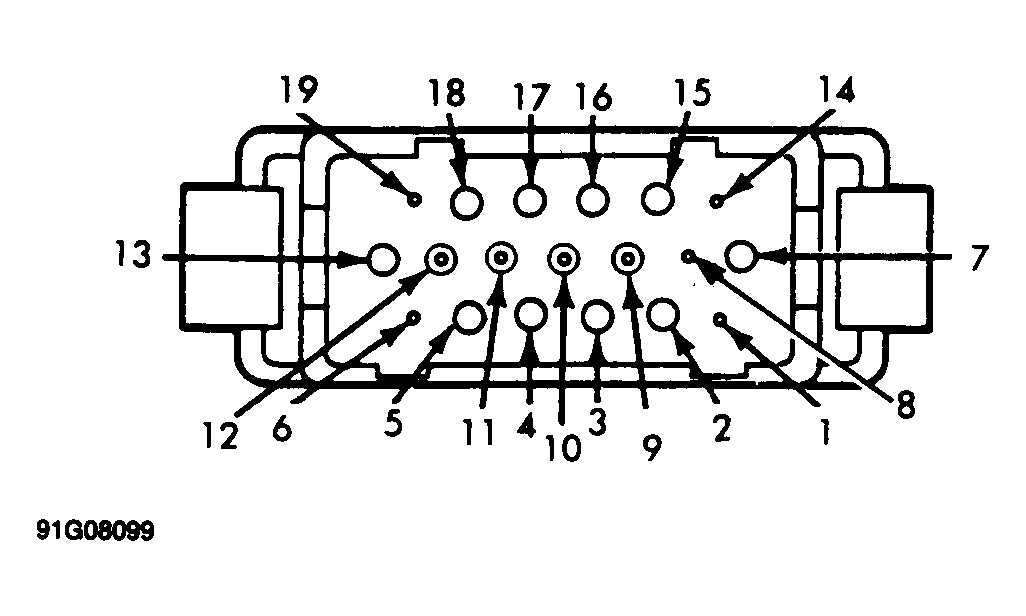

Fig 1: 19-Pin Valve Body Connector Terminal ID

Courtesy of FORD MOTOR CO.

Fig 2: 4-Pin Pump Motor Relay Connector ID

Courtesy of FORD MOTOR CO.

Fig 3: 7-Pin Pump Motor Relay Connector ID

Courtesy of FORD MOTOR CO.

Fig 4: Pump Motor Relay Terminal ID

Courtesy of FORD MOTOR CO.

Fig 5: Main Power Relay Terminal ID

Courtesy of FORD MOTOR CO.

Fig 6: Master Cylinder Fluid Reservoir Cap Terminal ID

Courtesy of FORD MOTOR CO.
