Home >> Ford >> 1992 >> Thunderbird Base, 5.0 T >> Repair and Diagnosis >> Steering >> Power Steering >> Steering System - Variable Assist >> Wiring Diagram

Steering System - Variable Assist: Wiring Diagram

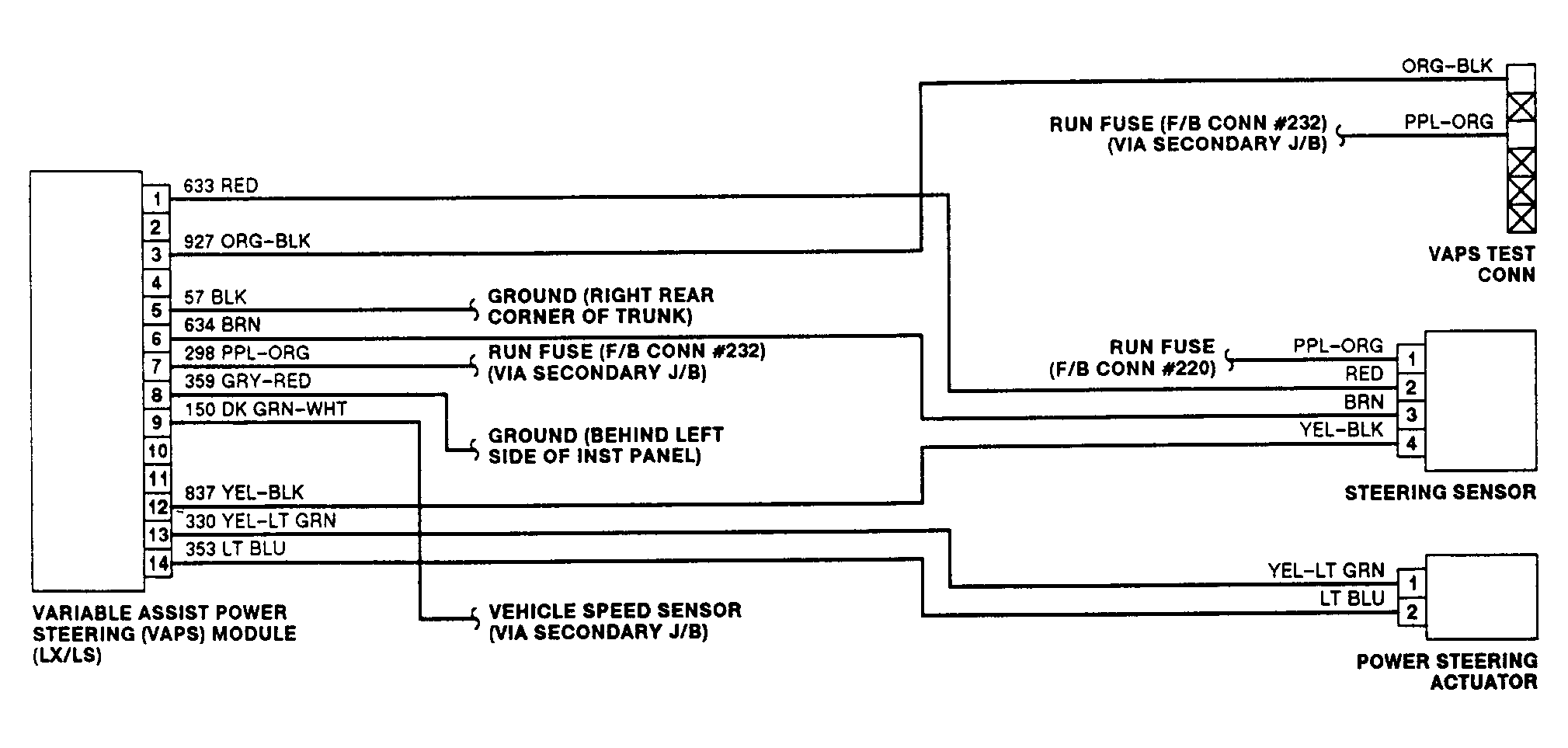

Fig 1: VAPS Wiring Diagram (Cougar LS & Thunderbird LX)

G92D03991
