Home >> Ford >> 1992 >> Thunderbird Base, 5.0 T >> Repair and Diagnosis >> Steering >> Manual Steering >> Steering System - Power >> Removal & Installation >> Steering Gear >> Notes

Steering Gear: Notes

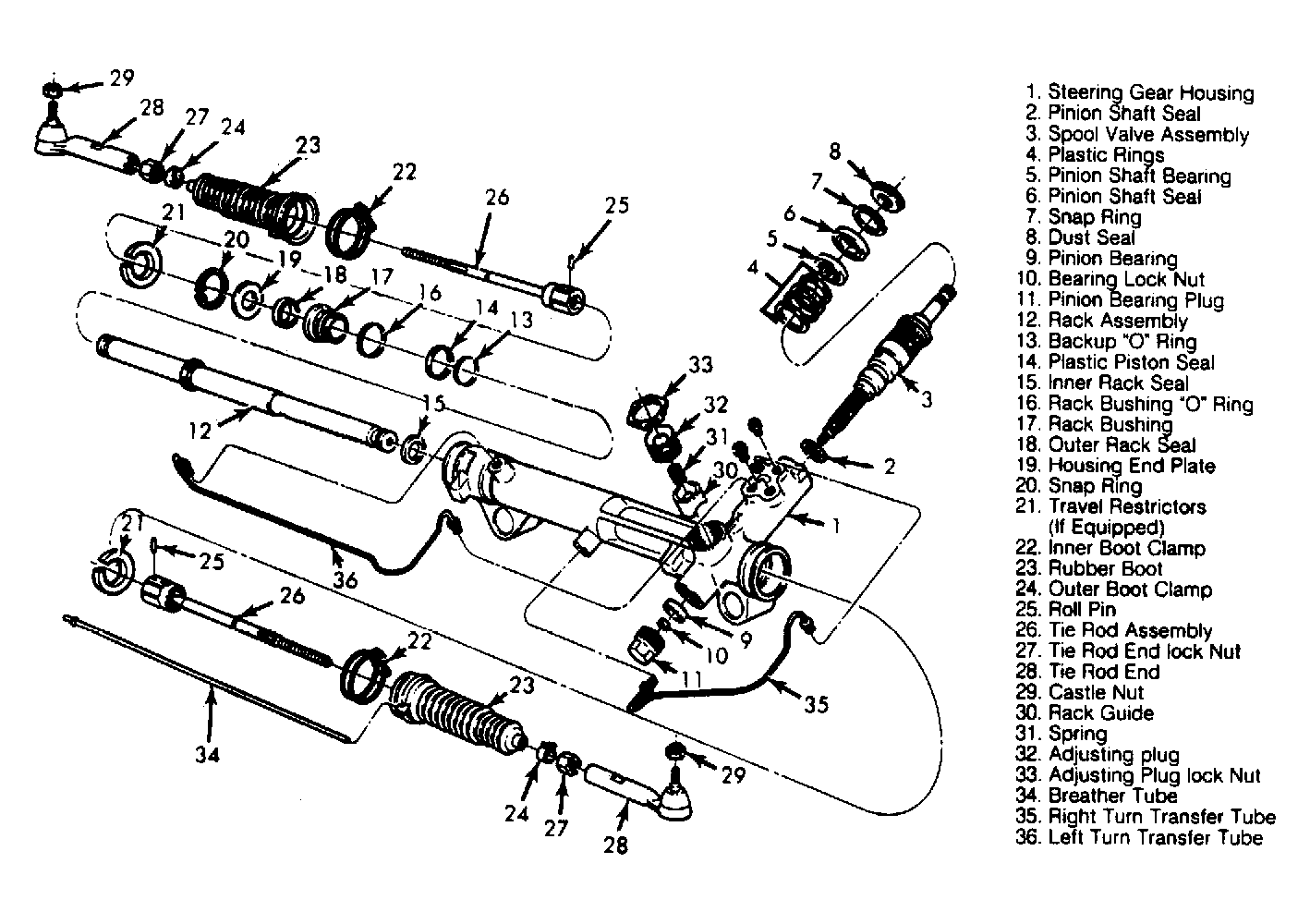

NOTE: For exploded view of steering gear assembly, see Figure -Figure .
