Thunderbird Base, 5.0 T
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Keyless Entry Systems
>>
Wiring Diagrams
Wiring Diagrams

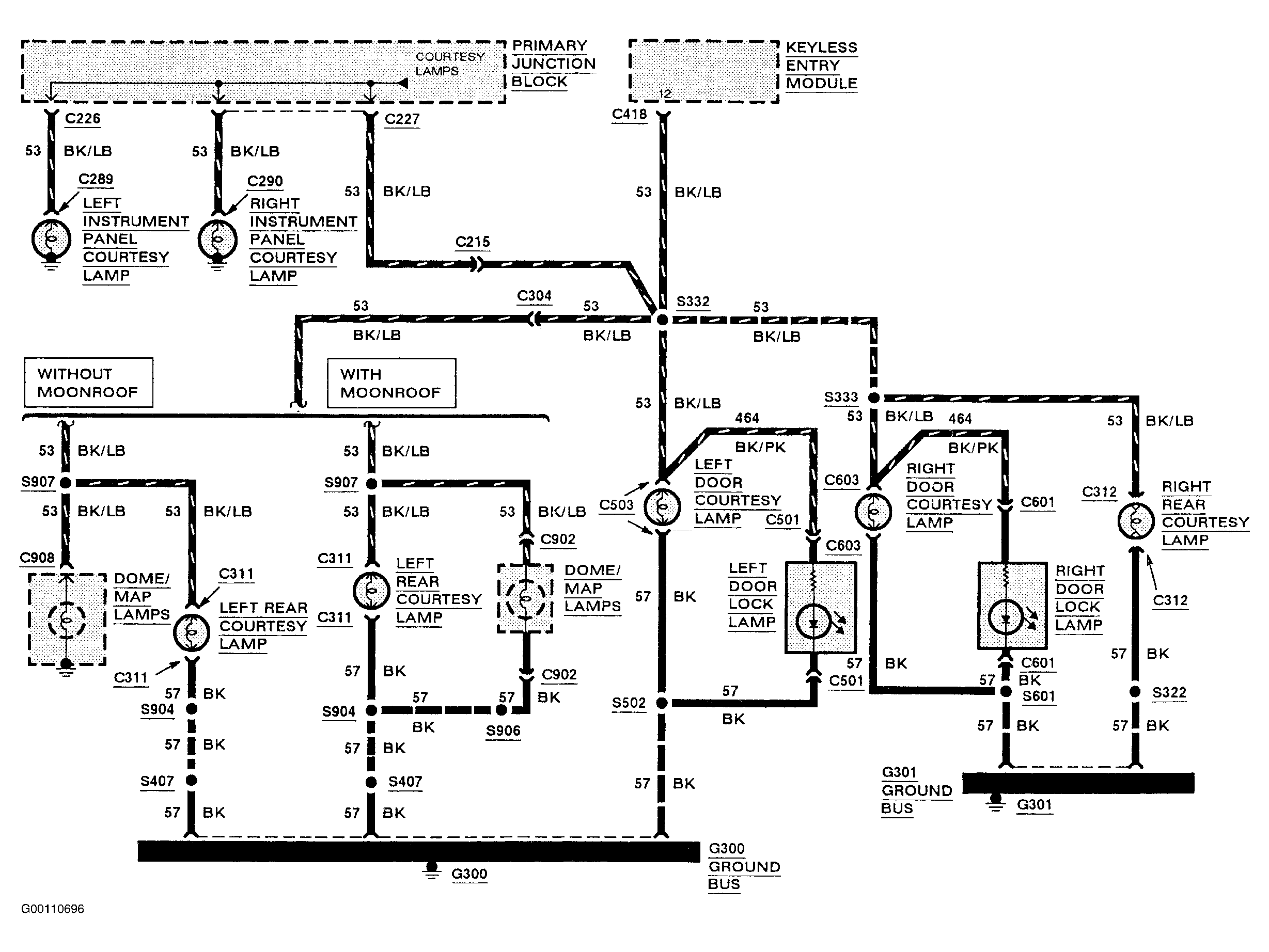

Fig 1: Keyless Entry System Wiring Diagram (1 Of 4)
Courtesy of FORD MOTOR CO.

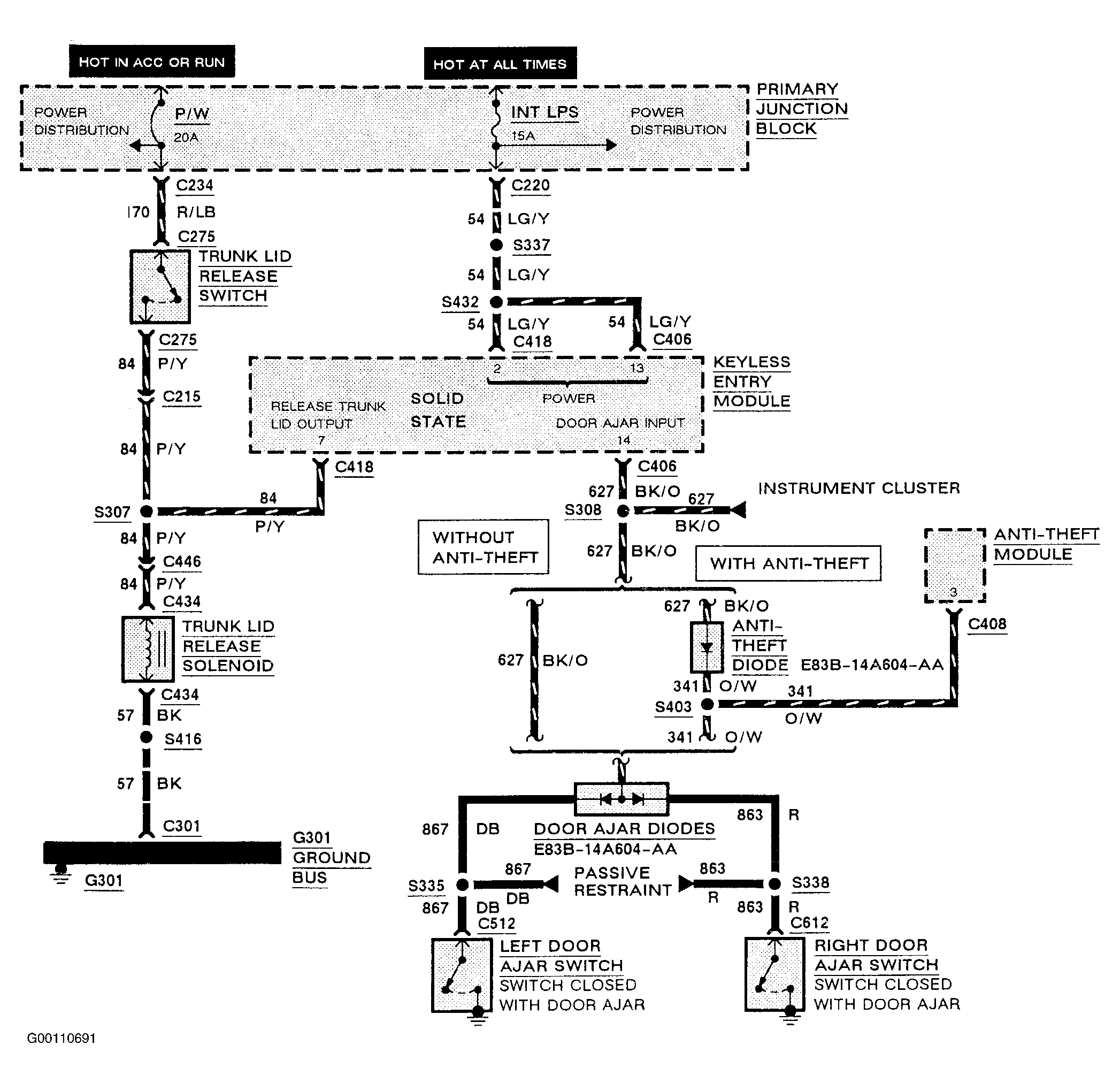

Fig 2: Keyless Entry System Wiring Diagram (2 Of 4)
Courtesy of FORD MOTOR CO.

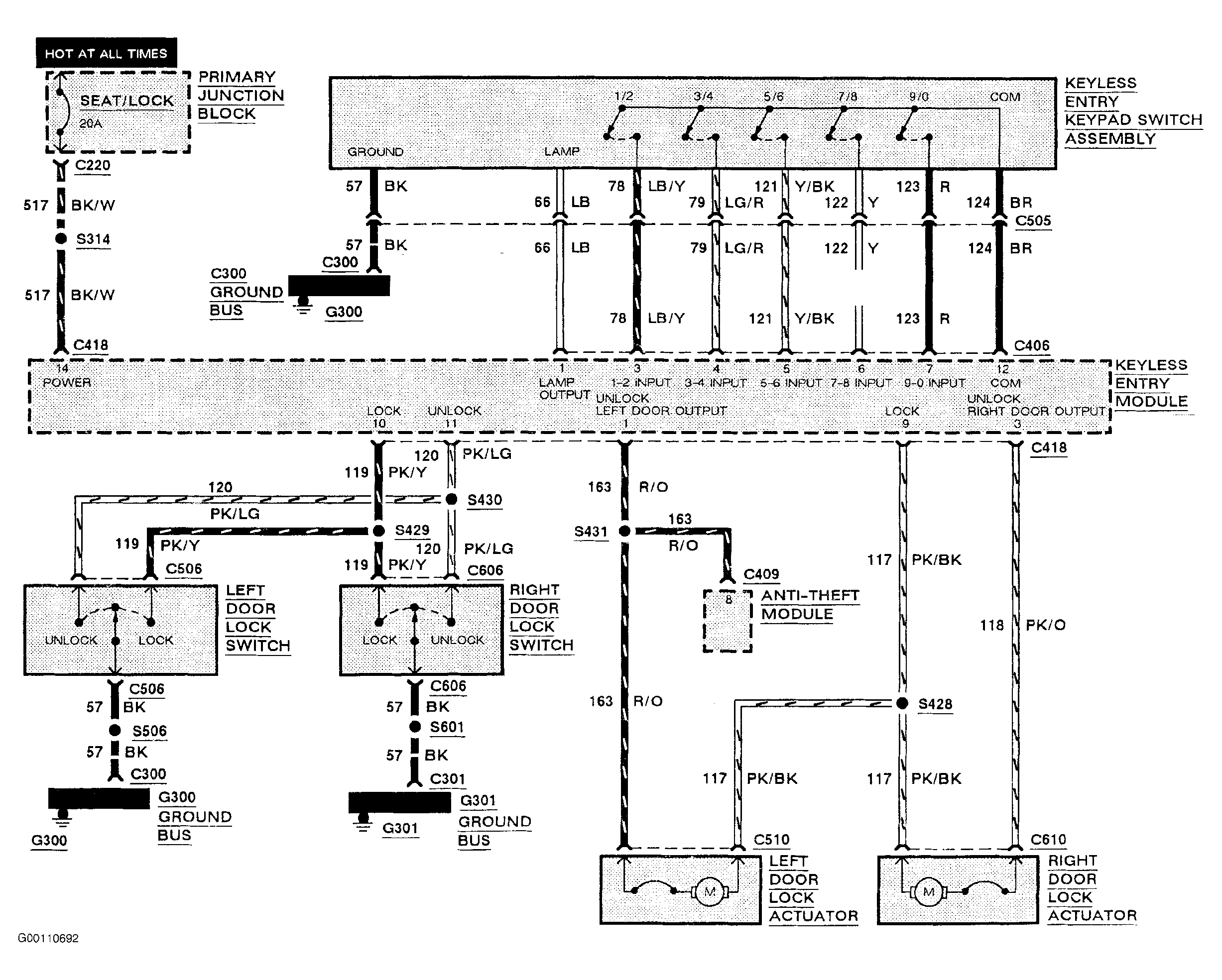

Fig 3: Keyless Entry System Wiring Diagram (3 Of 4)
Courtesy of FORD MOTOR CO.

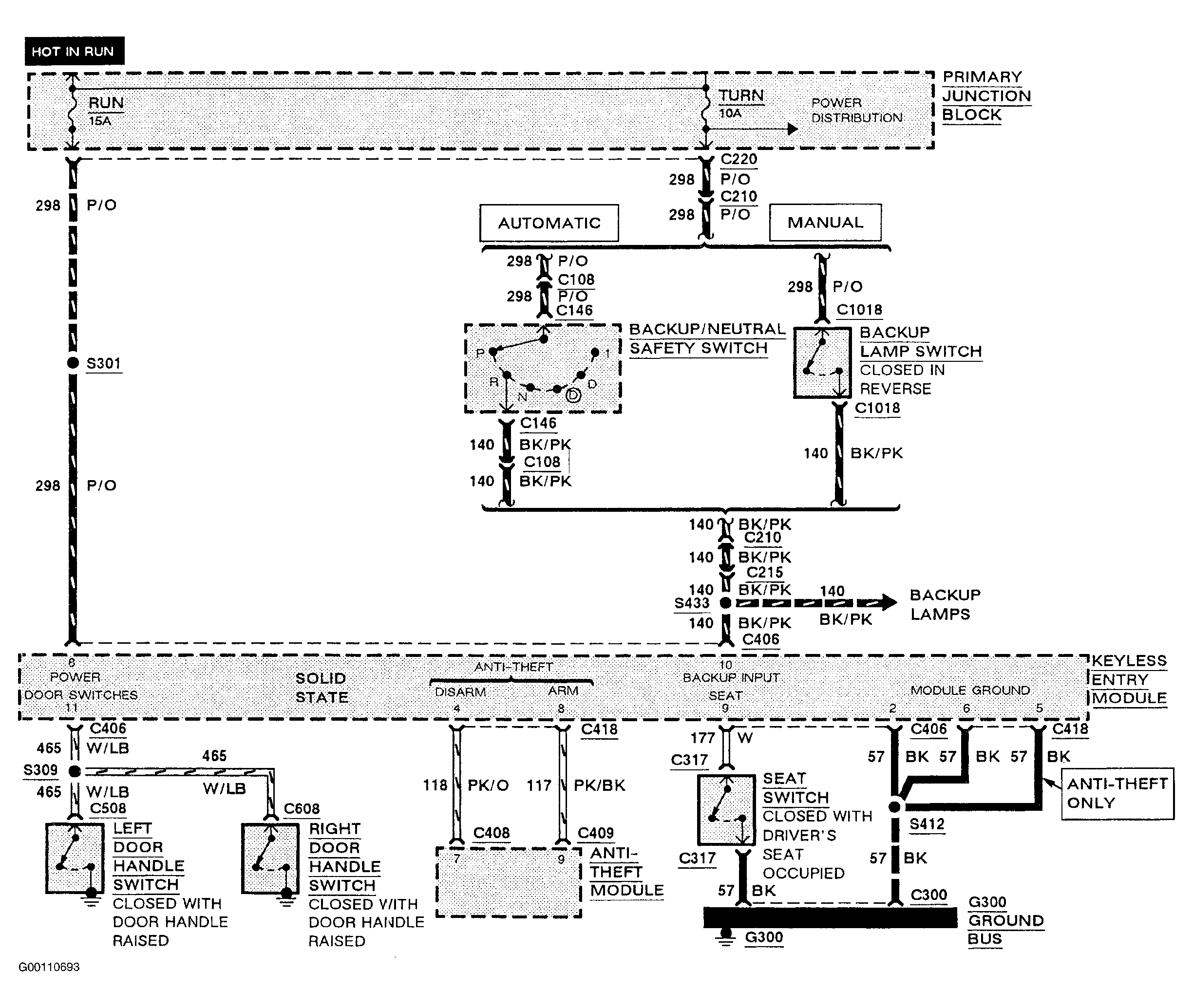

Fig 4: Keyless Entry System Wiring Diagram (4 Of 4)
Courtesy of FORD MOTOR CO.
