Steering System - Variable Assist: Wiring Diagram

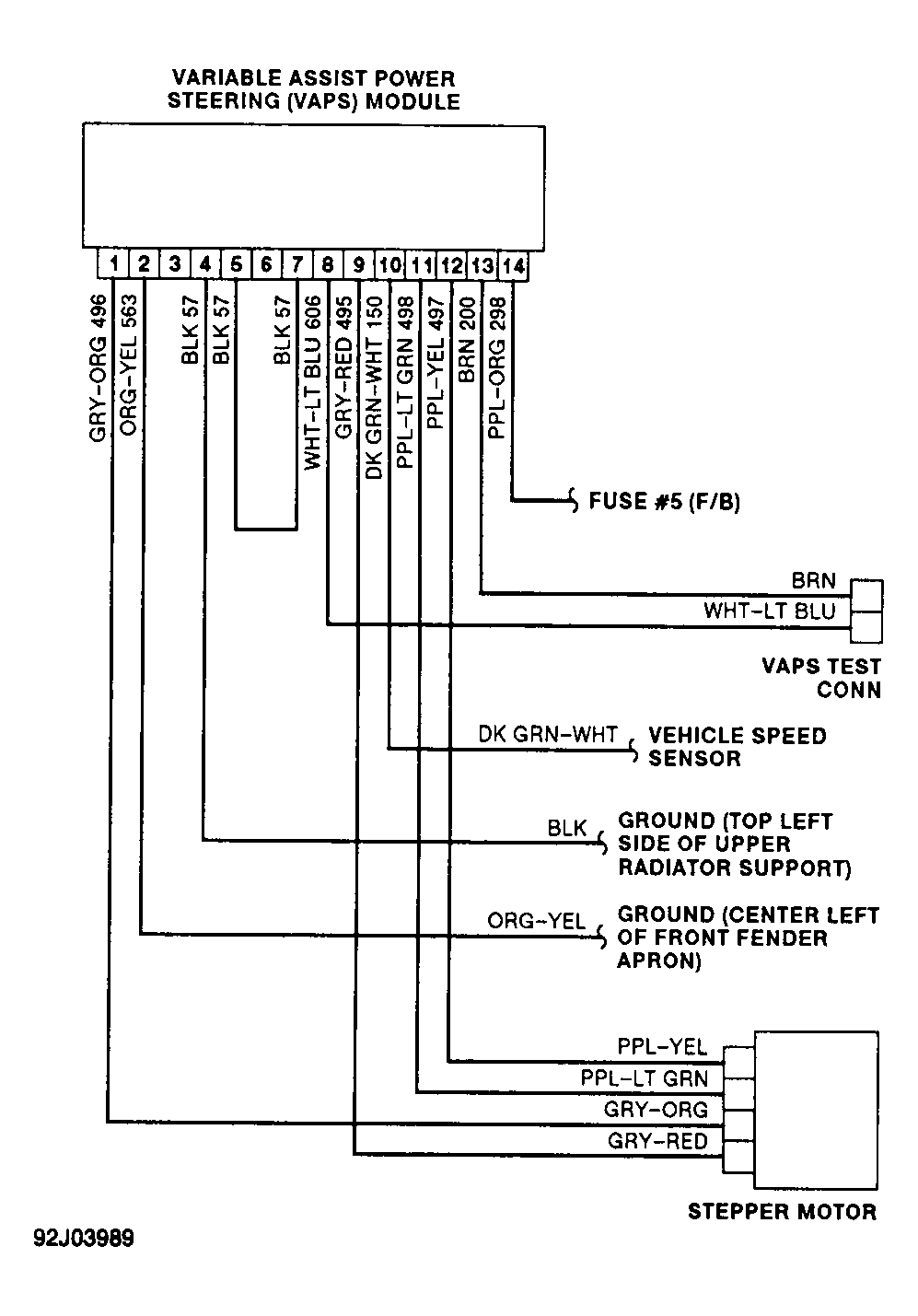

Fig 1: Variable Assist Power Steering (VAPS) Wiring Diagram (Sable & Taurus)

G92J03989
