Wiring Diagrams

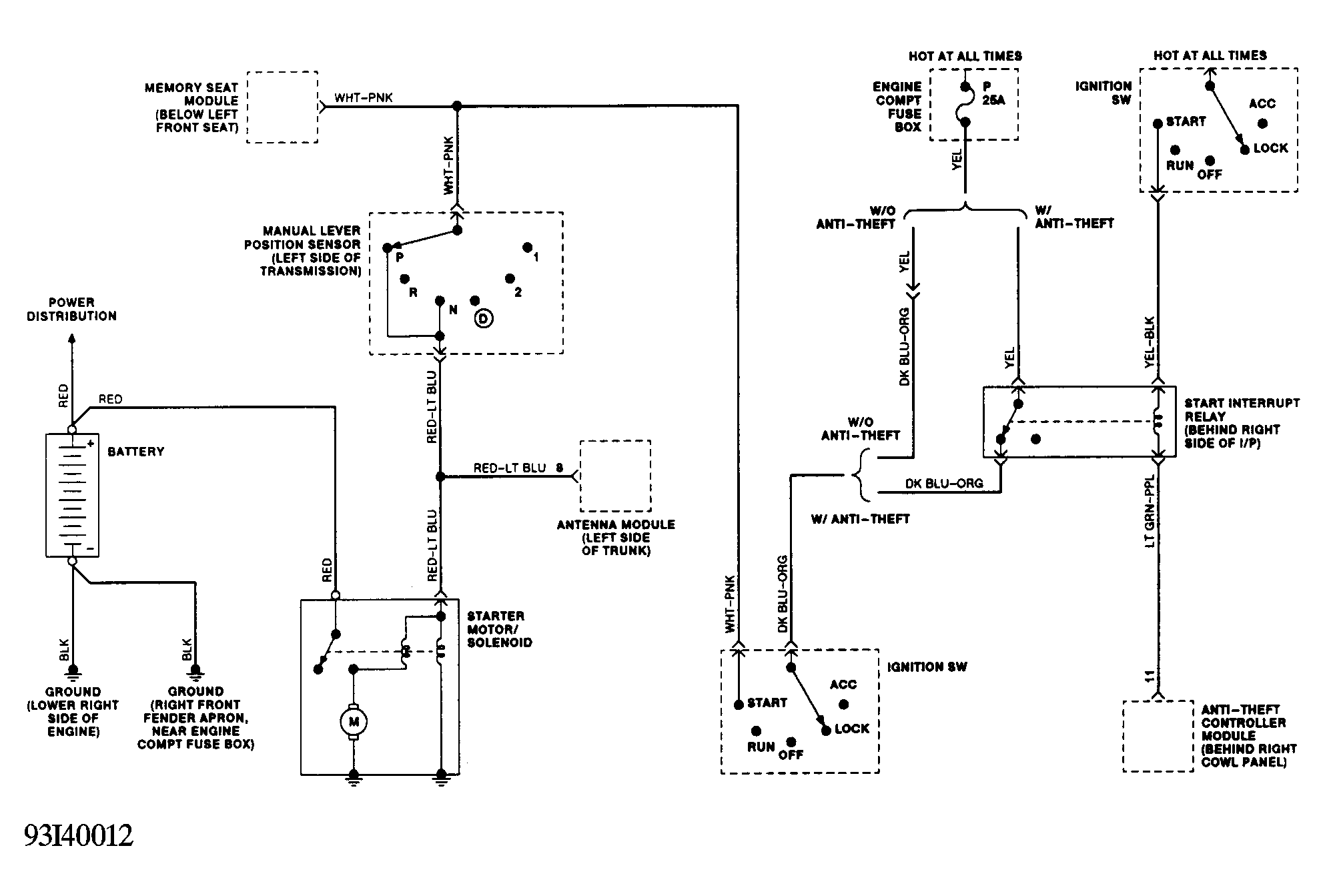

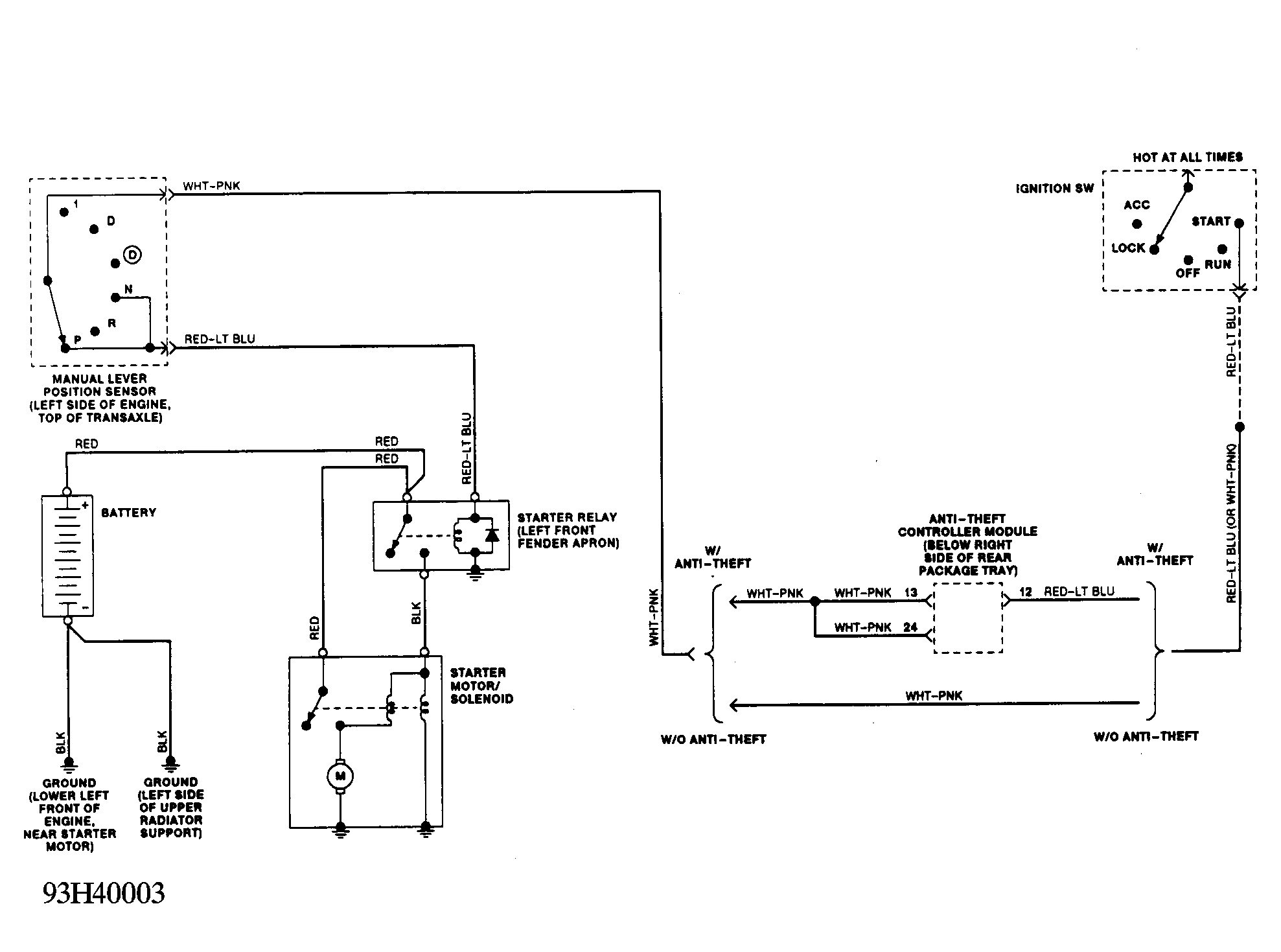

Fig 1: Starter System Wiring Diagram (Continental)

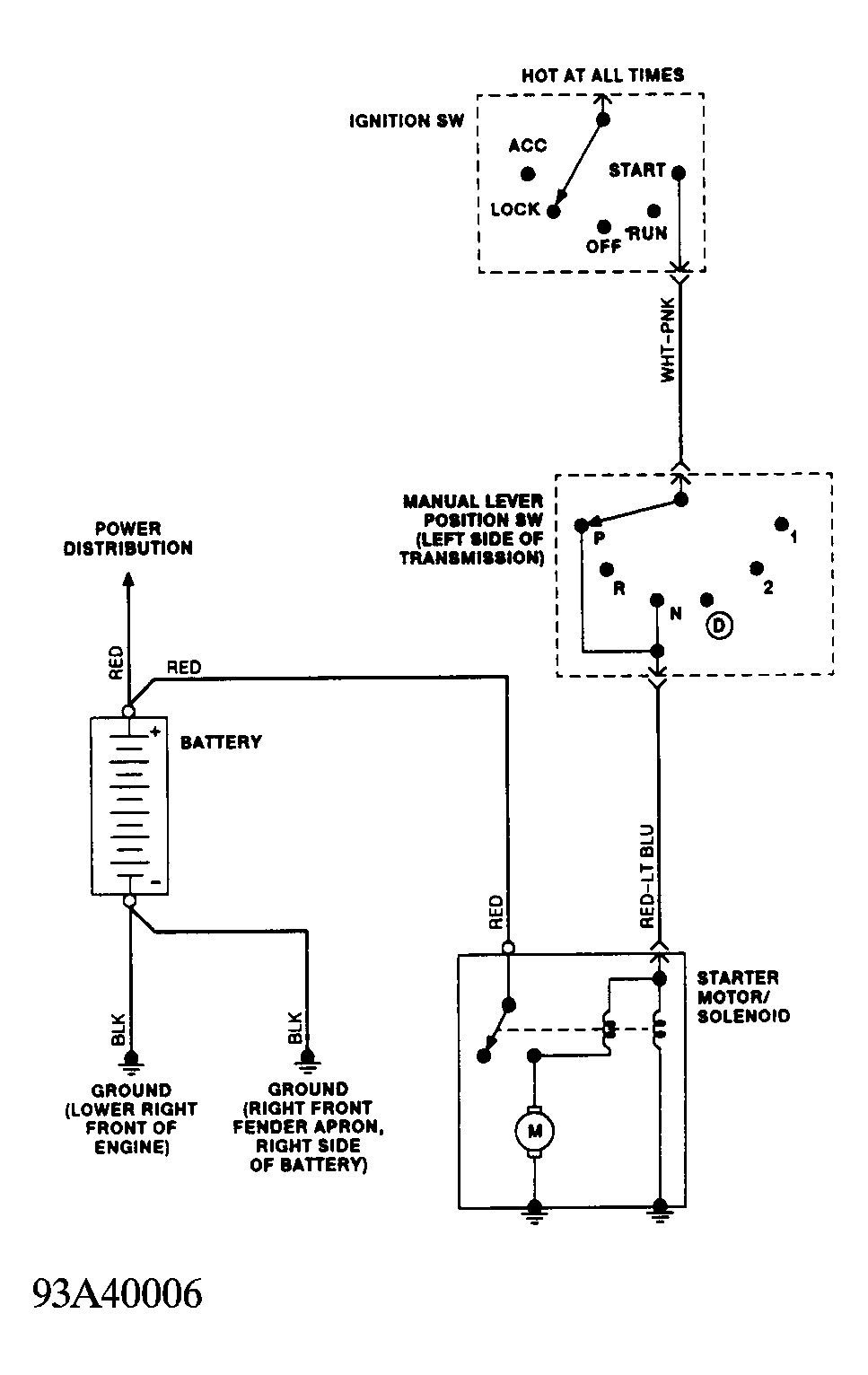

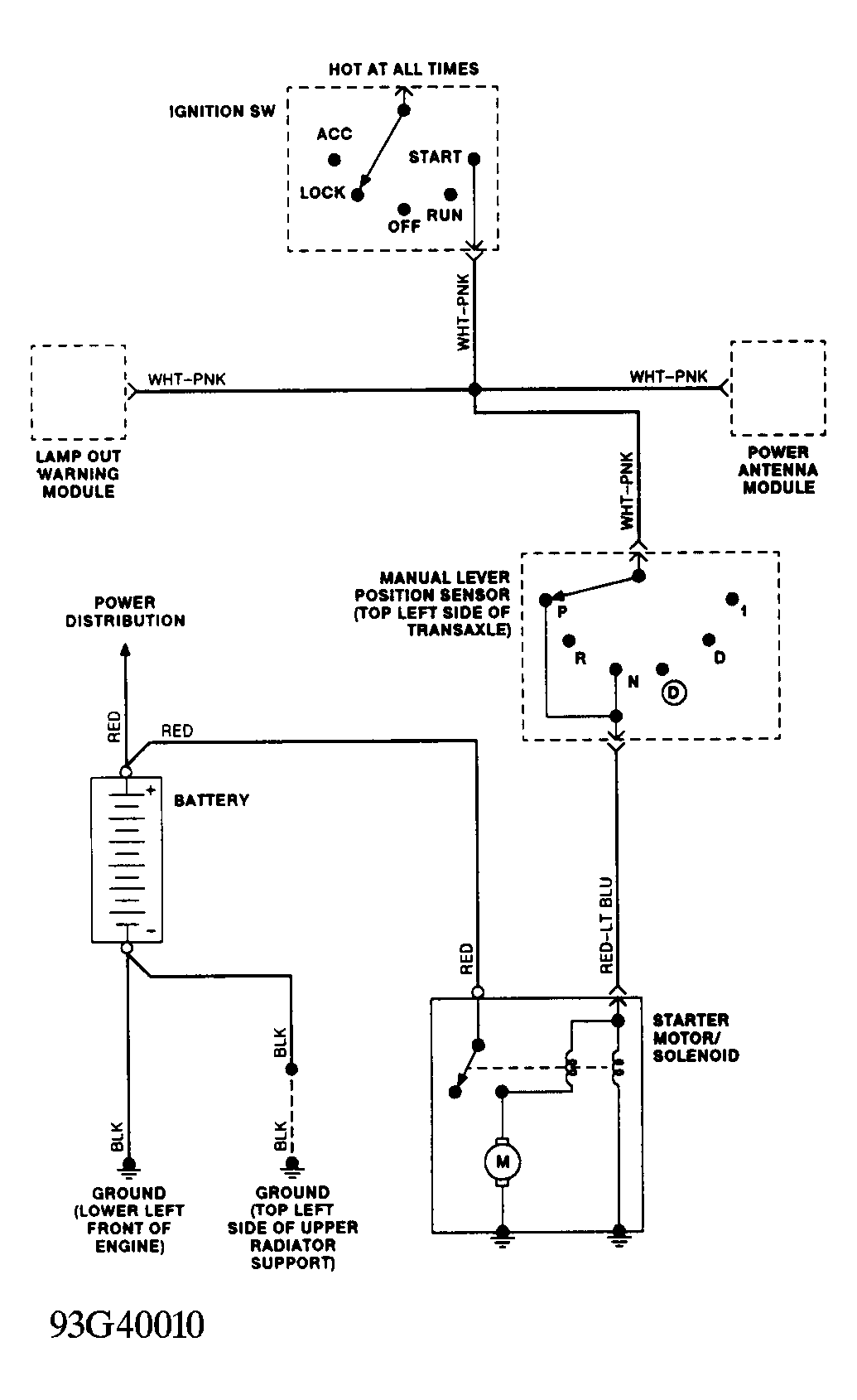

Fig 2: Starter System Wiring Diagram (Cougar & Thunderbird)

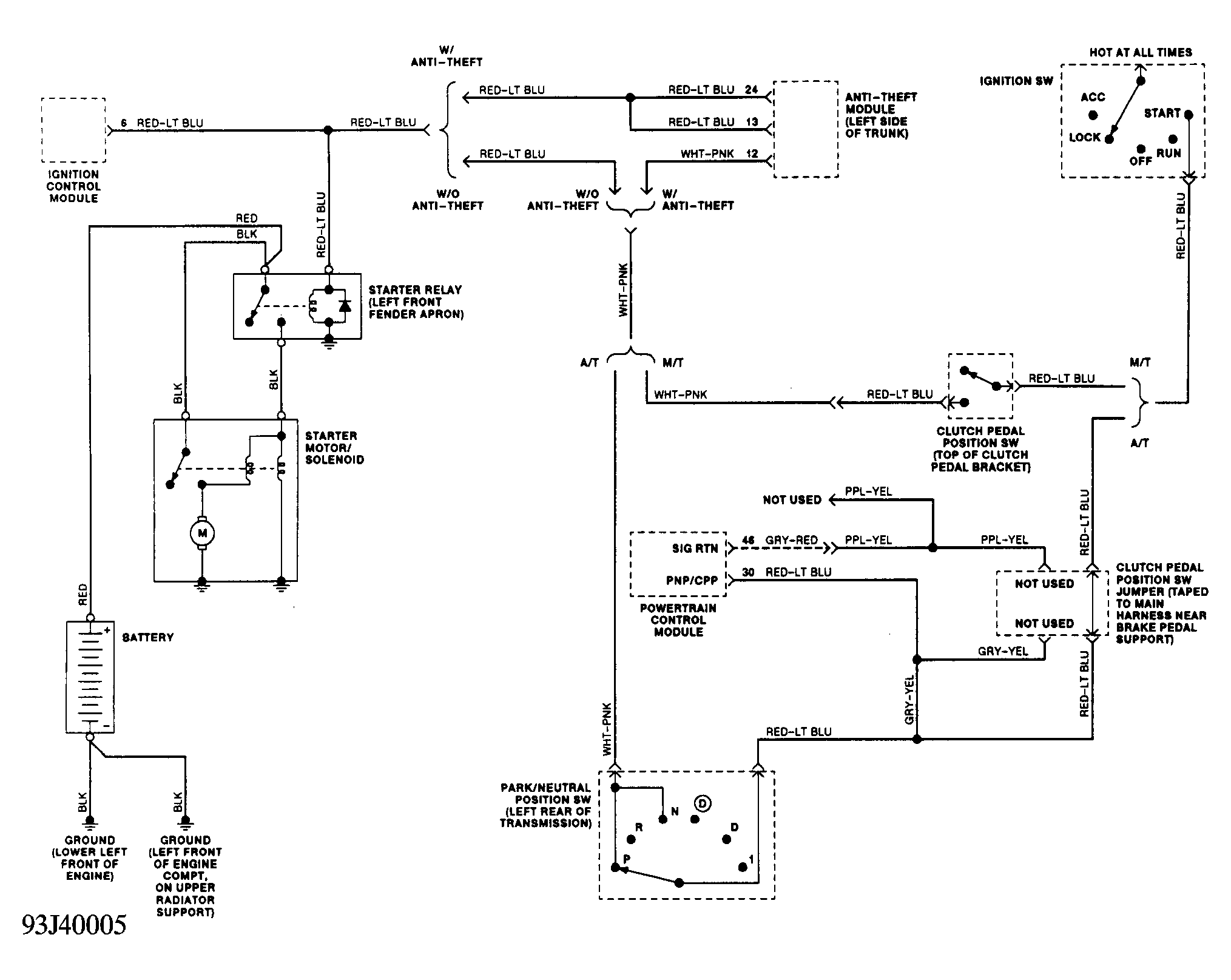

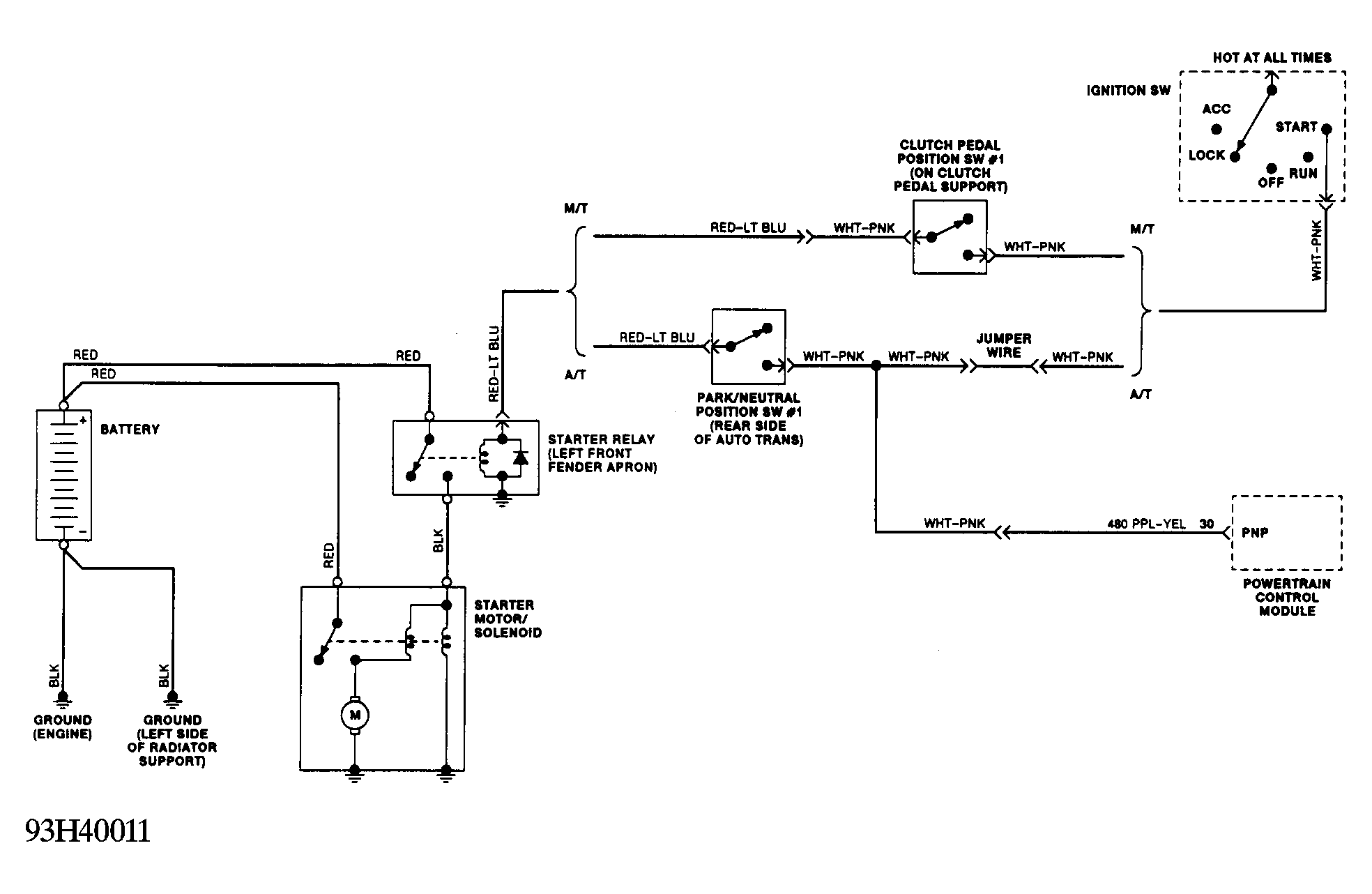

Fig 3: Starter System Wiring Diagram (Taurus SHO)

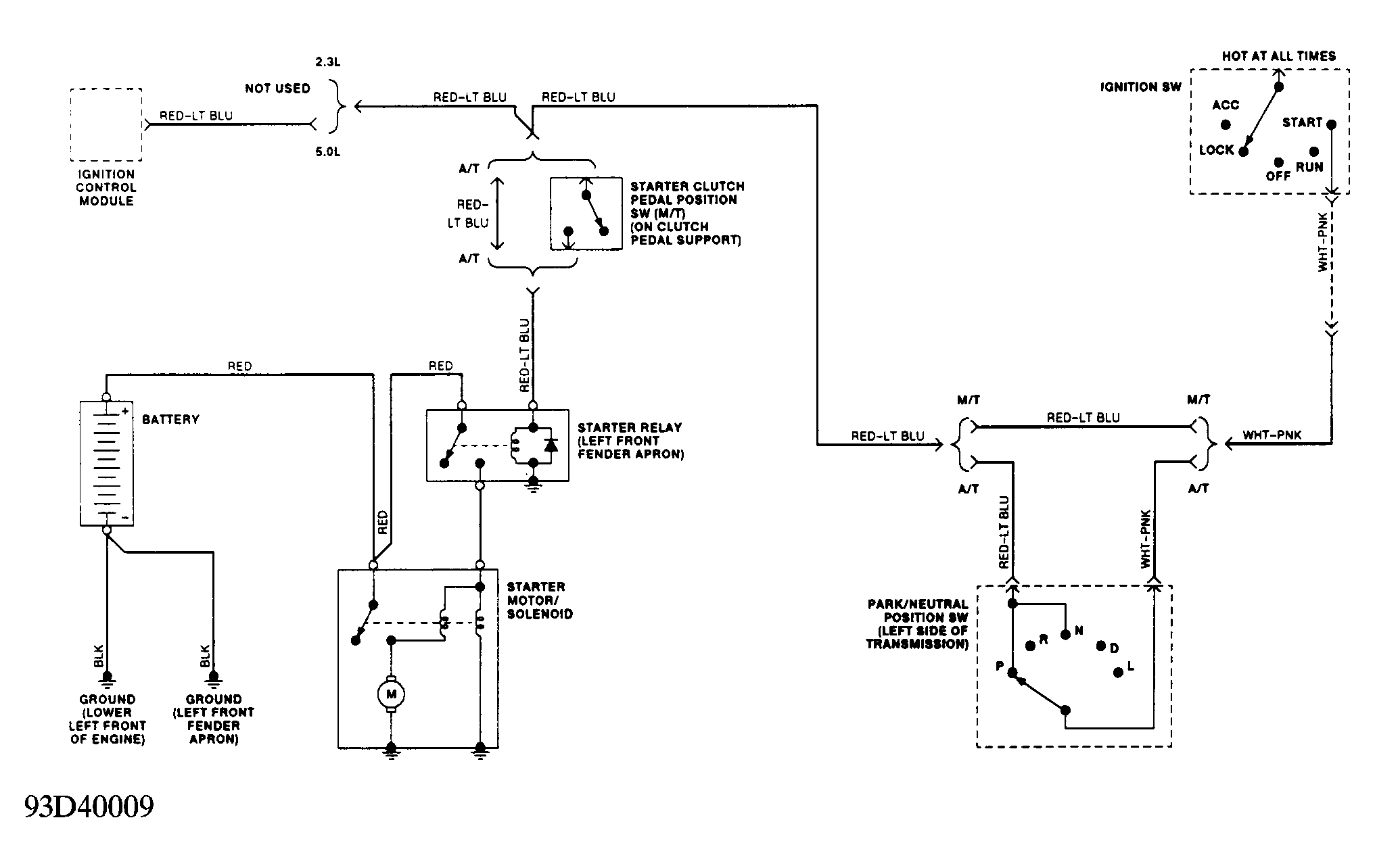

Fig 4: Starter System Wiring Diagram (Sable/Taurus, Exc Taurus SHO)

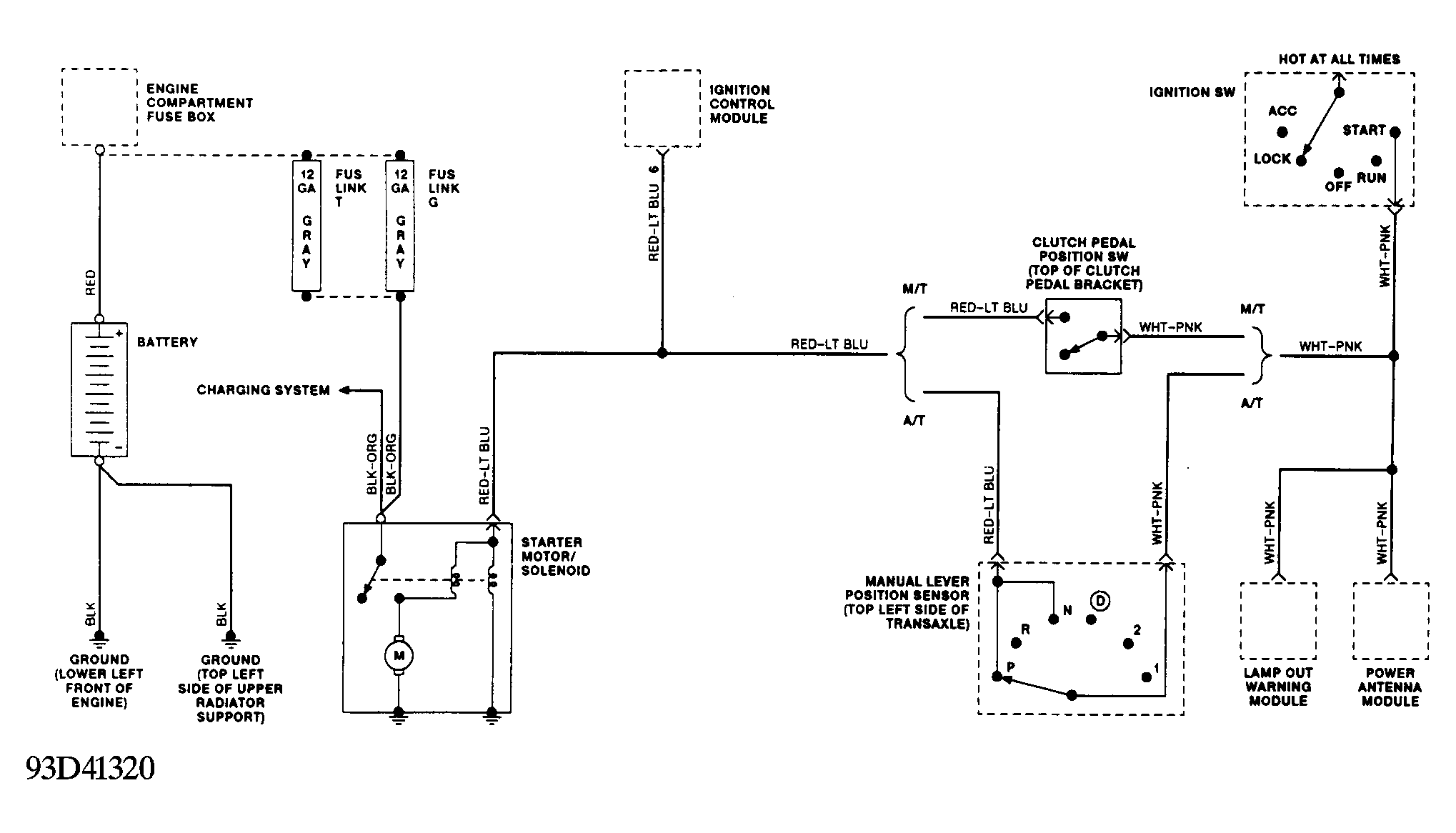

Fig 5: Starter System Wiring Diagram (Crown Victoria & Grand Marquis)

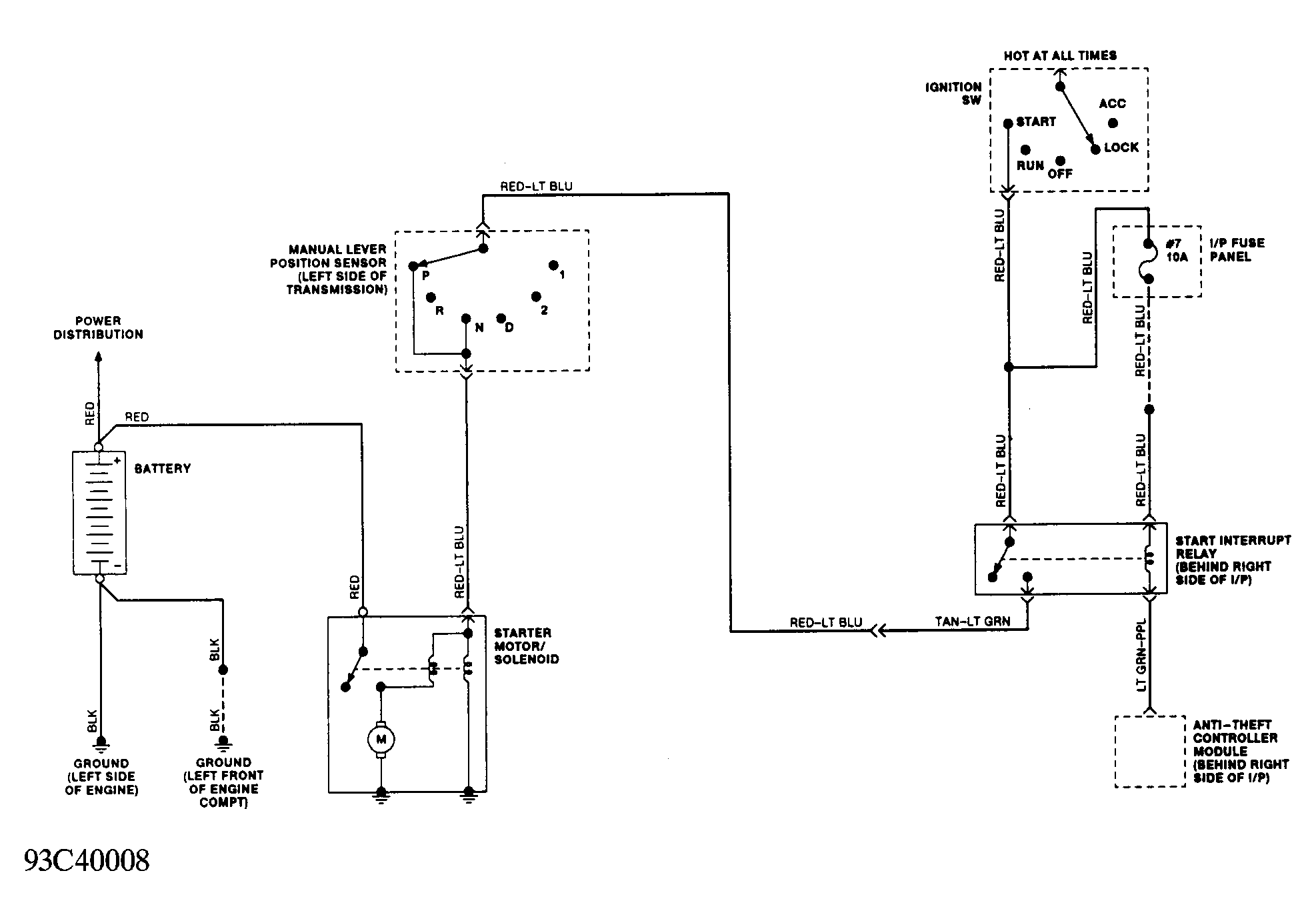

Fig 6: Starter System Wiring Diagram (Thunderbird SC)

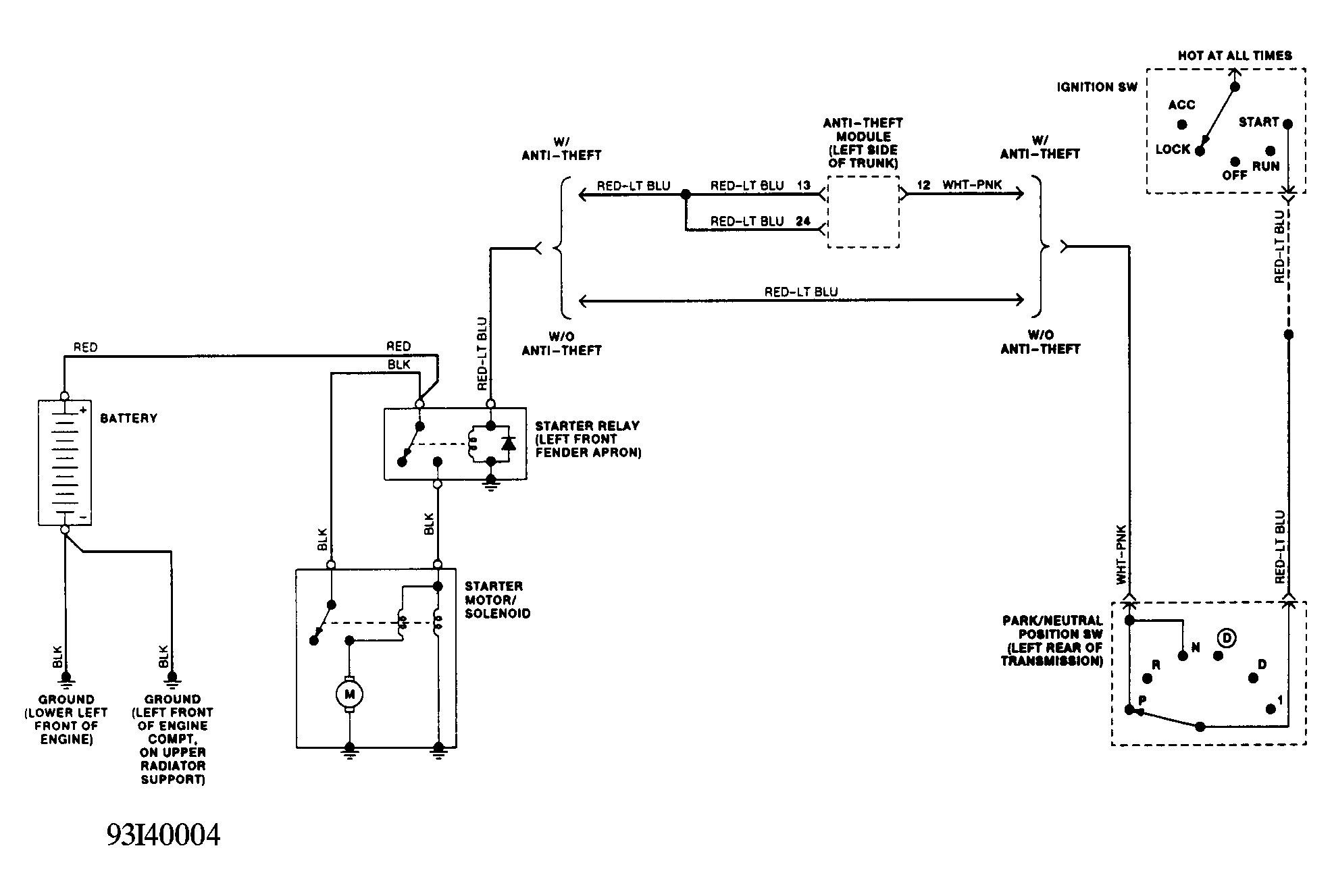

Fig 7: Starter System Wiring Diagram (Mark VIII)

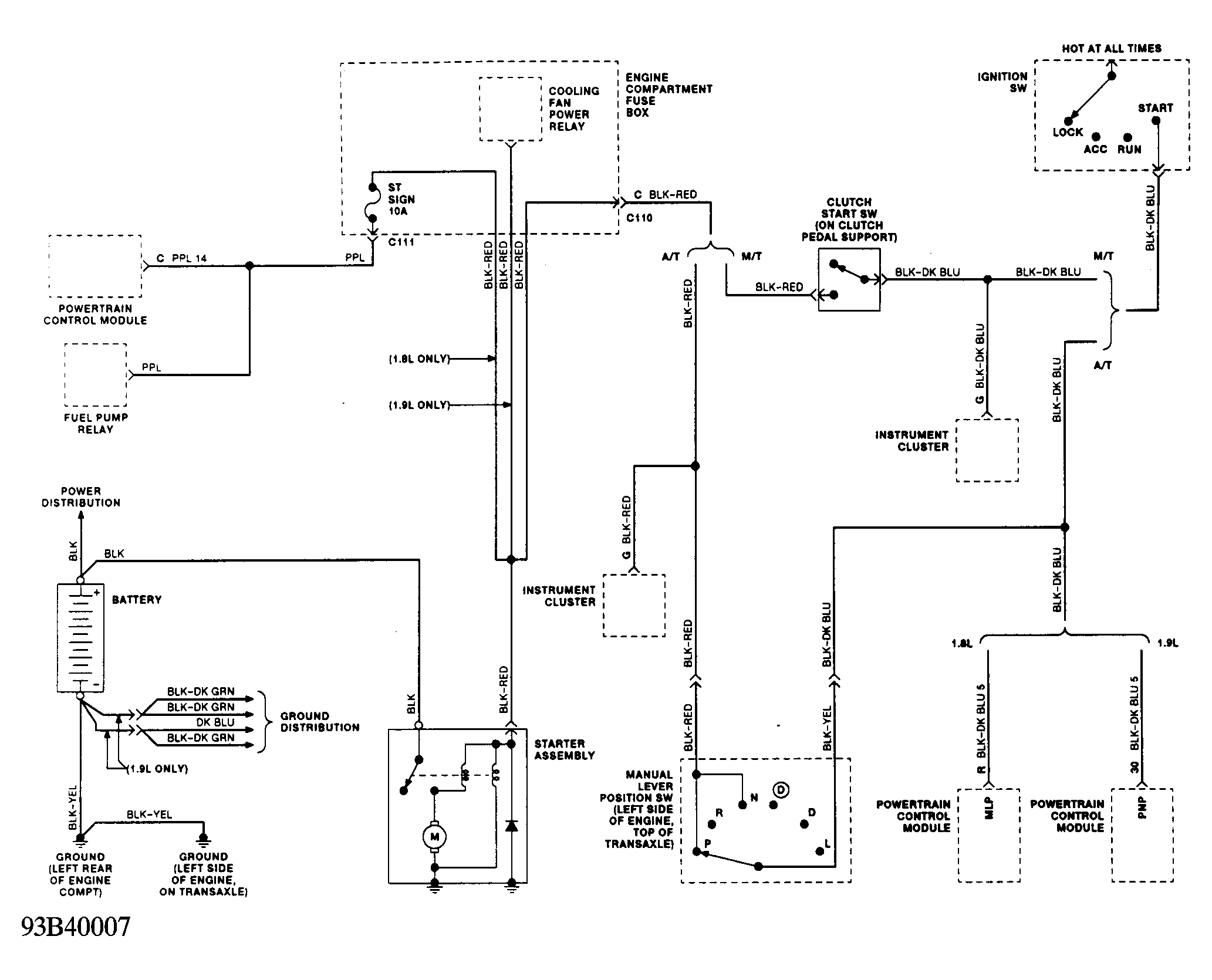

Fig 8: Starter System Wiring Diagram (Escort & Tracer)

Fig 9: Starter System Wiring Diagram (Mustang)

Fig 10: Starter System Wiring Diagram (Tempo & Topaz)

Fig 11: Starter System Wiring Diagram (Town Car)
