Engine Controls - Tests W/Codes - 2.3L
>>
Diagnostic Trouble Code Reference Charts
>>
Diagnostic Trouble Code (DTC) Reference Charts (2-Digit)
Diagnostic Trouble Code (DTC) Reference Charts (2-Digit)

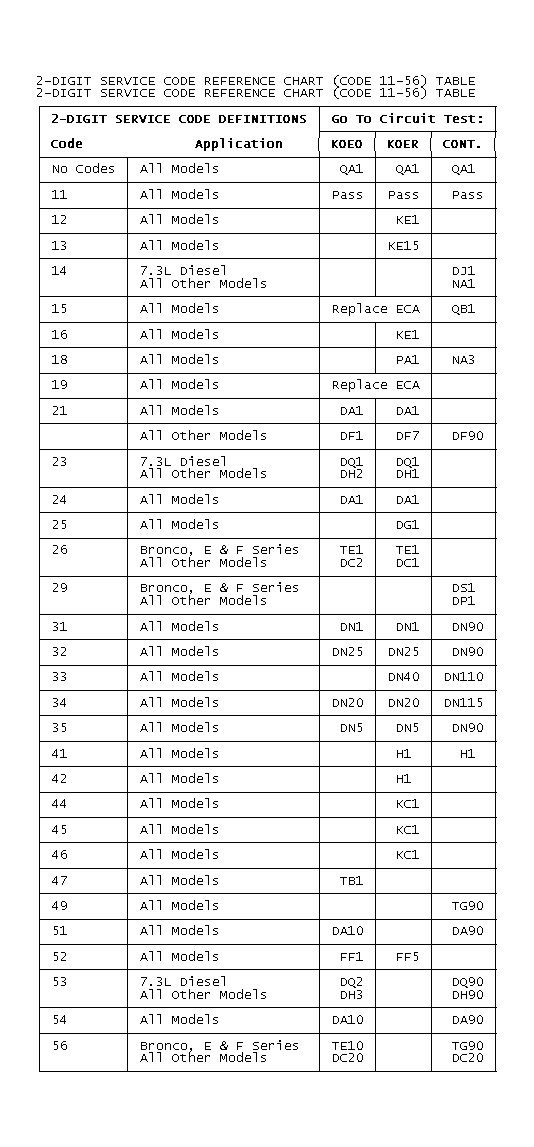

Fig 1: DIAGNOSTIC TROUBLE CODE (DTC) REFERENCE CHART (CODE 11-56) TABLE

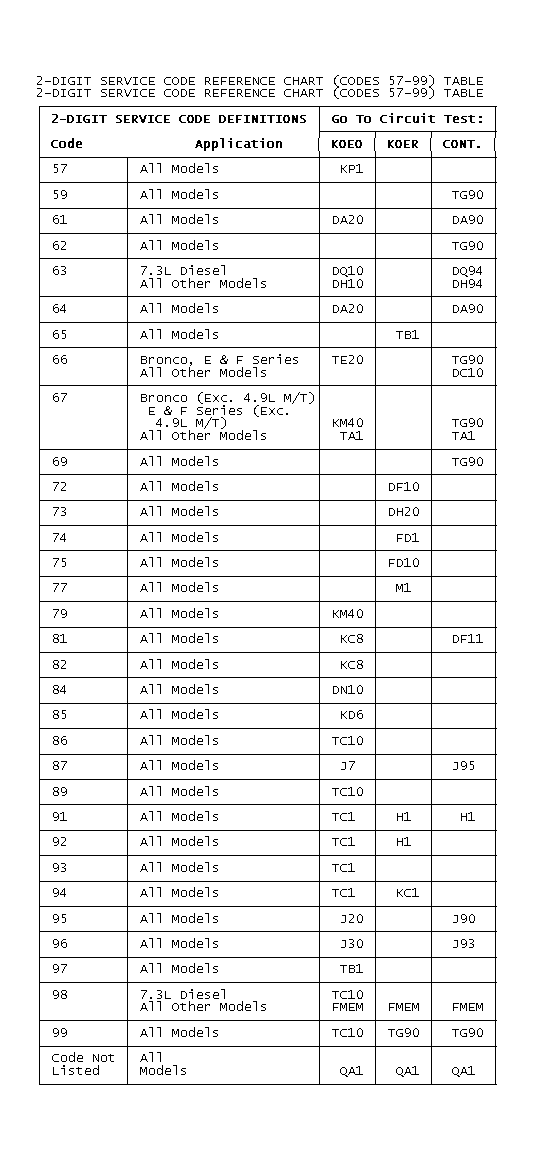

Fig 2: DIAGNOSTIC TROUBLE CODE (DTC) REFERENCE CHART (CODES 57-99)
