Component Locations

COMPONENT LOCATIONS

Component Location
Left Hand Power Window Motor In Left Door
Right Hand Power Window Motor In Right Door

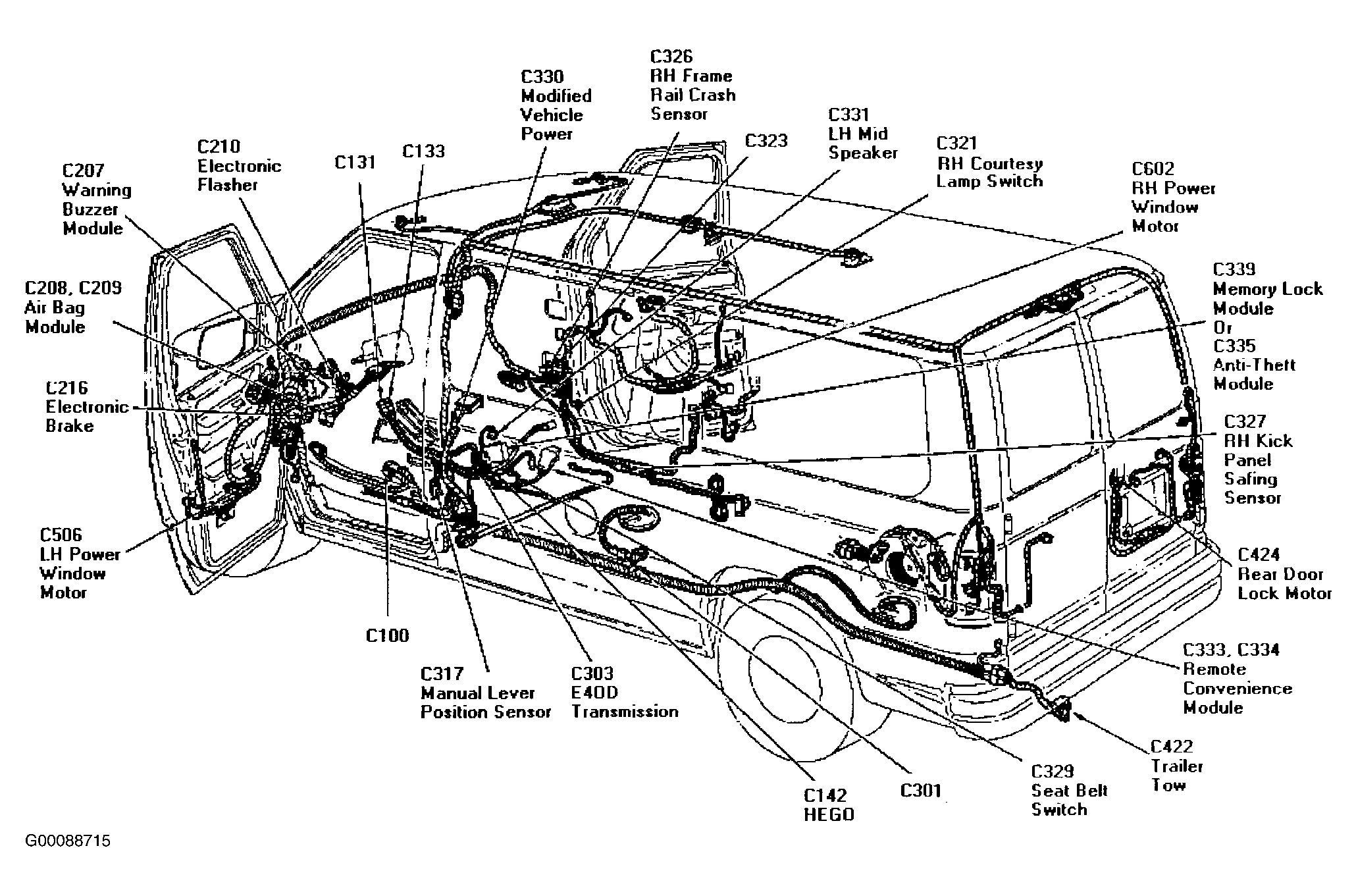

Fig 1: Exploded View Of Component Locations (Econoline)
G00088715Courtesy of FORD MOTOR CO.
