Connector Identification

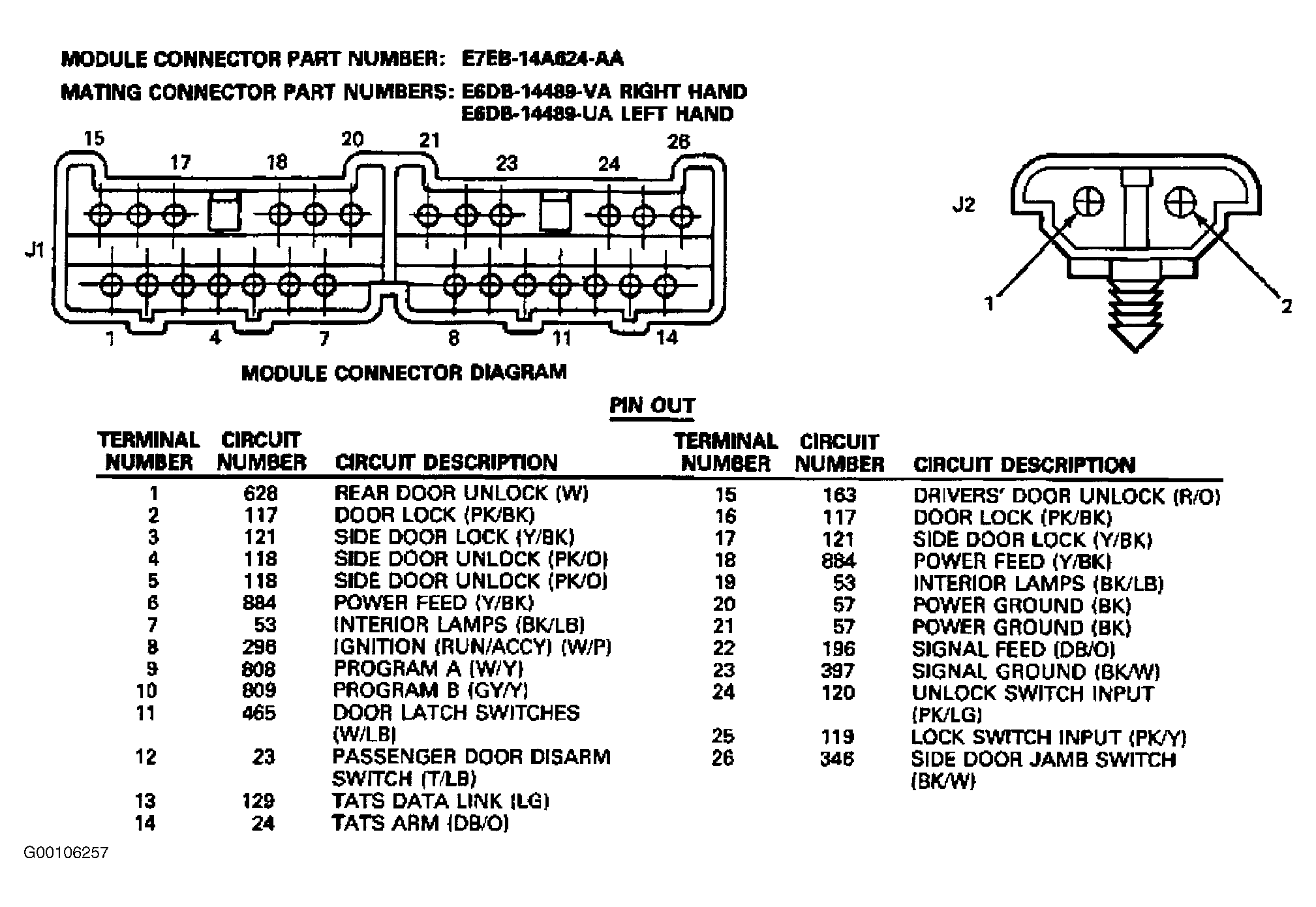

Fig 1: Identifying Remote Convenience Module Connector Terminals
G00106257Courtesy of FORD MOTOR CO.
