Description & Operation

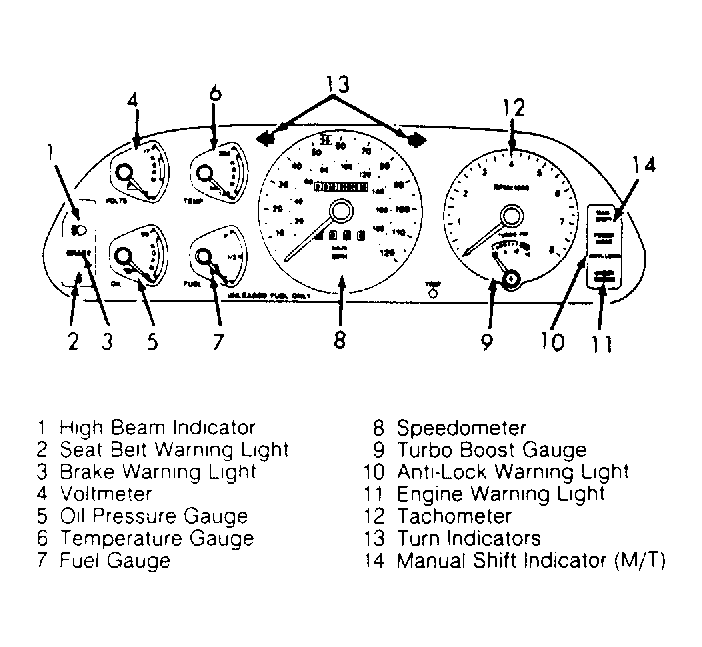

The instrument panel includes analog gauges which display system voltage, oil pressure, coolant temperature and fuel level. See Fig 1 . A turbo boost gauge displays manifold pressure. The speedometer includes an odometer and trip odometer. A tachometer displays engine speed from zero to 8000 RPM. Light, turn signal and wiper switches are also mounted on the instrument panel.
