Wiring Diagrams

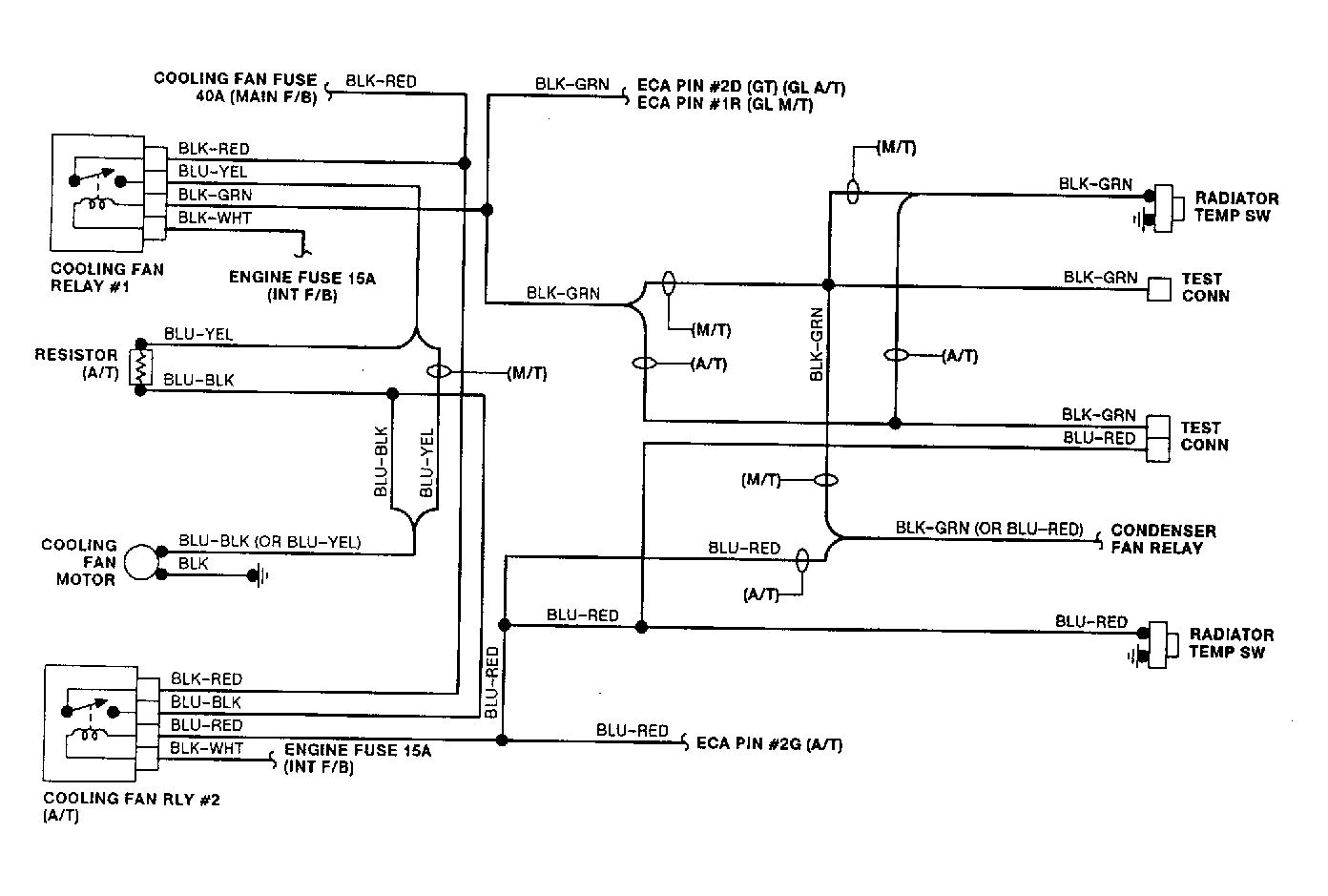

Fig 1: Electric Cooling Fan Schematic (Probe 2.2L)

G92D04373

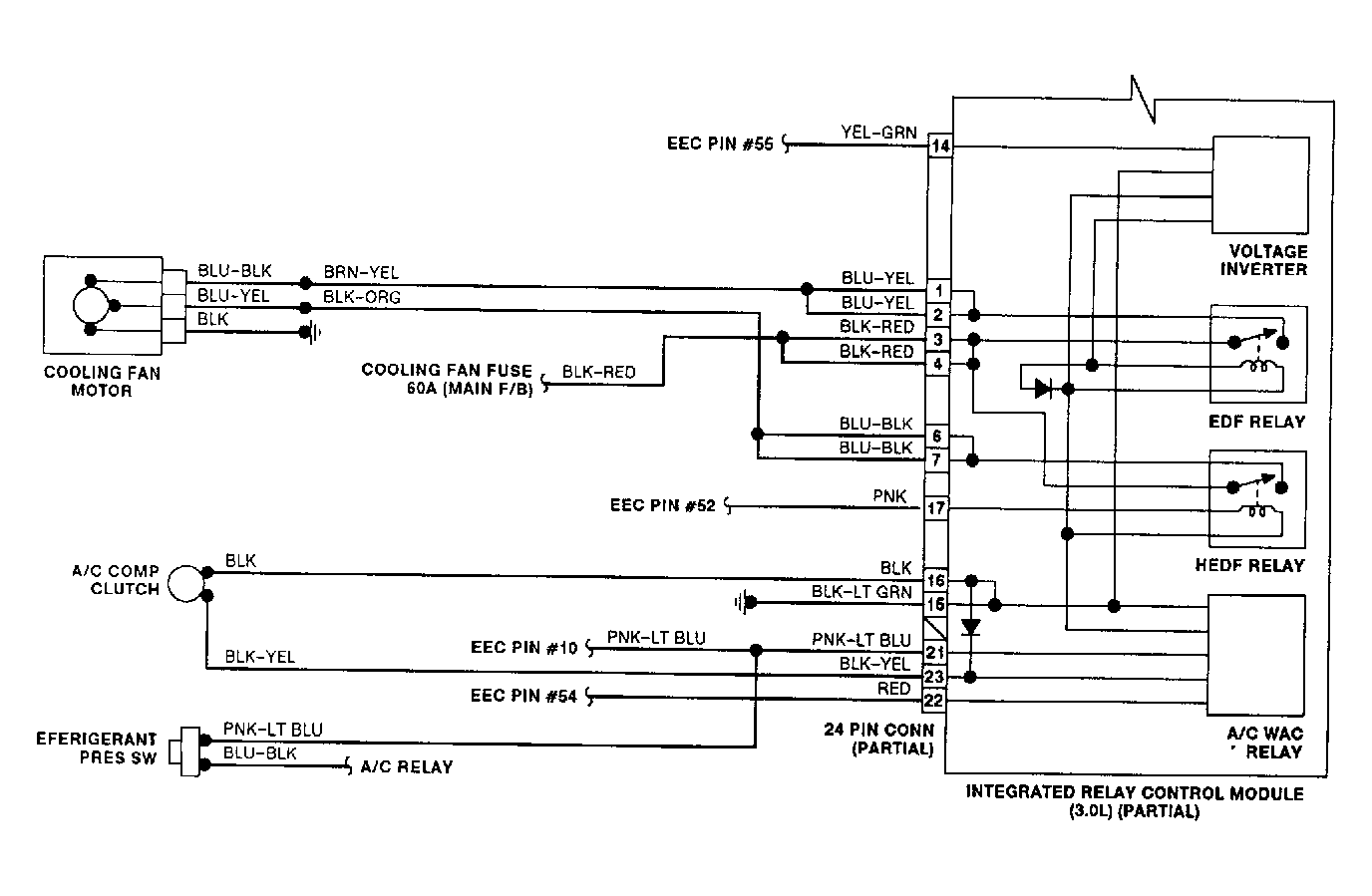

Fig 2: Electric Cooling Fan Schematic (Probe 3.0L)

G92F04374
