Wiring Diagrams

NOTE: Due to the size and complexity of the Wiring Diagrams it is recommended that the Diagram be printed.

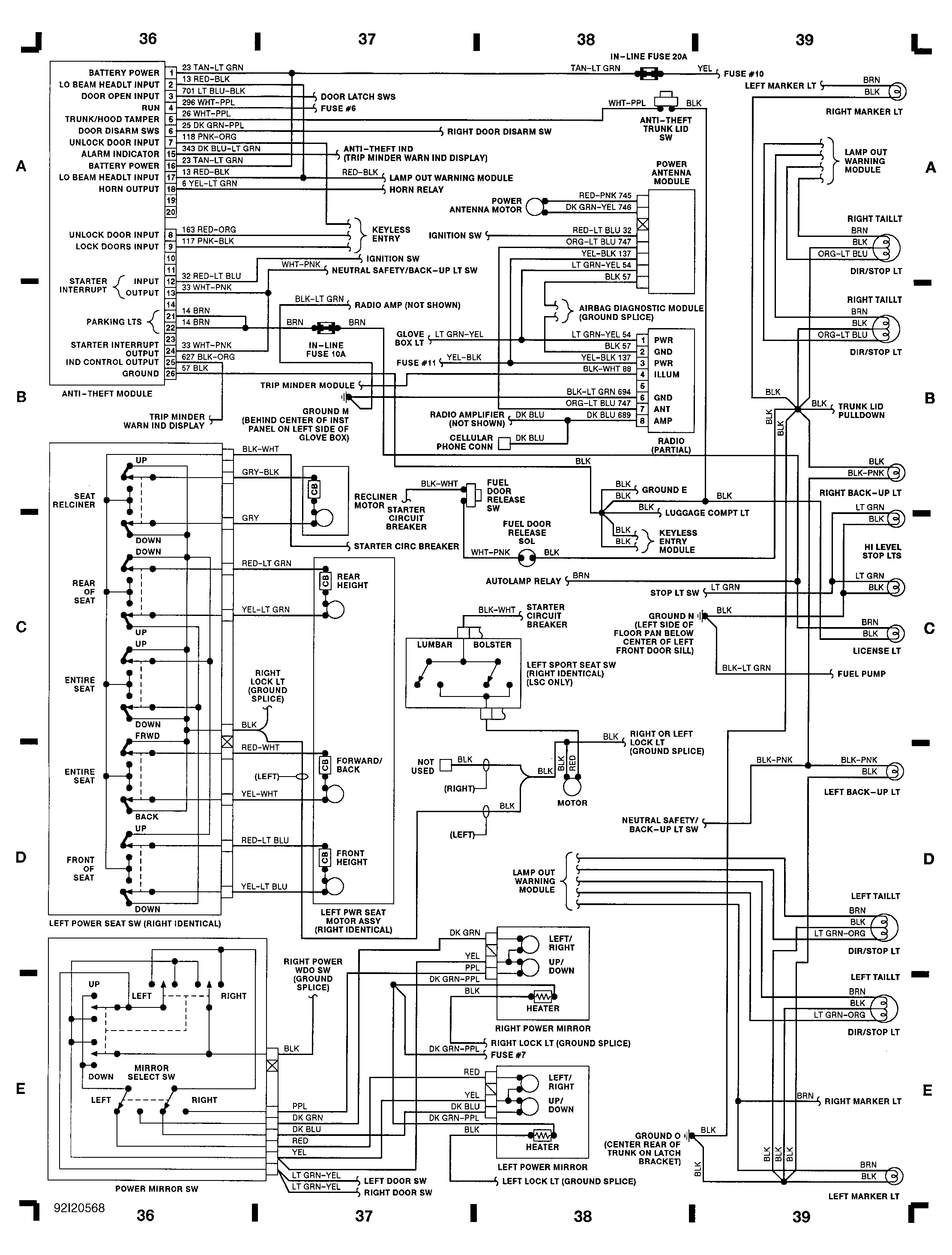

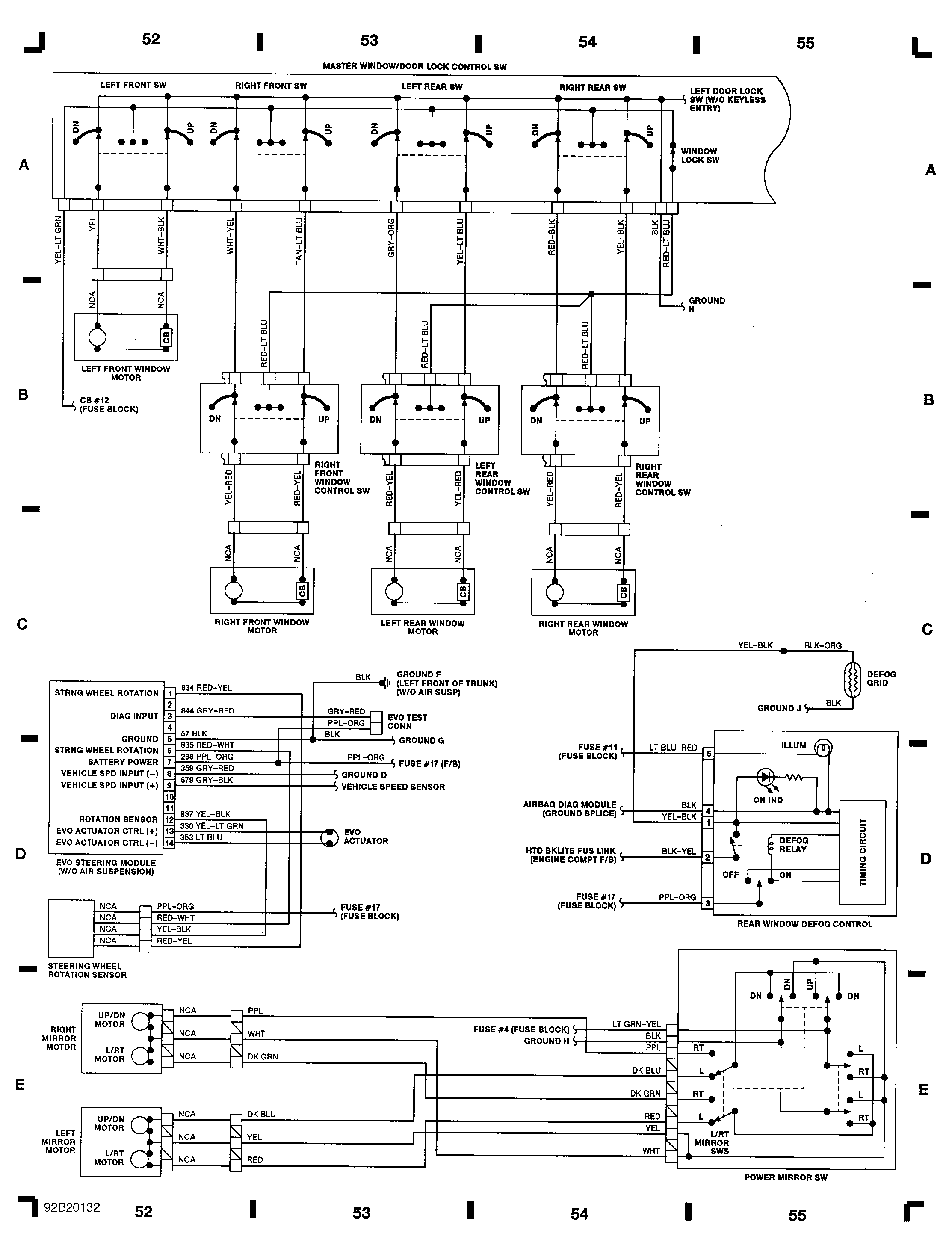

Fig 1: Power Mirror Switch - Continental (Grid E 44-47)

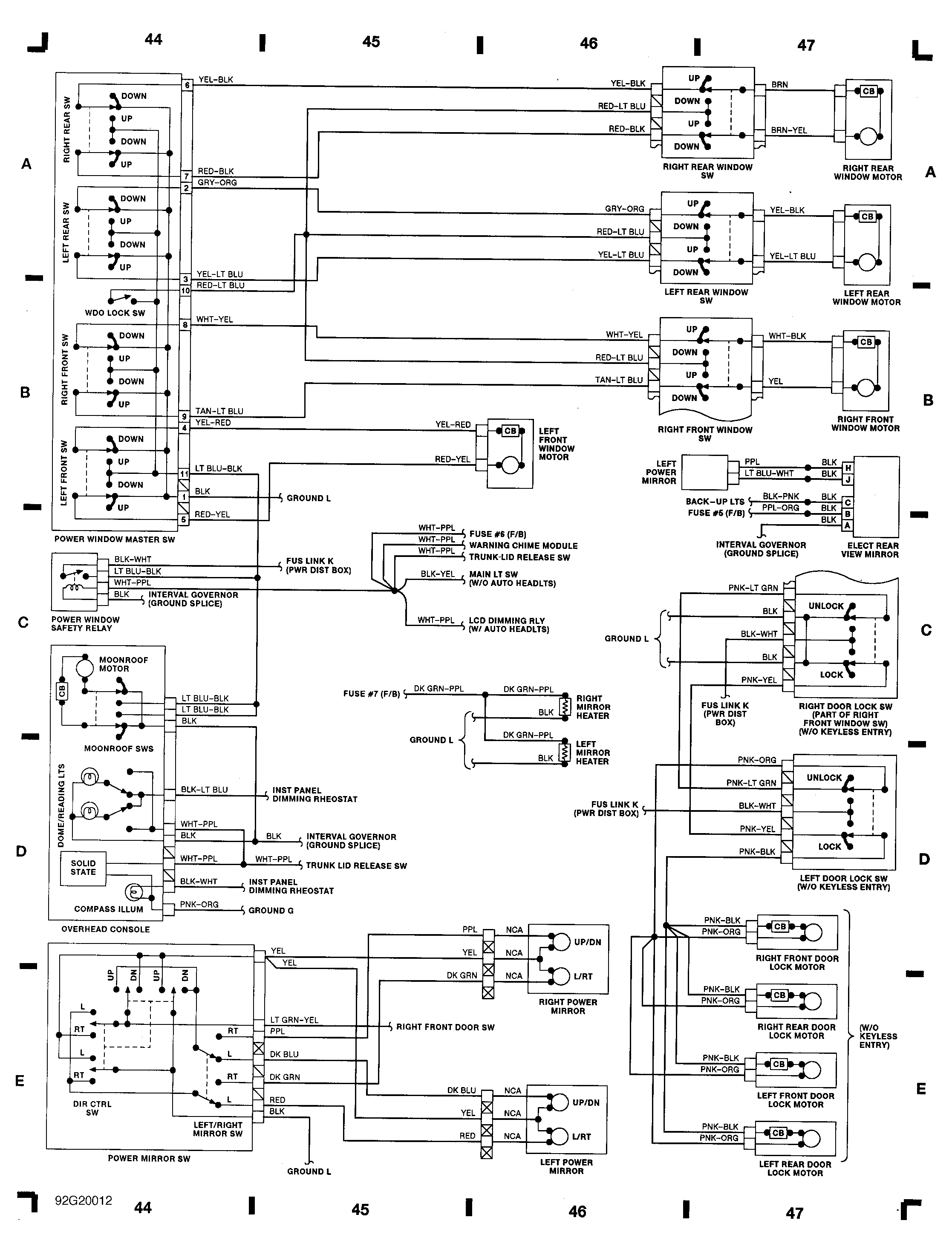

Fig 2: Power Mirror Switch - Cougar & Thunderbird (Grid E 60-63)

Fig 3: Power Mirror Switch - Crown Victoria & Grand Marquis (Grid E 52-55)

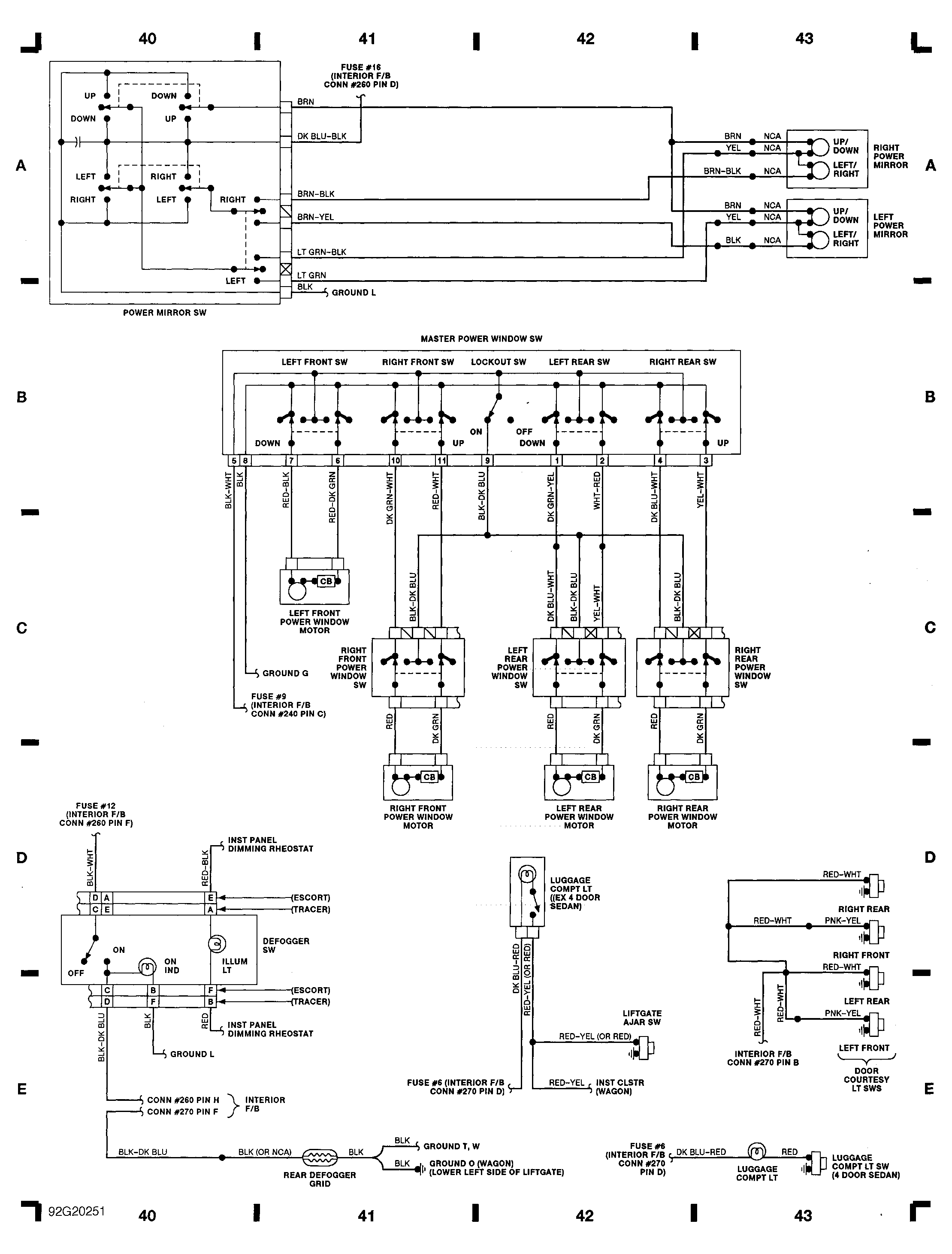

Fig 4: Power Mirror Switch - Escort & Trace (Grid A 40-43)

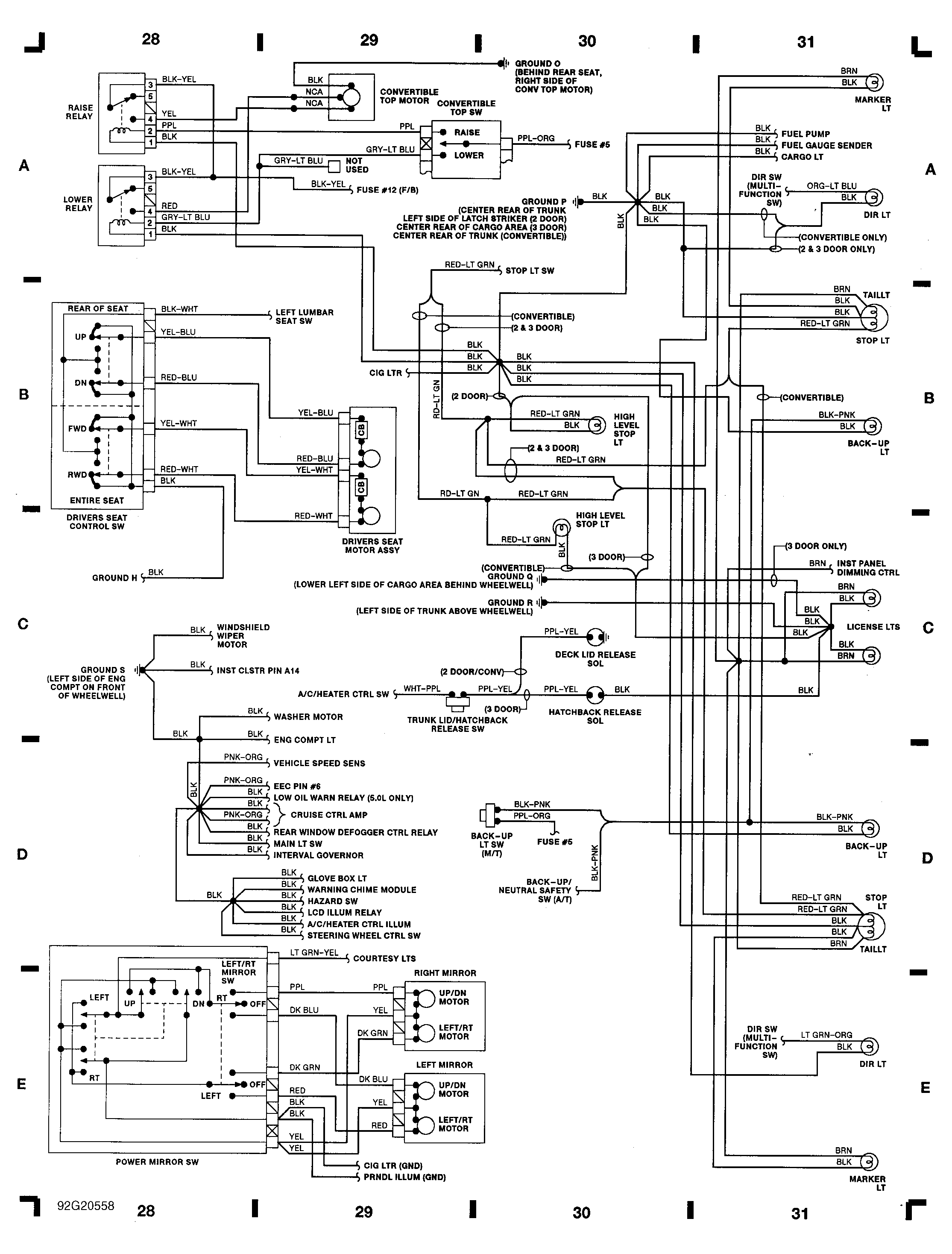

Fig 5: Power Mirror Switch - Mustang (Grid E 28-29)

Fig 6: Power Mirror Switch - Mark VII (Grid E 36-38)

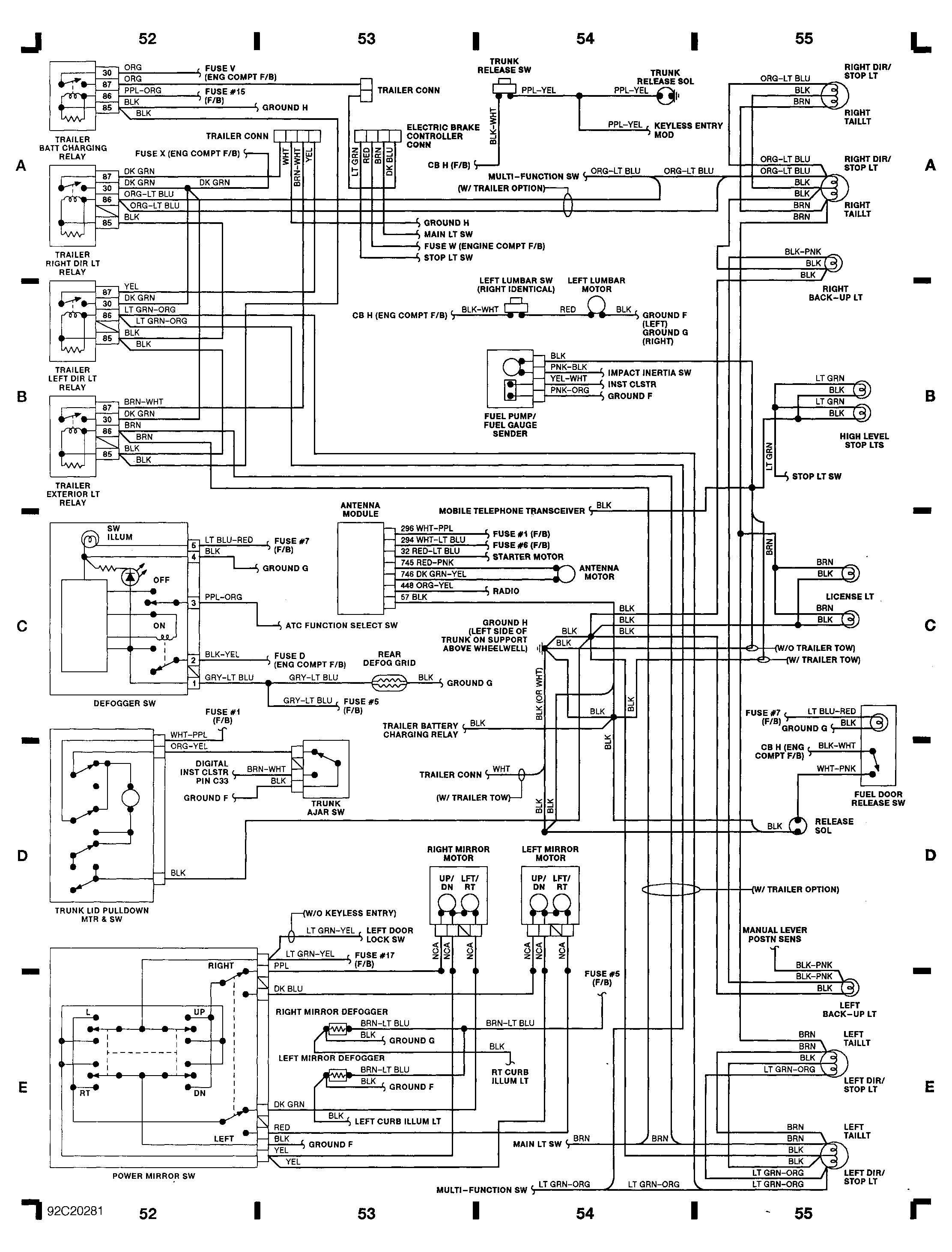

Fig 7: Power Mirror Switch - Probe (Grid E 68-70)

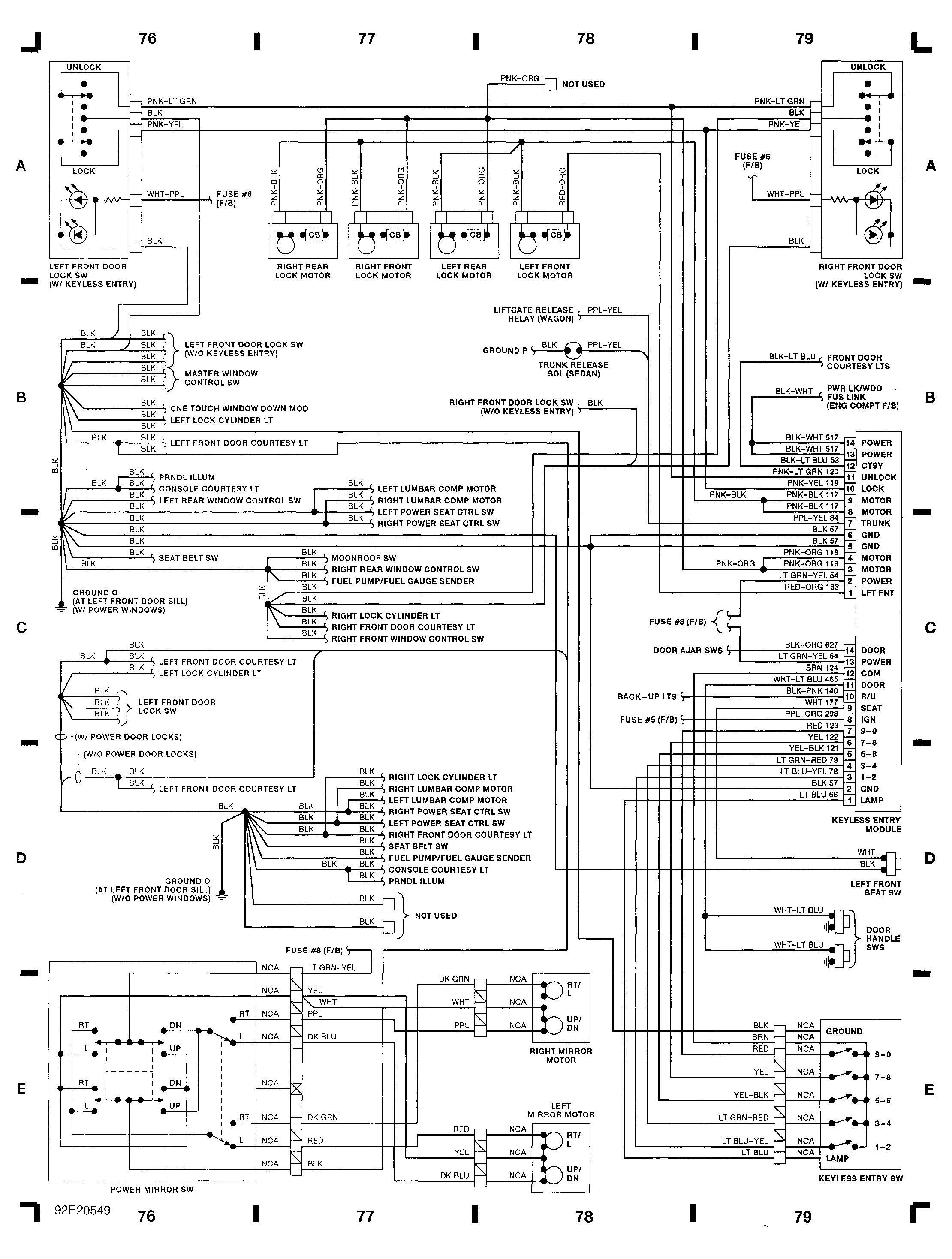

Fig 8: Power Mirror Switch - Sable & Taurus (Grid E 76-78)

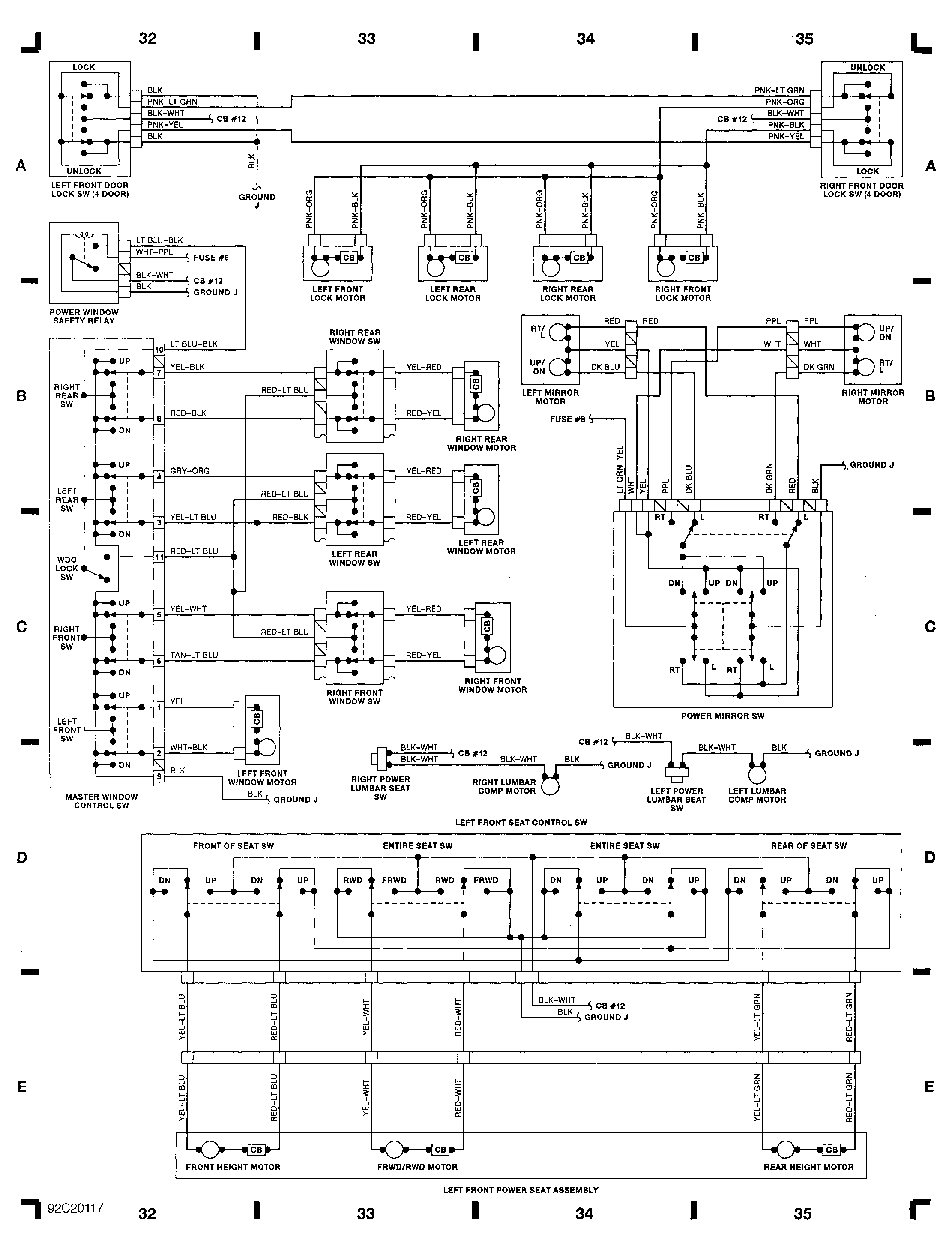

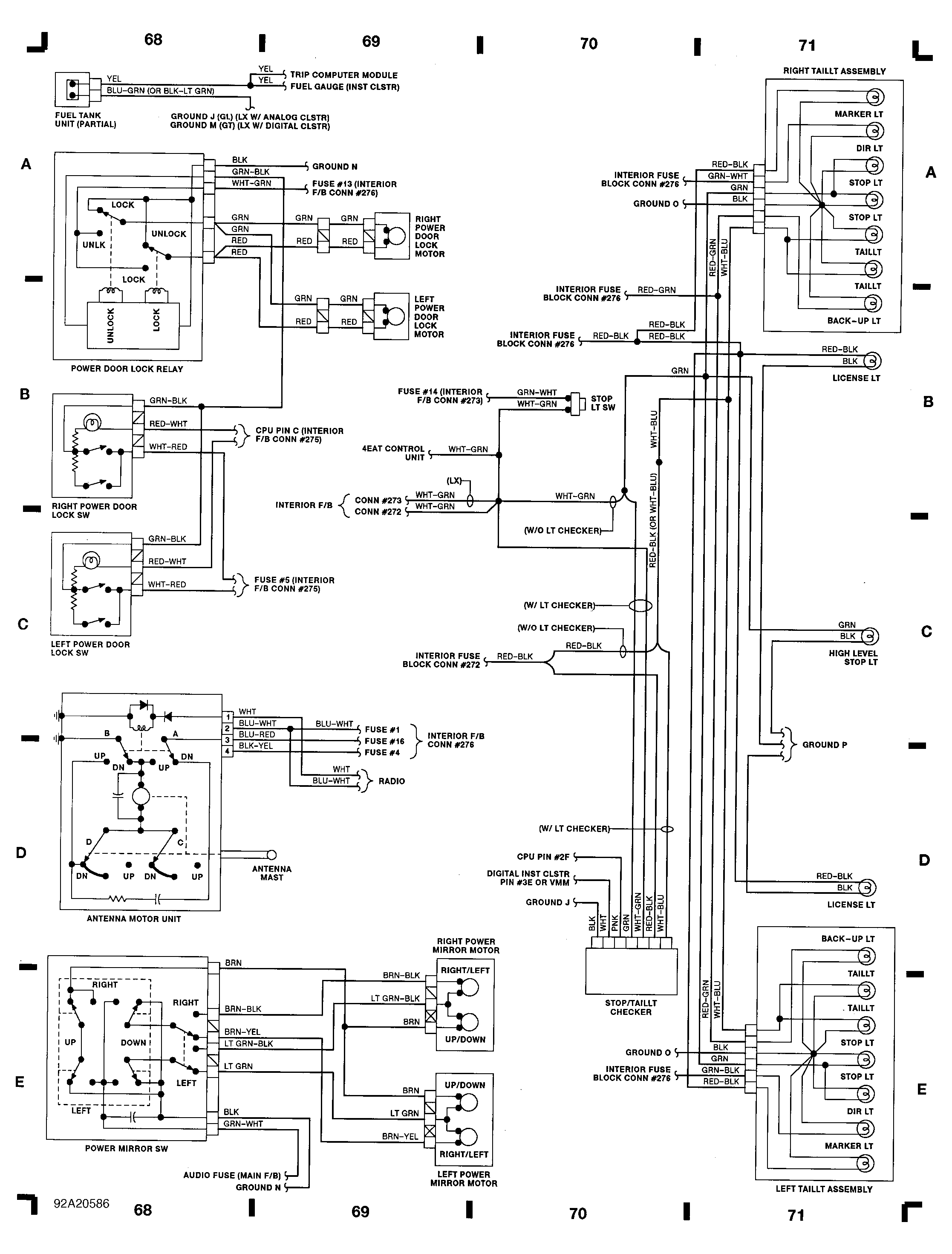

Fig 9: Power Mirror Switch - Tempo & Topaz (Grid B-C 34-35)

Fig 10: Power Mirror Switch - Town Car (Grid D-E 52-54)
