Retractor Hinge

  1. Extend the headlamps and set the rotary switch in the third detent position.
  2. Disconnect the motor link assembly from the retractor hinge. See Fig 1.
  3. Lower the retractor hinge until the hinge is stopped by the rubber stopper. See Fig 2.
  4. Adjust the rubber stopper so that the headlamp lid is flush with the fender and the hood. See Fig 3.

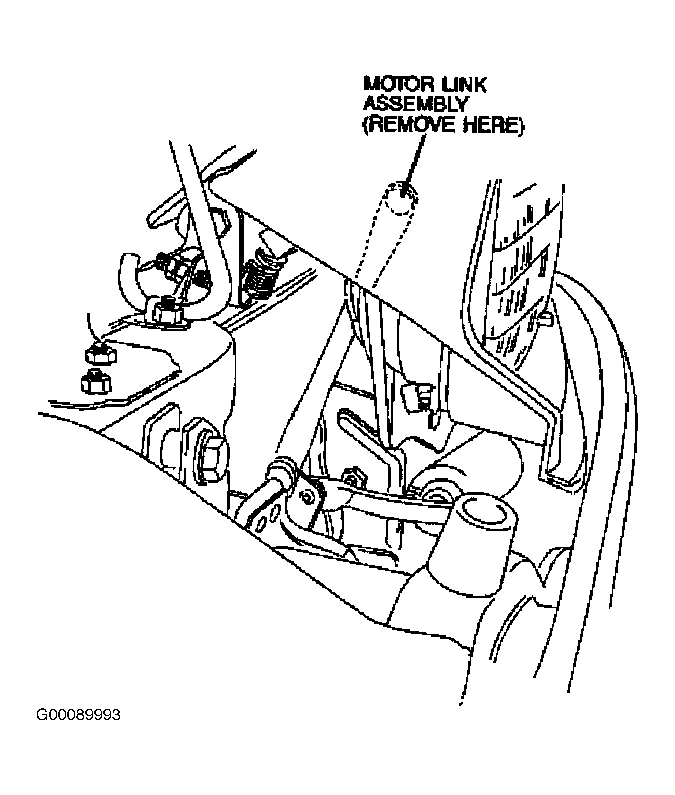

Fig 1: Locating Motor Link Assembly
G00089993Courtesy of FORD MOTOR CO.
Fig 2: Lowering Retractor Hinge
G00089994Courtesy of FORD MOTOR CO.
Fig 3: Adjusting Headlamp Lid
G00089995Courtesy of FORD MOTOR CO.
